FTSK3144DL | Fabtech 5 Inch Radius Arm Kit With 2.25 DLSS (2013-2018 Ram 3500 Pickup 4WD)

2013-2018 Dodge Ram 3500 Pickup 4WD

K3144DL
Pricing: $4,701.74
Qty:
Free Ground Shipping | Exclusions Apply*

Description

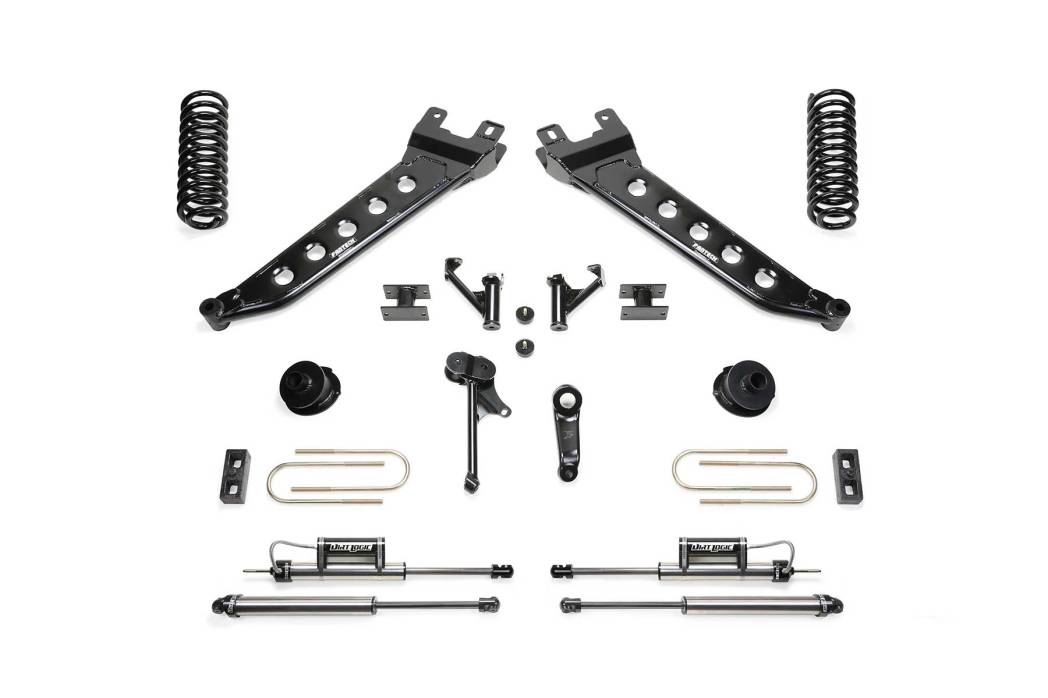

5″ RADIUS ARM SYSTEM W/COIL SPRINGS & DIRT LOGIC SHOCKS – K3144DL

2013-18 RAM 3500 4WD

Fabtech’s new Coil Spring Suspension Systems for late model Ram 3500 trucks will provide a smoother on road ride than factory with the ability to handle heavy loads and rough offroad use.

As an industry exclusive Fabtech utilizes front coil springs with a straight spring design and patent pending angled lower mounts that produces a very smooth ride compared to stock. The factory springs are a high rate bowed style that naturally rides stiff with an overactive response to varying road conditions. Fabtech’s straight design has a lower spring rate that provides a smoother ride yet still retains the factory carrying capacity of the vehicle when required. No other Ram suspension system can offer this.

Fabtech’s front straight coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

FEATURES

  • Front Straight Coil Springs
  • Front Angled Spring Mounts
  • Fabtech Radius Arms
  • Front & Rear Steel Bump Stop Extensions
  • Front Track Bar Bracket
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS23090 COMPONENT BOX 1
1 FTS23097 COMPONENT BOX 2 W/ DIRT LOGIC SS SHOCKS

FOOTNOTES

3. Non-dually models only.
42. Will not fit gas motors.
130. Will not fit factory air suspension.

Application List

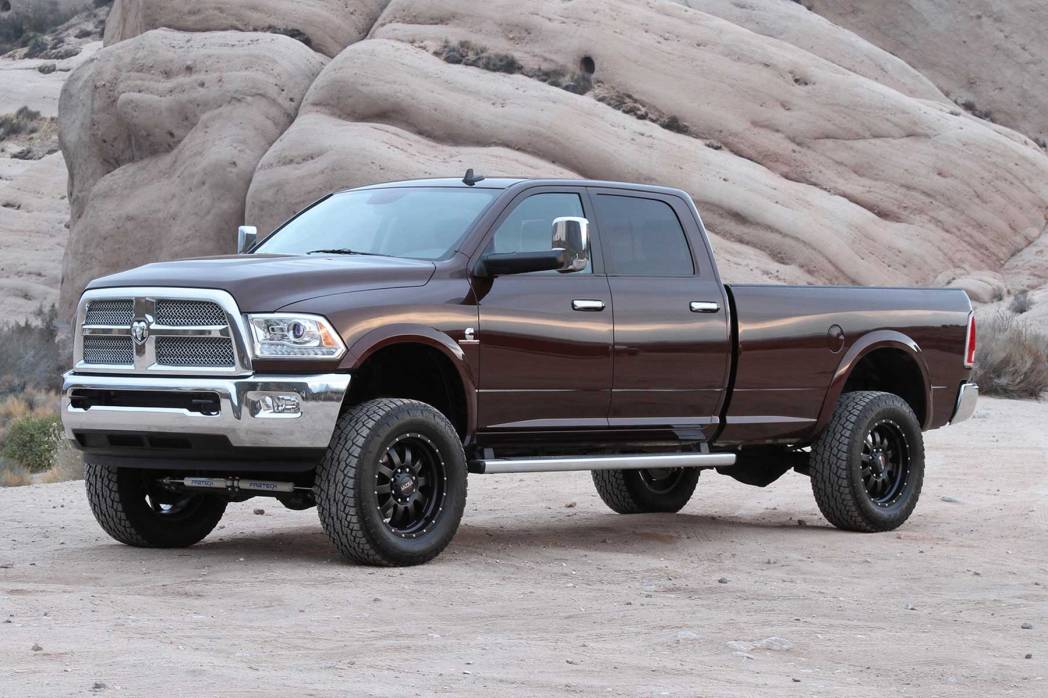

2013-2018 Dodge Ram 3500 Pickup 4WD

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 5in BS w/minor trimming
Tire Size – 37/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 214.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
