FTSK3170DL | Fabtech 3 Inch BJ UCA System With Dirt Logic 2.5 Resi and 2.25 (2019-2023 Ram 1500 Pickup 2WD/4WD New Body)

2019-2023 Dodge Ram 1500 Pickup 2WD/4WD | New Body Style

K3170DL
Pricing: $4,741.87
Qty:
Free Ground Shipping | Exclusions Apply*

Description

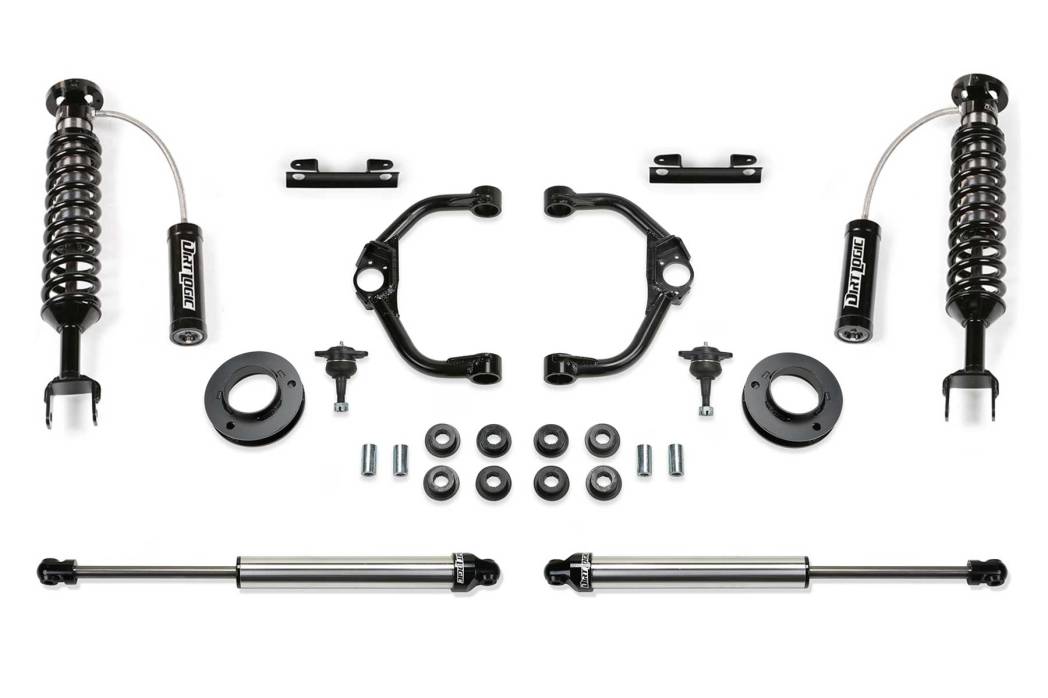

3″ BALL JOINT UCA LIFT KIT W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K3170DL

2019-23 RAM 1500 2WD/4WD | RAM 1500 REBEL 2WD/4WD

This 3" Ram lift kit has been designed to provide a superior ride quality with clearance to run 35" tires for both on and offroad use. The mild lift height is subtle yet gives the vehicle a commanding stance without over doing it.

Fabtech engineers took considerable time to cycle and test the 3" lift with their heavy duty ball joint upper control arms. There is no bind throughout the suspension travel and steering operation. The steering will go full lock to lock without any loss of the turning radius.

The factory Ram upper control arm is made of plastic with a light duty ball joint. Fabtech’s Upper Control Arms are constructed of tubular steel with large robust ball joints that provide strength to the suspension. These Fabtech upper control arms are a substantial upgrade for aggressive offroad use.

Dirt Logic 2.50 Coilover shocks replace the factory shocks for 3" of lift with outstanding damping capacity for offroad use. They are constructed with a stainless steel body and a NitroSteel® piston rod for maximum corrosion resistance and durability.

The rear suspension receives a coil spring spacer to lift the vehicle. This helps keep the vehicle’s factory stance without effecting the ride quality.

This Ram lift kit comes with Dirt Logic 2.25 rear shocks. They will provide a superior ride quality both on and offroad with excellent damping for offroad use.

This high quality 3" Ram lift kit is easy to install and will provide years of service while adding strength and reliability to the vehicle.

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS23202 BALL JOINT UCA COMPONENT BOX
1 FTS23208 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS811472 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
130. Will not fit factory air suspension.
171. Will not fit diesel models.
203. Does not fit 2019 Ram 1500 classic models.

Application List

2019-2023 Dodge Ram 1500 Pickup 2WD/4WD New Body Style

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 wheels w/ 5” BS w/ minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 99.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
