FTSK4037M | Fabtech 3 Inch Basic System With Stealth Shocks (2007-2018 Wrangler JK 4WD)
2007-2018 Jeep Wrangler JK 4WD | 2007-2018 Jeep Wrangler JK Unlimited 4WD
Description
3″ SPACER SYSTEM W/ STEALTH SHOCKS – K4037M
2007-18 JEEP JK 4WD
This kit utilizes the factory coil springs with 3" tall spacers to obtain lift while keeping the stock ride. Kit includes front and rear track bar brackets that recenters the axles under the vehicle for the increased ride height. An economical and correct way to lift a JK for 35" tires with all the proper bracketry included.

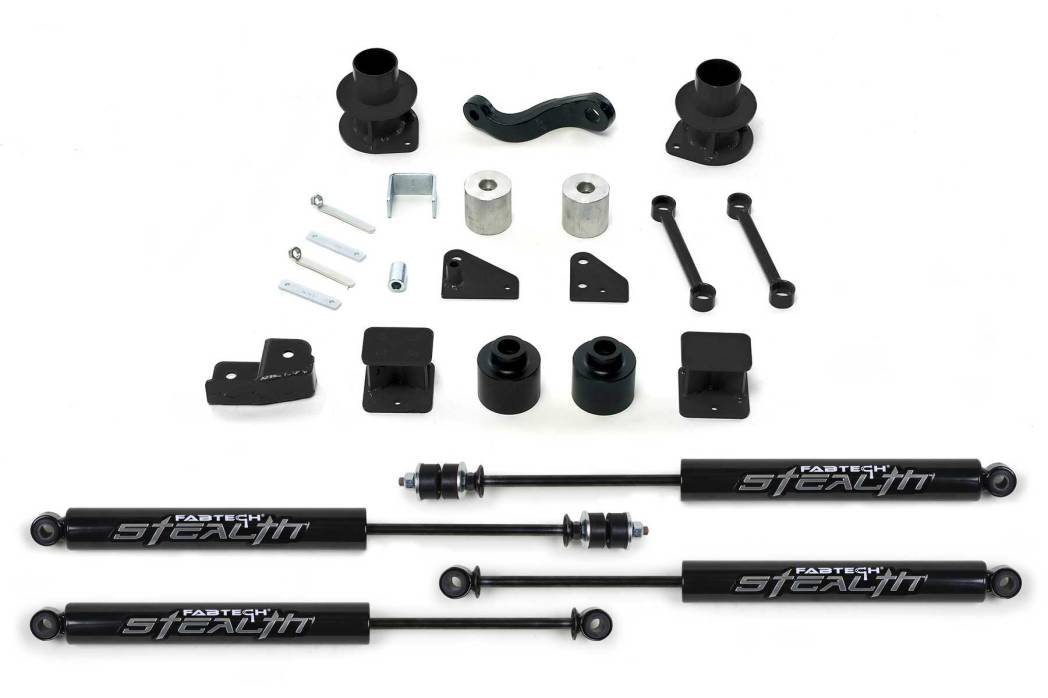

FEATURES
- Front & Rear Coil Spring Spacers
- Front Sway Bar LInks
- Front & Rear Track Bar Brackets
- Pitman Arm
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS24080BK | COMPONENT BOX |
2 | FTS6021 | FRONT STEALTH MONOTUBE |
2 | FTS6265 | REAR STEALTH MONOTUBE |
FOOTNOTES
148. Exhaust Spacer (FTS24126) required on all 2012-17 Jeep Wranglers.
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.
Application List
2007-2018 Jeep Wrangler JK Unlimited 4WD
Tires & Wheels
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
TUBE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting
Details
- K4037M
- K4037M
- 674866092969
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 64.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
