FTSK4051M | Fabtech 3 Inch Trail II With Stealth Shocks (2007-2018 Wrangler JK 4WD 2 Door)

2007-2018 Jeep Wrangler JK 4WD

K4051M
Pricing: $3,024.39
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3″ TRAIL II SYSTEM W/ STEALTH SHOCKS – K4051M

2007-18 JEEP JK 4WD [2-DOOR]

This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.

The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250″ thick wall tubing they are guaranteed not to bend. Fabtech’s 5 Ton Joints® are included and come with a lifetime warranty against wearing out. The front adjustable Track Bar and bolt on rear track bar bracket with gusset recenters the axles for the increased ride height.

System includes Fabtech’s Standard coil springs for great on and offroad suspension performance.

Perfect system for rocks, trail and overland expedition use.

FEATURES

  • Front & Rear Short Arm Lower Links
  • Standard Front & Rear Coil Springs
  • Front Adjustable Track Bar
  • Front Sway Bar LInks
  • Rear Track Bar Bracket w/Support
  • Front & Rear Brake Lines
  • E-brake Bracket
  • Front Bump Stop Extensions
  • Rear Bump Stop Brackets
  • Optional Upper Links Available

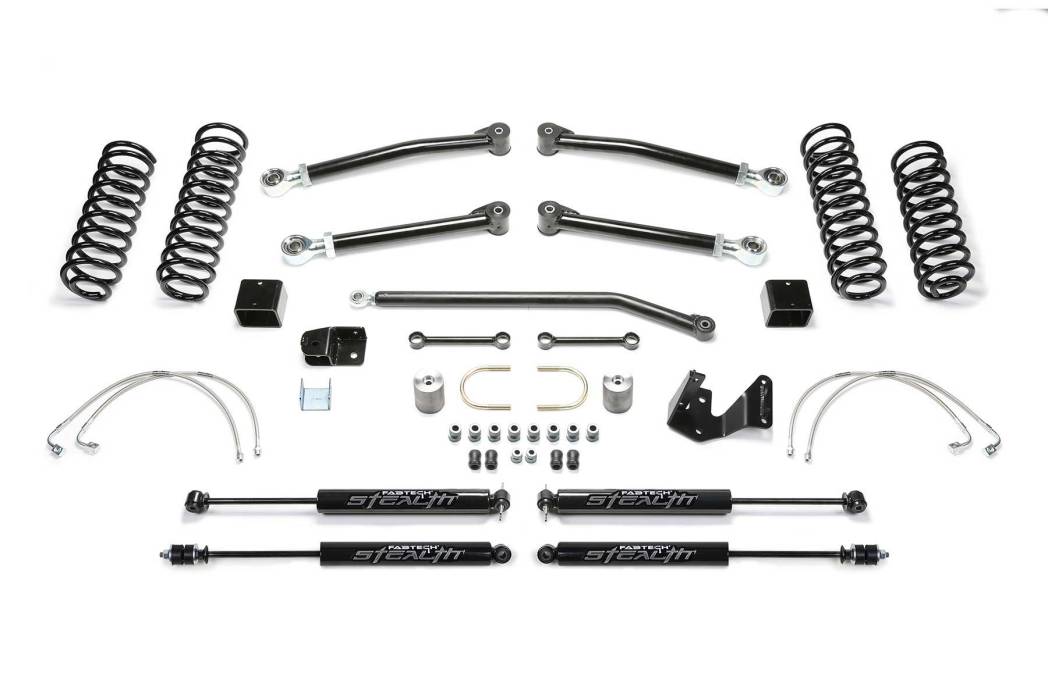

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24161 FRONT & REAR STANDARD COILS
1 FTS24128 FRONT & REAR SHORT ARM LOWER LINKS
1 FTS24129 1.75”-5” CHROMOLY FRONT TRACK BAR
1 FTS24130 STANDARD BOX KIT
2 FTS6021 FRONT STEALTH MONOTUBE
2 FTS6265 REAR STEALTH MONOTUBE

FOOTNOTES

148. Exhaust Spacer (FTS24126) required on all 2012-17 Jeep Wranglers.
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.

Application List

2007-2018 Jeep Wrangler JK 4WD

Tires & Wheels

STOCK FENDERS
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
TUBE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 164.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
