FTSK4070M | Fabtech 5 Inch Trail LT With Stealth Shocks (2007-2018 Wrangler JK 4WD 4 Door)

2007-2018 Jeep Wrangler JK Unlimited 4WD

K4070M
Pricing: $3,208.77
Qty:
Free Ground Shipping | Exclusions Apply*

Description

5″ TRAIL LONG TRAVEL SYSTEM W/ STEALTH SHOCKS – K4070M

2007-18 JEEP JK 4WD [4-DOOR]

This Short Arm system replaces all four lower link arms due to their vulnerability to offroad obstacles during offroad use.

The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250″ thick wall tubing they are guaranteed not to bend. Fabtech’s 5 Ton Joints® are included and come with a lifetime warranty against wearing out. The weld on 1/4″ thick steel Track Bar brackets properly maintain the roll center of the vehicle with the increased ride height.

System includes Fabtech’s Standard coil springs for balanced on and offroad suspension performance.

Great system for rocks, trail and overland expedition use.

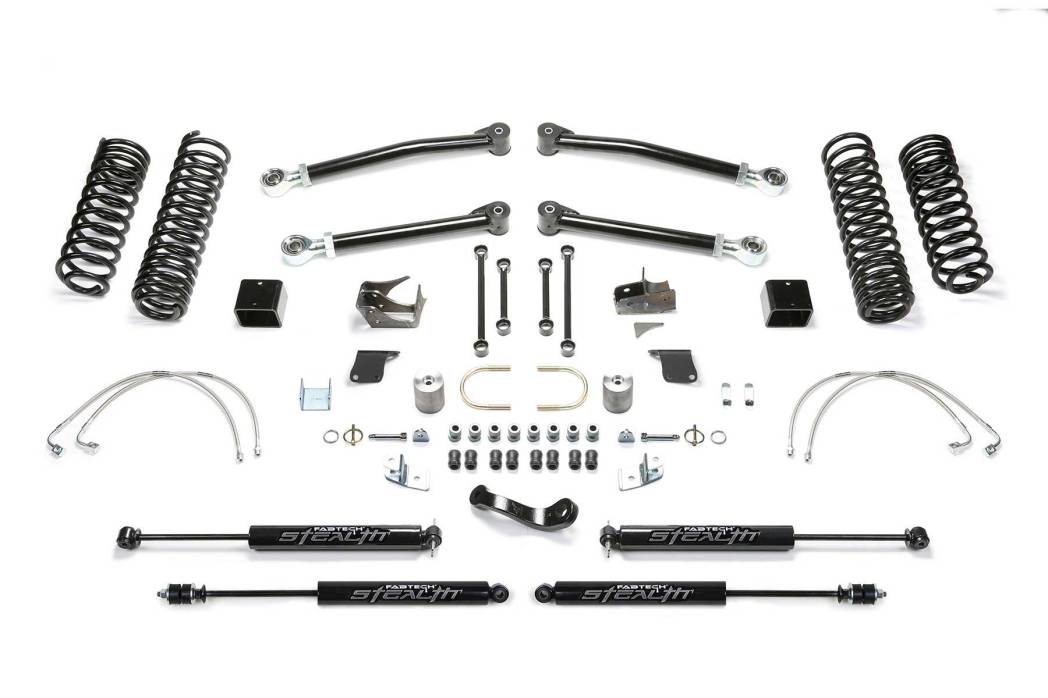

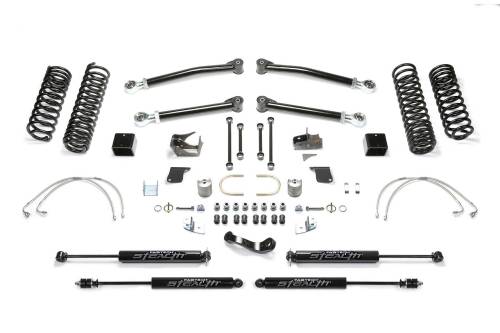

FEATURES

  • Front & Rear Lower Short Arm Links
  • Front & Rear Long Travel Coil Springs
  • Front Lower Long Travel Shock brackets
  • Front & Rear Sway Bar LInks
  • Front & Rear Track Bar Brackets
  • Pitman Arm
  • Front & Rear Brake Lines
  • E-brake Bracket
  • Front Bump Stop Extensions
  • Rear Bump Stop Brackets
  • Optional Upper Links available.

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24154 FRONT & REAR LONG TRAVEL COILS
1 FTS24128 FRONT & REAR SHORT ARM LOWER LINKS
1 FTS24131 LONG TRAVEL BOX KIT
2 FTS6016 FRONT STEALTH MONOTUBE
2 FTS6349 REAR STEALTH MONOTUBE

FOOTNOTES

50. Installation requires welding.
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.

Application List

2007-2018 Jeep Wrangler JK Unlimited 4WD

Tires & Wheels

STOCK FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
TUBE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/no trimming
Tire Size – 40/13.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 180.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
