FTSK4073DL | Fabtech 5 Inch Crawler LT With Dirt LogicSS Resi (2007-2018 Wrangler JK 4WD 2 Door)

2007-2018 Jeep Wrangler JK 4WD

K4073DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $7,421.02
Qty:

Description

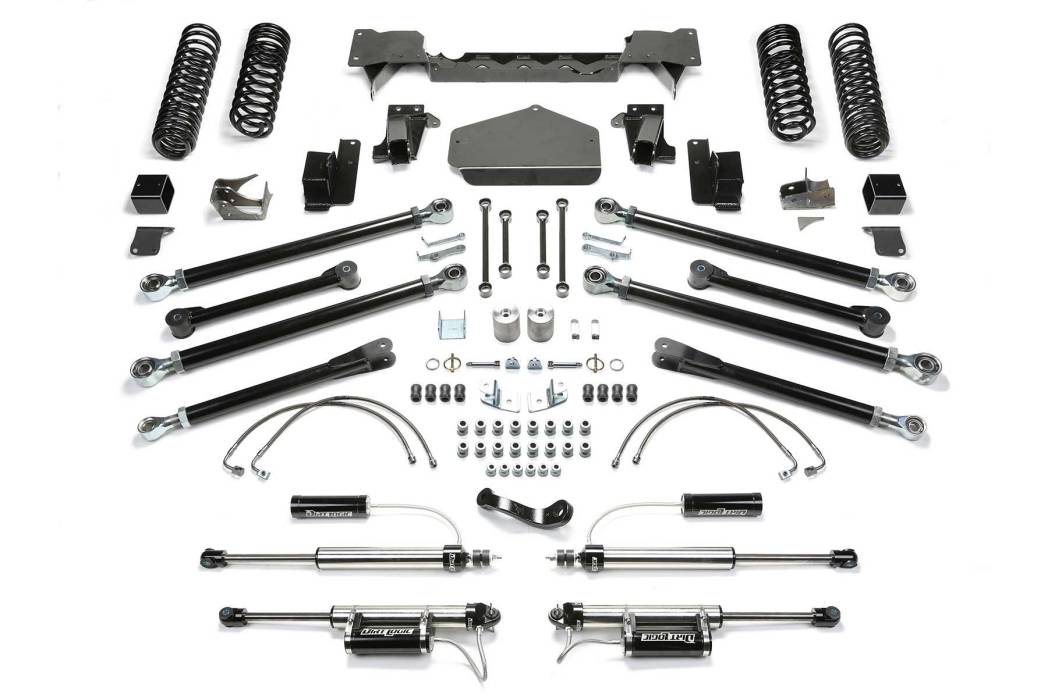

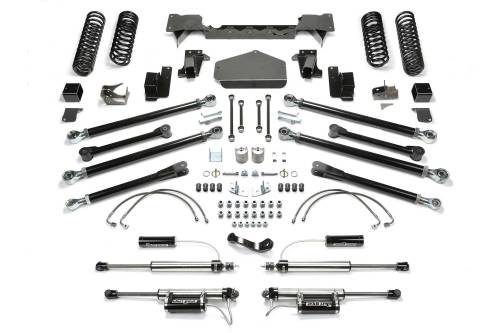

5″ CRAWLER® LONG TRAVEL SYSTEM W/DIRT LOGIC 2.25 RESI SHOCKS – K4073DL

2007-18 JEEP JK 4WD [2-DOOR]

This high clearance Long Arm system provides unsurpassed articulation for aggressive offroad use while retaining great highway manners due to the advanced link arm geometry.

Fabtech’s Link Arm construction features .313″ thick wall tubing that is guaranteed not to bend. Heavy duty 5 Ton Joints® in the Link Arms will handle offroad abuse yet are quiet on the highway and come with a lifetime warranty against wearing out. The weld on 1/4″ thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.

This high end system comes with Fabtech’s Standard Coil Springs for great overall suspension performance.

Top quality construction with outstanding offroad performance and great highway ride.

FEATURES

  • Front Upper & Lower Long Arm Links
  • Rear Upper & Lower Long Arm Links
  • Long Travel Front & Rear Coil Springs
  • Front Lower Long Travel Shock Brackets
  • Front & Rear Sway Bar LInks
  • Front & Rear Track Bar Brackets
  • Pitman Arm
  • Front & Rear Brake Lines
  • E-brake Bracket
  • Front Bump Stop Extensions
  • Rear Bump Stop Brackets

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24143 FRONT & REAR LONG TRAVEL COILS
1 FTS24132 FRONT LONG ARM KIT
1 FTS24134 REAR LONG ARM KIT
1 FTS24131 LONG TRAVEL BOX KIT
2 FTS800222 FRONT DIRT LOGIC RESI 2.25 SHOCKS
2 FTS801102 REAR DIRT LOGIC 2.25 RESI SHOCKS

FOOTNOTES

50. Installation requires welding.
120. Exhaust modification required on all 2012-17 Jeep Wranglers or order Loop Delete Pipe (FTS94060).
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.

Application List

2007-2018 Jeep Wrangler JK 4WD

Tires & Wheels

STOCK FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
TUBE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/no trimming
Tire Size – 40/13.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 369.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
