FTSK4161DL | Fabtech 3 Inch Sport System With Dirt Logic Resi (2020-2023 Gladiator JT 4WD Gas)

2020-2023 Jeep Gladiator JT 4WD | Gas

K4161DL
Pricing: $3,294.48
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3″ SPORT LIFT KIT W/ DIRT LOGIC 2.25 RESI SHOCKS – K4161DL

2020-23 JEEP GLADIATOR 4WD

This Sport lift kit is Fabtech’s most popular Jeep system providing increased ride height and suspension performance at a great price. Installation is easy and can be installed in a couple hours.

The Sport lift kit features front coil springs that are a dual rate design allowing extended suspension travel for offroad use while providing a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.

The rear of the vehicle receives coil spring spacers retaining the factory ride and load carrying capacity. The spacer height is 1-3/4" to help level the stance of the vehicle.

Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline.

The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel.

The stainless steel Dirt Logic shocks will provide additional damping capacity for offroad use with a supple on road ride quality.

This Gladiator lift kit is an excellent choice for the Jeep enthusiast that wants to run larger tires with enhanced offroad capability and a good highway ride.

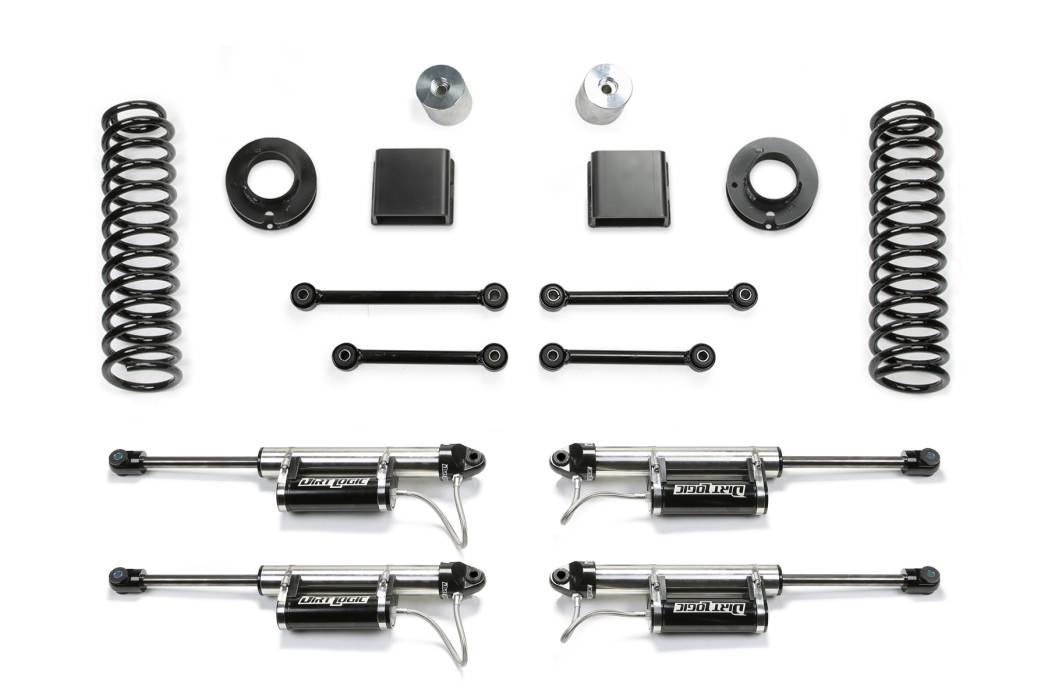

WHAT’S IN THE SYSTEM

  • Front Dual Rate Coil Springs
  • Rear Coil Spacers
  • Front & Rear Sway Bar Links
  • Front & Rear Bump Stop Brackets
  • Free 5 Year 60,000 Mile Powertrain Warranty

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24242 3″ SPORT LIFT KIT
2 FTS801402 FRONT DIRT LOGIC 2.25 RESI SHOCKS
2 FTS801502 REAR DIRT LOGIC 2.25 RESI SHOCKS

FOOTNOTES

182. Fits Gas Models Only.

Application List

2020-2023 Jeep Gladiator JT 4WD Gas

Tires & Wheels

STOCK FENDERS
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
HIGH CLEARANCE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting
