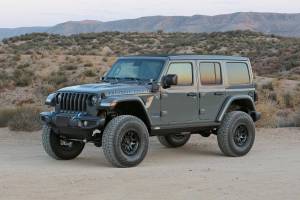

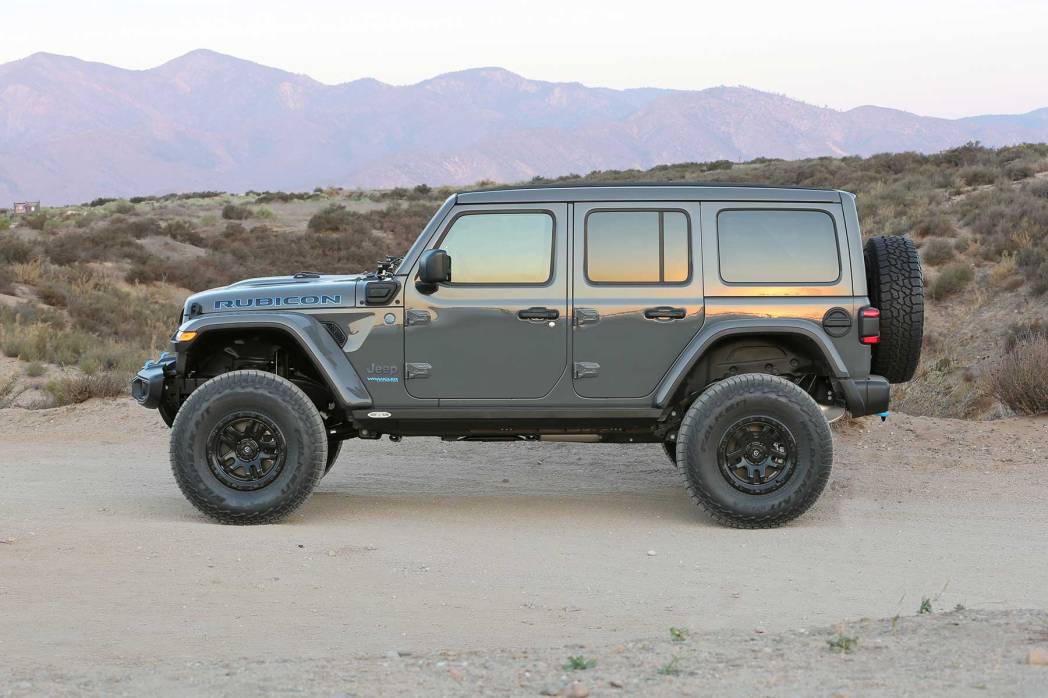

FTSK4200 | Fabtech 3 Inch Sport System With Shock Extensions (2021-2023 Wrangler JL 4XE 4 Door)

2021-2023 Jeep Wrangler JL 4XE 4 Door

K4200
Pricing: $1,271.14
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3″ SPORT SYSTEM W/ SHOCK EXTENSIONS – K4200

2021-23 JEEP JL 4WD 4XE [4-DOOR]

The Sport system features coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride.

The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.

The Dual Rate coil springs are corner specific to the JL 4xe. This keeps the vehicle level side to side while allowing for increased suspension travel.

Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline.

The extended length front and rear sway bar links with urethane bushings re-position the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel.

A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.

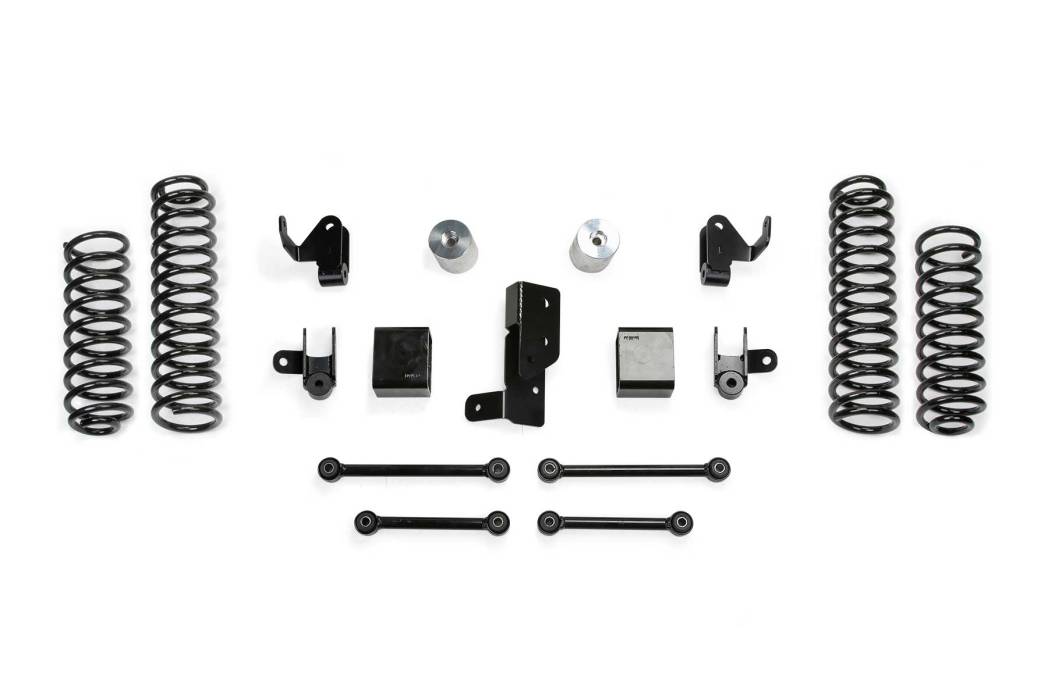

WHAT’S IN THE SYSTEM

  • Front & Rear Dual Rate Coil Springs
  • Front & Rear Sway Bar Links
  • Front & Rear Bump Stop Extensions
  • Rear Track Bar Bracket
  • Front & Rear Shock Extensions

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24302 COMPONENT BOX
1 FTS24201 SHOCK EXTENSION KIT

FOOTNOTES

185. Fits 4-door models only.
233. Fits 4xe models only.

Application List

2021-2023 Jeep Wrangler JL 4XE 4 Door

Tires & Wheels

STOCK FENDERS
Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
HIGH CLEARANCE FENDERS
Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 92.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
