FTSK7031DL | Fabtech 3 Inch UCA and DLSS 2.5 Coilover System With Dirt LogicSS Resi Rear Shocks (2006-2009 FJ Cruiser 4WD)

2006-2009 Toyota FJ Cruiser

K7031DL
Pricing: $4,620.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

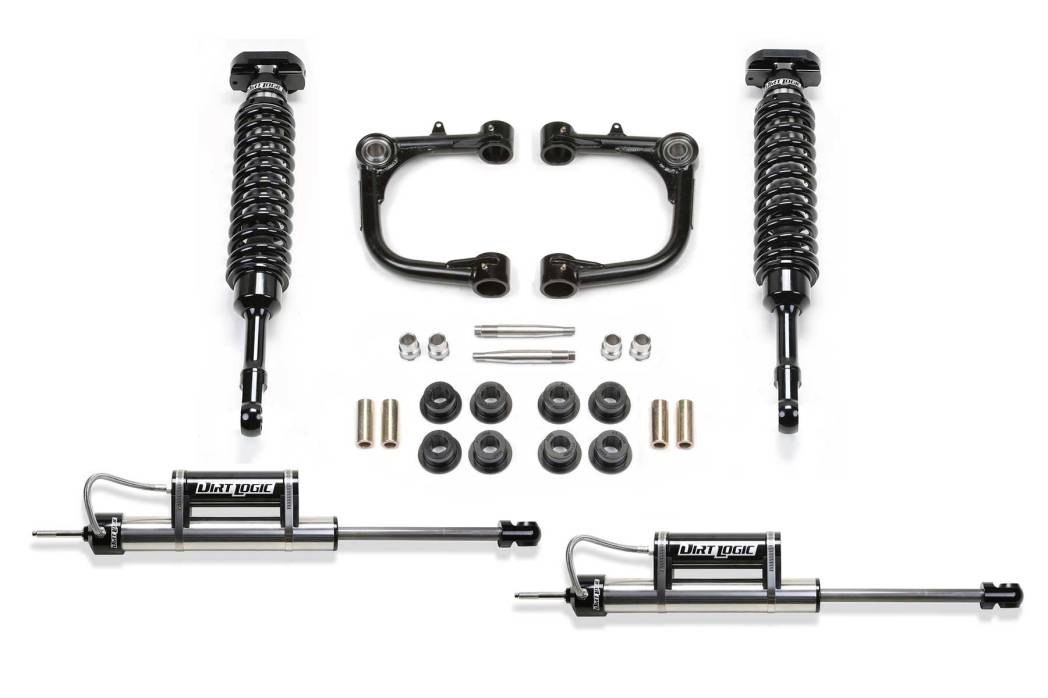

3″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC RESI SHOCKS – K7031DL

2006-09 TOYOTA FJ 2WD/4WD

Fabtech’s Upper Control Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. These Upper Control Arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniballs. Allows for increased wheel travel when used with Dirt Logic 2.5 Coilovers. The Chromoly tubing reduces flex found in stock arms for more positive road feel. The 17-4 Stainless Steel Heat treated Uniball pin fits into the factory ball joint taper without modification to the spindle for an easy return to stock feature.

FEATURES

  • Built with same materials as found on Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • .250" wall DOM Bushing Barrels
  • PTFE lined 1" ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26045 UNIBALL UPPER CONTROL ARMS
1 FTS26061 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS801212 REAR DIRT LOGIC 2.25 RESI SHOCKS

Application List

2006-2009 Toyota FJ Cruiser

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 107.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
