FTSK7040DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2010-2013 FJ Cruiswer 4WD)
2010-2013 Toyota FJ Cruiser 4WD
Description
6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K7040DL
2010-13 TOYOTA FJ 2WD/4WD
Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Performance system includes Fabtech’s Dirt Logic 2.5 Coilover shocks, replacing the stock front strut assemblies. The Performance rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

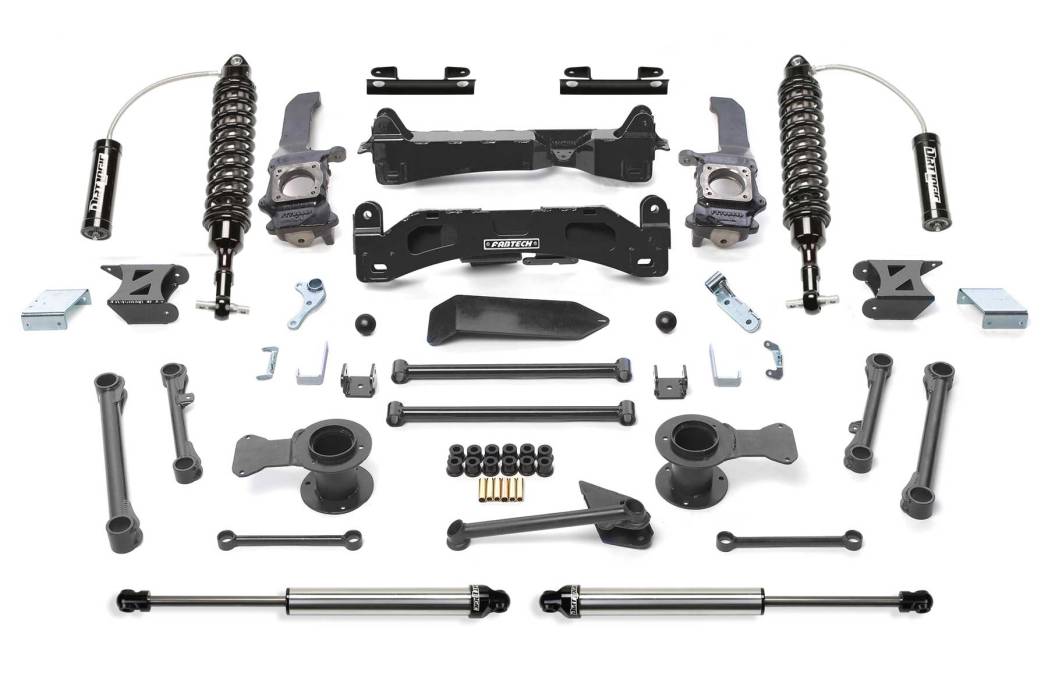

- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Dirt Logic 2.5 Coilovers
- Impact Struts
- Sway Bar links
- Rear Upper & Lower Link Arms
- Rear Coil Spring Spacers
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS26032 | COMPONENT BOX 1 |
| 1 | FTS26033 | COMPONENT BOX 2 |
| 1 | FTS26055 | FRONT DIRT LOGIC 2.5 COILOVER W/RESI |
| 1 | FTS26018BK | REAR BOX KIT |
| 2 | FTS810542 | REAR DIRT LOGIC 2.25 NON RESI |
Application List
Details
- K7040DL
- K7040DL
- 674866099777
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 365.8 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
