FTSK7041DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2006-2009 FJ Cruiser 4WD)

2006-2009 Toyota FJ Cruiser

K7041DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $7,842.59
Qty:

Description

6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K7041DL

2006-09 TOYOTA FJ 2WD/4WD

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35” tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4” thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Performance system includes Fabtech’s Dirt Logic 2.5 Coilover shocks, replacing the stock front strut assemblies. The rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Dirt Logic 2.5 Coilovers
  • Impact Struts
  • Sway Bar links
  • Rear Upper & Lower Link Arms
  • Rear Coil Spring Spacers

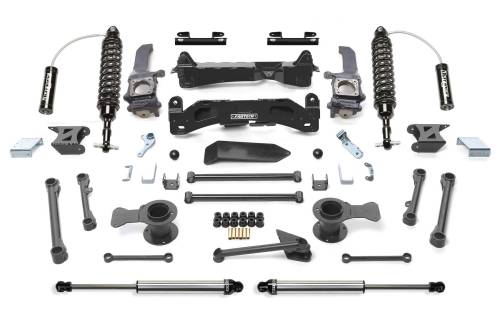

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26016BK COMPONENT BOX 1
1 FTS26017BK COMPONENT BOX 2
1 FTS26055 FRONT DIRT LOGIC 2.5 COILOVER W/RESI
1 FTS26018BK REAR BOX KIT
2 FTS810542 REAR DIRT LOGIC 2.25 NON RESI

Application List

2006-2009 Toyota FJ Cruiser

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 366.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
