FTSK7045DL | Fabtech 4 Inch UCA Kit With Uniballs With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2007-2015 Tundra 2WD/4WD)

2007-2015 Toyota Tundra 2WD/4WD

K7045DL
Pricing: $5,774.16
Qty:
Free Ground Shipping | Exclusions Apply*

Description

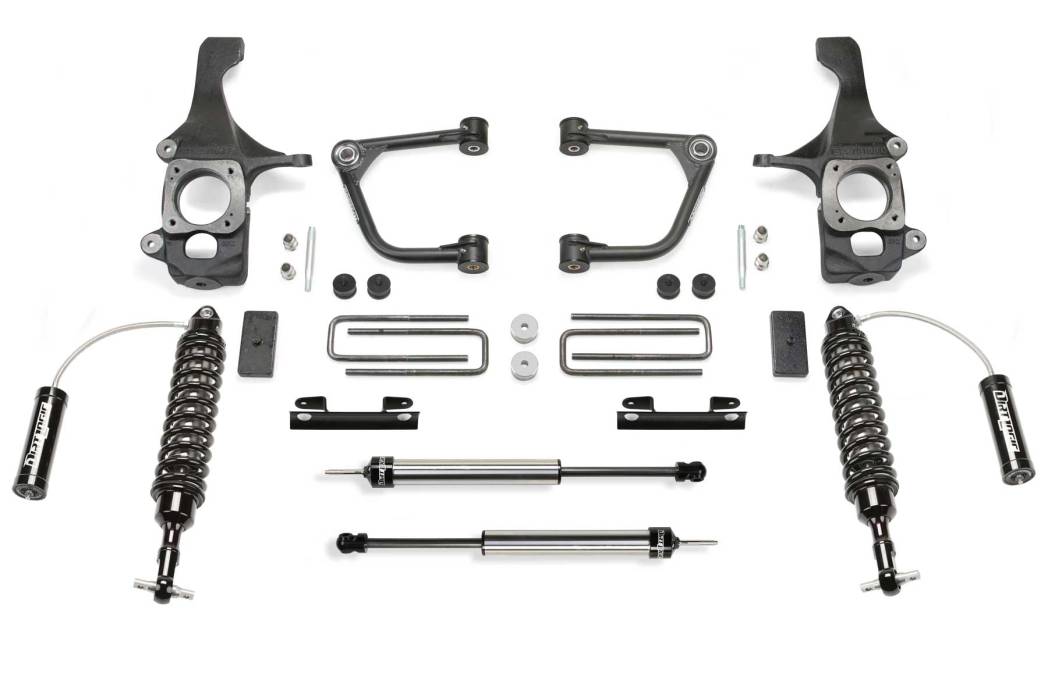

4″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K7045DL

2007-15 TOYOTA TUNDRA 2WD/4WD

This 4" System capitalizes on Toyota Tundra’s large wheelwell opening to allow use of 35" tall tires with minimum lift height. The design of this 4" System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price.

The system includes replacement upper control arms constructed with .120" wall 4130 Chromoly and 1" FK Stainless Uniballs.

Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35" tall tires. The knuckles retain the stock track width keeping the tires under the front fenders.

The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1" lift block and u-bolt system to level the stance of the vehicle.

The 4″ System features front Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.

FEATURES

  • Heavy Duty Extended Length Ductile Iron Steering Knuckles
  • Replacement Upper Control Arms
  • 1" FK Stainless Uniballs
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26039 COMPONENT BOX
1 FTS26052 FRONT DIRT LOGIC 2.5 COILOVERS W/RESI
2 FTS810982 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

14. Cannot use OEM wheel and tire.
114. Will not allow use of 17" wheel.

Application List

2007-2015 Toyota Tundra 2WD/4WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 201.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
