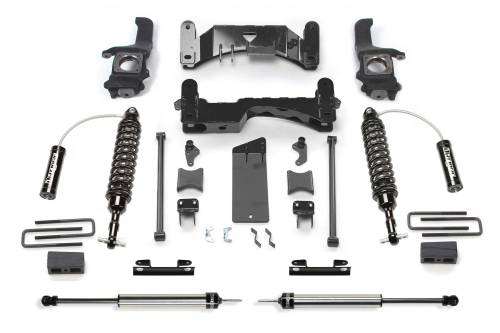

FTSK7046DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2007-2015 Tundra 2WD/4WD)

2007-2015 Toyota Tundra 2WD/4WD

K7046DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $7,232.52
Qty:

Description

6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K7046DL

2007-15 TOYOTA TUNDRA 2WD/4WD

Our 6" Performance Systems features our Dirt Logic 2.5 resi coilover shocks providing superior offroad dampening capacity with a good highway ride. This system includes our proven IFS technology with extended length ductile iron steering knuckles and arched crossmembers for exceptional suspension ground clearance with a 1/4" thick differential skid plate, impact struts, heavy duty tie rods, rear add-a-leafs and more.

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Dirt Logic 2.5 Resi Coilovers
  • Impact Struts
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26020BK COMPONENT BOX 1
1 FTS26021BK COMPONENT BOX 2
1 FTS26053 FRONT DIRT LOGIC 2.5 COILOVERS W/RESI
2 FTS810602 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
69. Double Cab & CrewMax 5.7L w/ Auto Trans only.
114. Will not allow use of 17″ wheels.
168. Will not work on TRD PRO models.

Application List

2007-2015 Toyota Tundra 2WD/4WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 359.3 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
