FTSK7055DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Coilovers and Rear DLSS (2016-2021 Tundra 2WD/4WD)
2016-2021 Toyota Tundra 2WD/4WD
Description

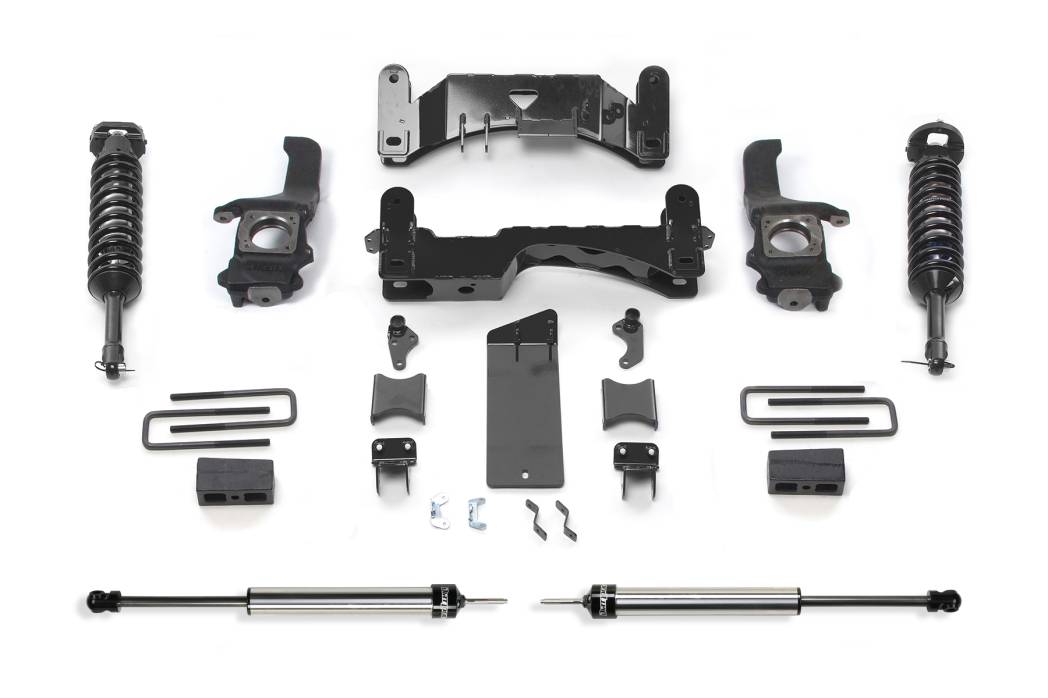

6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS – K7055DL
2016-21 TOYOTA TUNDRA 2WD/4WD
Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Performance system includes our Dirt Logic 2.5 Coilover shocks for aggressive offroad use with a good highway ride and utilizes a 3" block and u-bolt system for rear lift.
FEATURES
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Dirt Logic 2.5 Coilovers
- Impact Struts
- Rear Block & U-bolt Kit
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS26071 | COMPONENT BOX 1 |
| 1 | FTS26072 | COMPONENT BOX 2 |
| 1 | FTS26060 | FRONT DIRT LOGIC 2.5 COILOVERS |
| 2 | FTS810602 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
14. Can not use OEM wheel and tire.
69. Double Cab & CrewMax 5.7L w/ Auto Trans only.
114. Will not allow use of 17" wheels.
Application List
Tires & Wheels
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5 1/2in BS w/minor trimming
Details
- K7055DL
- K7055DL
- 674866100657
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 343.6 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
