FTSK7058DL | Fabtech 3 Inch UCA and DLSS 2.5 Coilover System With Dirt LogicSS Resi Rear Shocks (2015-2023 Tacoma 2WD/4WD 6 Lug)

2015-2023 Toyota Tacoma 2WD/4WD | 6 Lug

K7058DL
Pricing: $4,620.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC RESI SHOCKS – K7058DL

2015-23 TOYOTA TACOMA 2WD/4WD [6 LUG]

Obtain increased wheel travel with a mild lift height with these heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

The replacement UCA’s have been designed to work in conjunction with Fabtech’s Dirt Logic 2.5 Coilover shocks providing 10" of wheel travel for a complete front suspension system upgrade. The vehicle’s offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.

FEATURES

  • Arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball
  • Chromoly tubing reduces flex found in stock arms for more positive road feel
  • 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
  • Arms are direct replacements for factory arms on suspensions that require additional strength and align ability

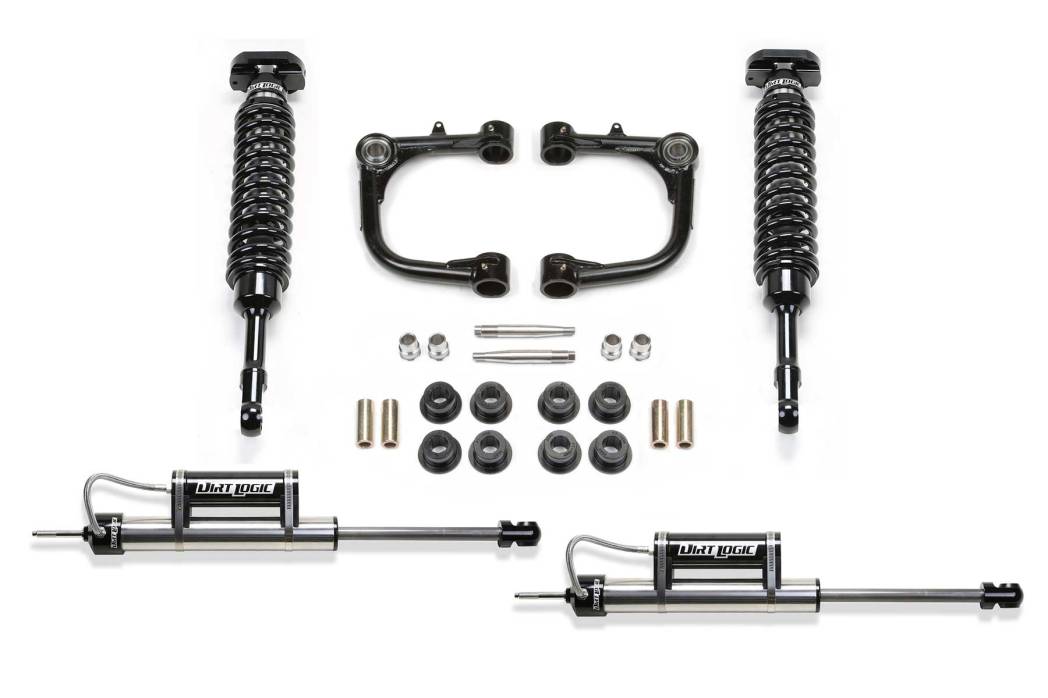

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26073 UNIBALL UPPER CONTROL ARMS
1 FTS26076 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS800692 REAR DIRT LOGIC 2.25 RESI SHOCKS

Application List

2015-2023 Toyota Tacoma 2WD/4WD 6 Lug

Tires & Wheels

Tire Size – 33/12.50R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming
Tire Size – 275/70R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 275/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 95.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
