FTSK9008DL | Fabtech 1.5 Inch Coil Assist Kit With B6 Bilstein and 2.25 DLSS (2015-2021 Sprinter 3500 4WD)

2015-2021 Mercedes Benz Spriter 3500 4WD

K9008DL
Pricing: $3,870.79
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1.5″ COIL ASSIST KIT – FRONT BILSTEIN B6 STRUTS & REAR DIRT LOGIC 2.25 SHOCKS – K9008DL

NOTE- BILSTEIN STRUTS ARE BACK ORDERED AT THIS TIME. PLACE YOUR ORDER TO RESERVE STRUTS AS THERE WILL BE LIMITED SUPPLY ONCE AVAILABLE.

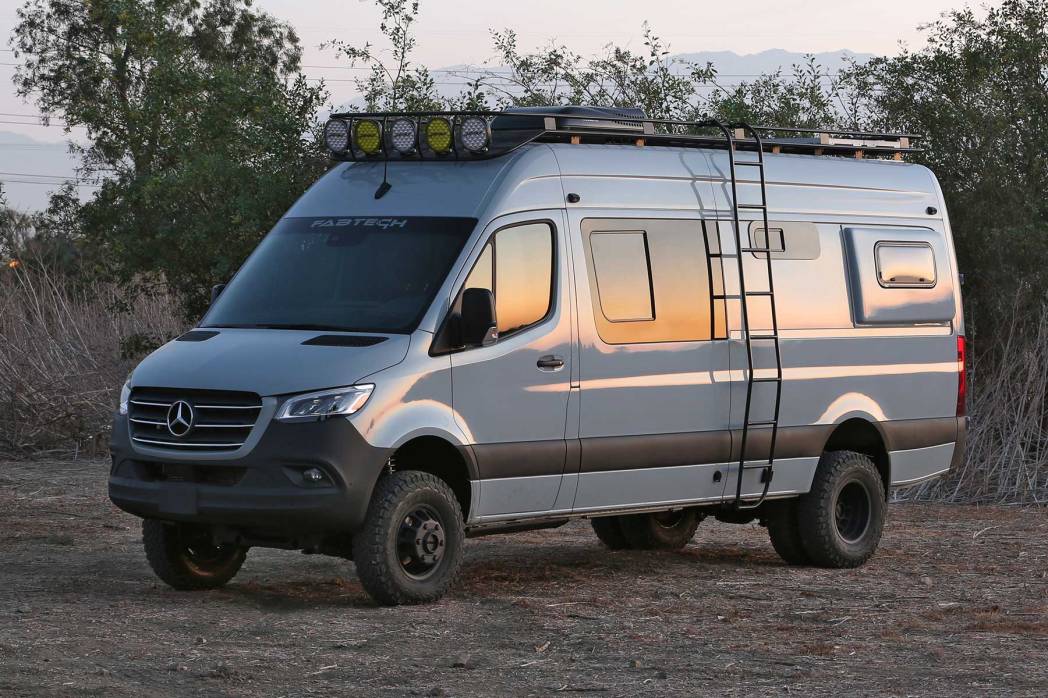

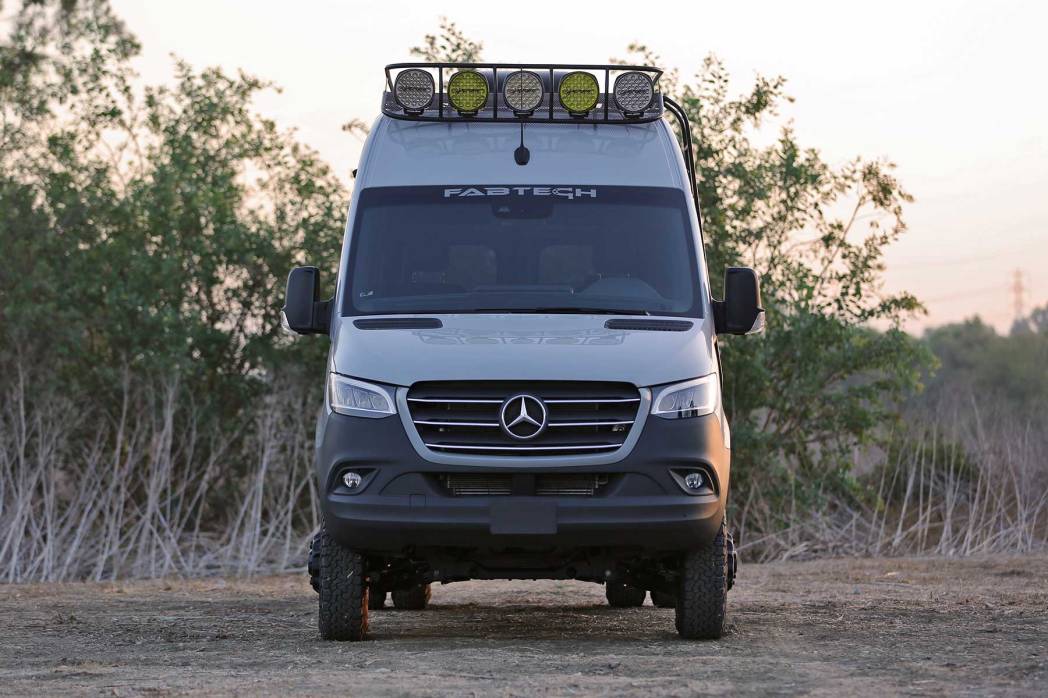

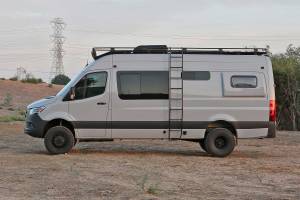

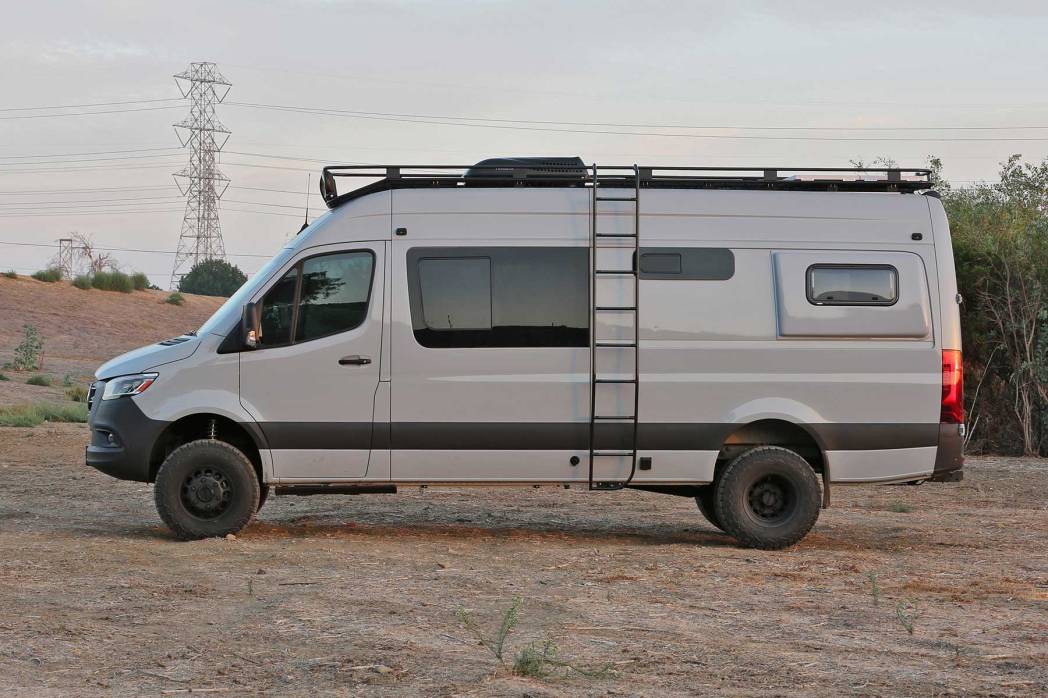

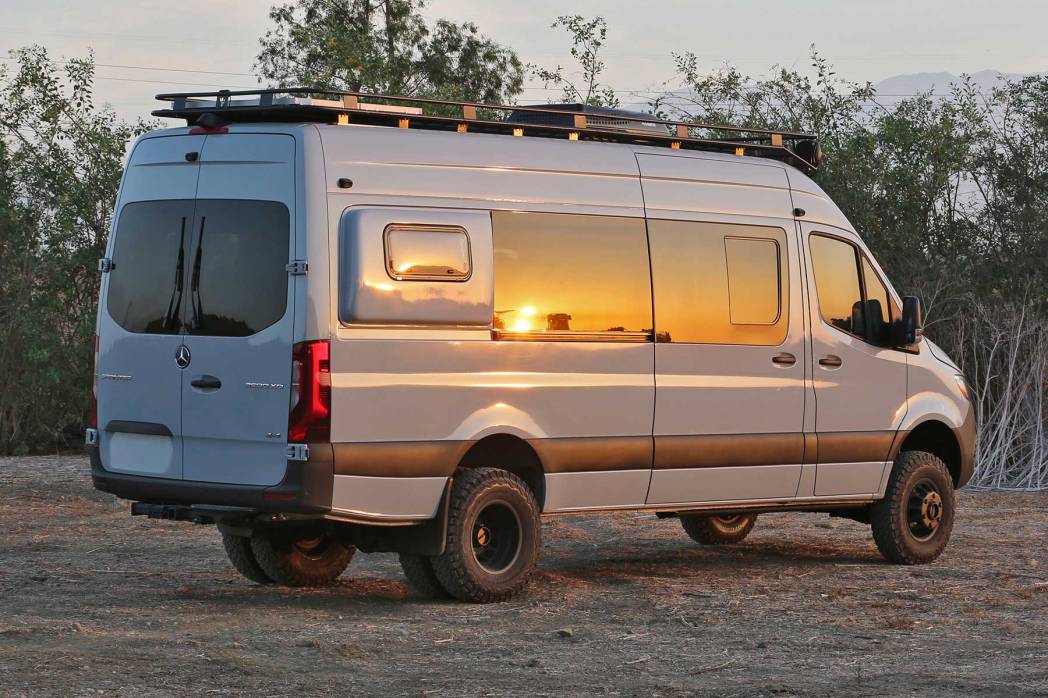

2015-21 MERCEDES SPRINTER 3500 4WD

The front suspension of a Sprinter van utilizes a MacPherson strut to provide damping. The stock struts leave a lot to be desired on their own once you upfit the van for overland use or haul cargo. Fabtech offers a solution to this problem by utilizing a Bilstein strut with their high-quality cold wound coil spring.

The coil springs are positioned around the strut bodies. They provide an additional lift to the vehicle of 1”-1.5” over stock. This creates increased ground clearance and clearance of larger tires for off-road use. Additionally, they help reduce sway for vans with full interior build-outs or hauling heavy cargo.

The coil springs utilize billet aluminum upper and lower coils seats that slide over the strut. They are positioned to the correct ride height and create a secure mounting for the springs.

To further enhance the vehicle’s suspension Fabtech recommends their Auxiliary Front Shock Mounts with Dirt Logic 2.25 shocks for a complete upgrade. This combination will help improve the ride characteristics of the vehicle well beyond stock. It will provide a very compliant highway ride while improving performance for off-highway use.

FEATURES

  • The high-quality cold-wound coil springs for longevity and ride quality
  • Billet aluminum upper and lower coils seats properly locate the coil springs
  • Increases ride height for more ground clearance and helps reduce body sway
  • Can be paired with Fabtech Auxiliary Shock Mounts and Dirt Logic 2.25 shocks for a complete upgrade
  • Retains factory travel and alignment

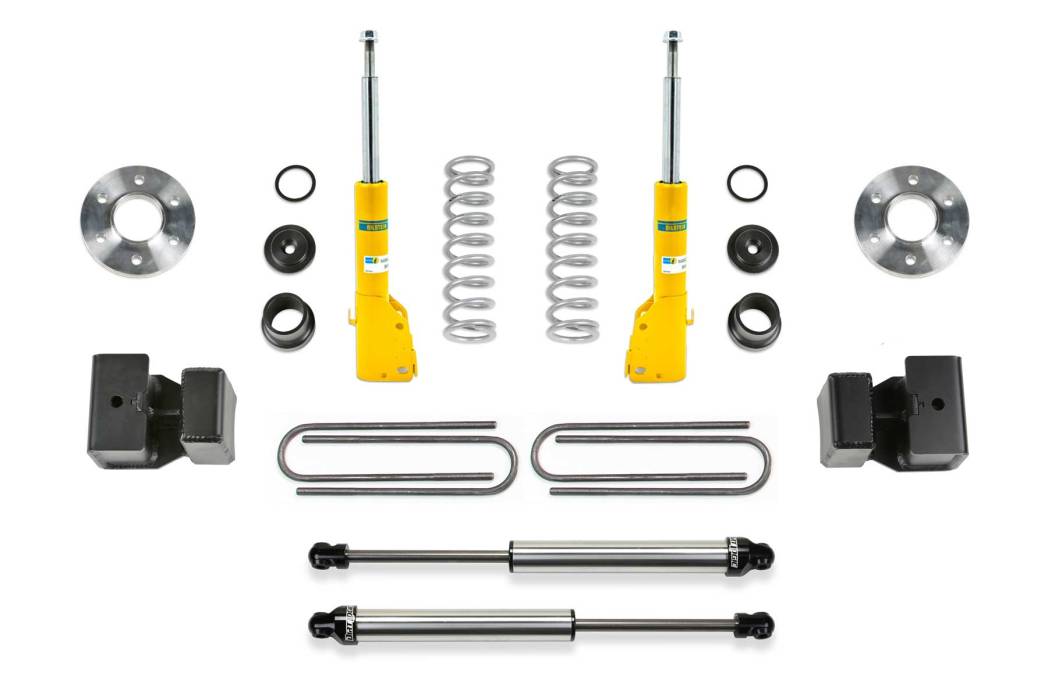

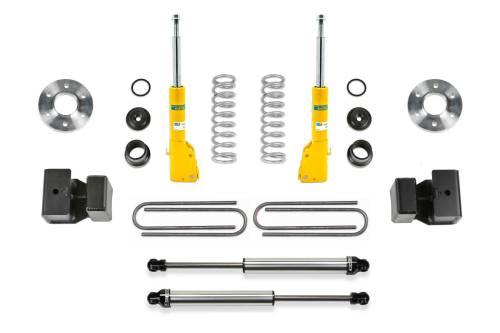

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS28004 COIL ASSIST KIT W/BILSTEIN B6
1 FTS28010 REAR BOX KIT
1 FTS28002 FRONT HUB SPACER KIT
2 FTS81163 REAR DIRT LOGIC 2.25 SHOCK

Application List

2015-2021 Mercedes Benz Spriter 3500 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 95.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
