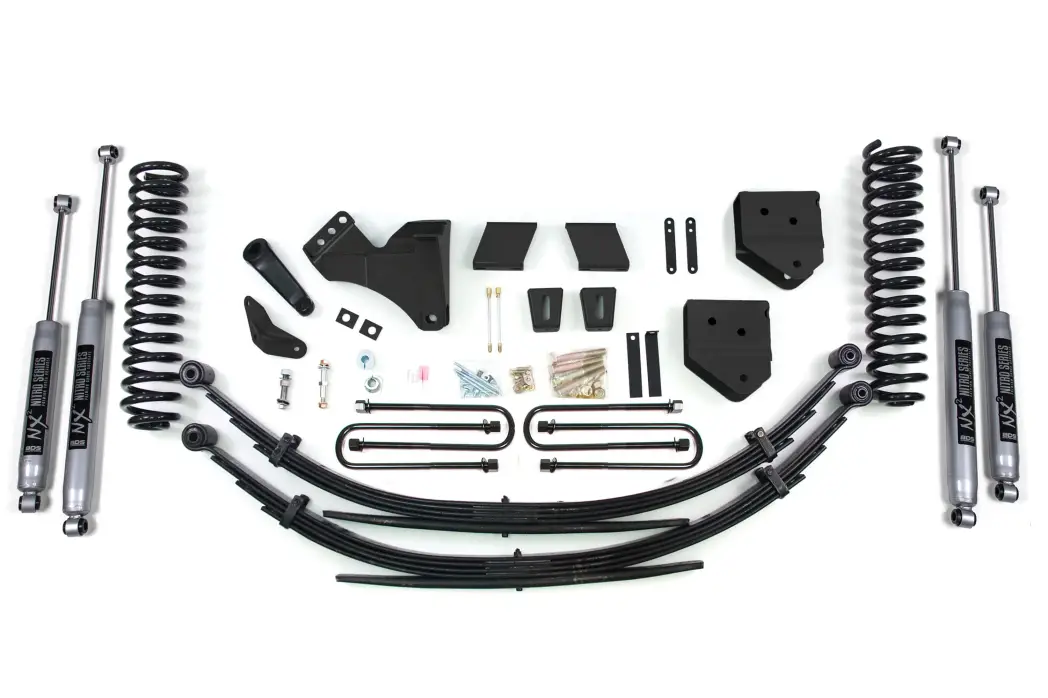

BDS585H | BDS Suspension 6 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD (2011-2016) | Gas | Rear Lift Factory 3 Inch Rear Blocks, NX2 Nitro Series Shocks

6 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD (2011-2016) | Gas | Rear Lift Factory 3 Inch Rear Blocks, NX2 Nitro Series Shocks

BDS585H
Pricing: $3,307.24
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the ride and create more tire clearance on your 2011-2016 Ford Super Duty F250 and F350 gas truck and install this 6-inch lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

  1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
  2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Rear Lift Option

This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Front exhaust modification may be required to clear front drive shaft (gas only).
  2. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
  3. Although extremely rare, front driveline vibration may occur.
  4. If equipped with rear sway bar, #123009 required.
  5. U-bolts will not work on dually.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut-off Tool, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Leaf Spring
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2011FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2011FordF-250 Super DutyLariat4WDFLEXALLALL
2011FordF-250 Super DutyXL4WDFLEXALLALL
2011FordF-250 Super DutyXLT4WDFLEXALLALL
2011FordF-350 Super DutyALL4WDFLEXALLALL
2012FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2012FordF-250 Super DutyLariat4WDFLEXALLALL
2012FordF-250 Super DutyXL4WDFLEXALLALL
2012FordF-250 Super DutyXLT4WDFLEXALLALL
2012FordF-350 Super DutyALL4WDFLEXALLALL
2013FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2013FordF-250 Super DutyLariat4WDFLEXALLALL
2013FordF-250 Super DutyPlatinum4WDFLEXALLALL
2013FordF-250 Super DutyXL4WDFLEXALLALL
2013FordF-250 Super DutyXLT4WDFLEXALLALL
2013FordF-350 Super DutyALL4WDFLEXALLALL
2014FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2014FordF-250 Super DutyLariat4WDFLEXALLALL
2014FordF-250 Super DutyPlatinum4WDFLEXALLALL
2014FordF-250 Super DutyXL4WDFLEXALLALL
2014FordF-250 Super DutyXLT4WDFLEXALLALL
2014FordF-350 Super DutyALL4WDFLEXALLALL
2015FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2015FordF-250 Super DutyLariat4WDFLEXALLALL
2015FordF-250 Super DutyPlatinum4WDFLEXALLALL
2015FordF-250 Super DutyXL4WDFLEXALLALL
2015FordF-250 Super DutyXLT4WDFLEXALLALL
2015FordF-350 Super DutyALL4WDFLEXALLALL
2016FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2016FordF-250 Super DutyLariat4WDFLEXALLALL
2016FordF-250 Super DutyPlatinum4WDFLEXALLALL
2016FordF-250 Super DutyXL4WDFLEXALLALL
2016FordF-250 Super DutyXLT4WDFLEXALLALL
2016FordF-350 Super DutyALL4WDFLEXALLALL

Component List

2 BDS003629 Ford F250/350 6in Rear Spring
1 BDS013609 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2" Factory Block
1 BDS013610 11 Ford F250/350 6in Box Kit
1 BDS033612 2005-2016 Ford F250/F350 6in (Gas) Coil Kit
2 BDS85750 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
2 BDS85760 Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
