2019-2024 1500 TrailBoss & AT4 4WD | Stage 2 FOX 2.5 Elite Series Leveling Kit

CSK-G52L-2F | 2019+ TrailBoss/AT4 | STAGE 2 FOX LEVELING SYSTEM

• CSS-C2-18 | CST UNIBALL UCA KIT
• CSS-C17-1 | 2019+ GM/CHEVY 1500 FENDER CLEARANCE MOUNTS

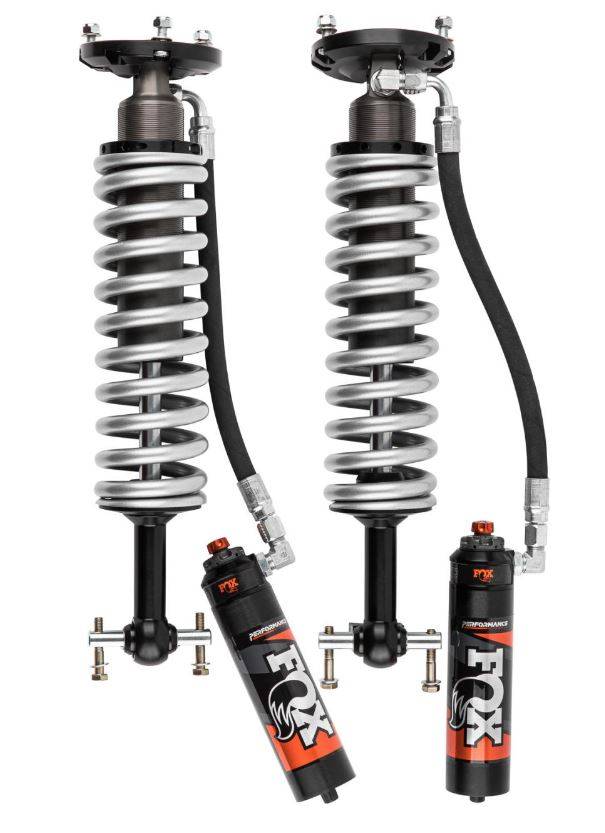

• 883-06-162 | FOX PERFORMANCE ELITE SERIES 2.5 COILOVER SHOCKS

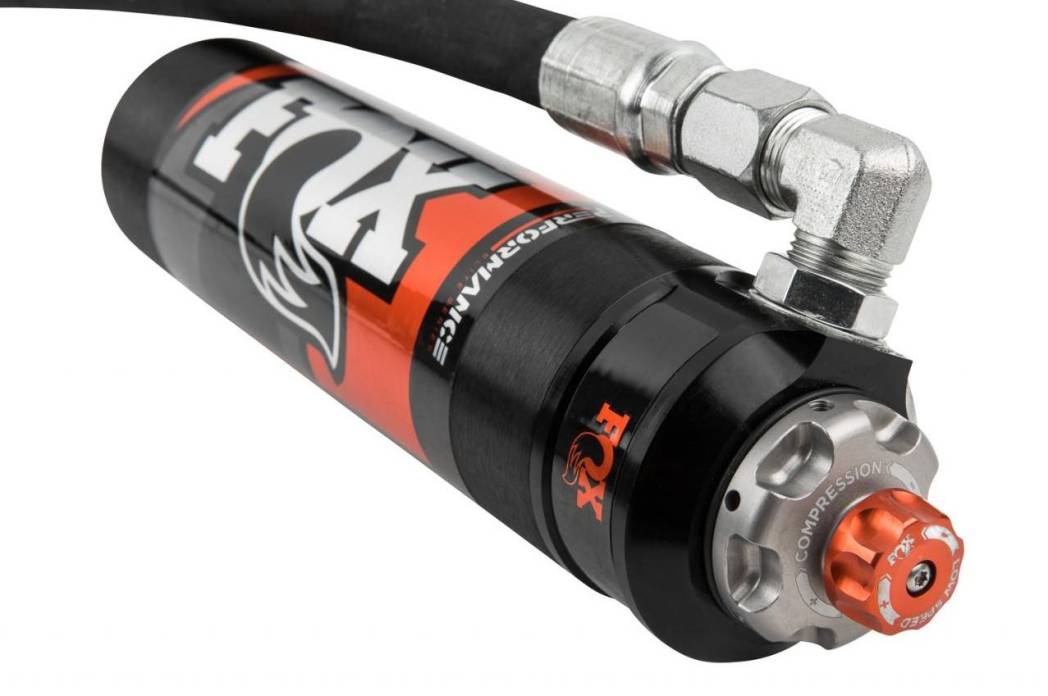

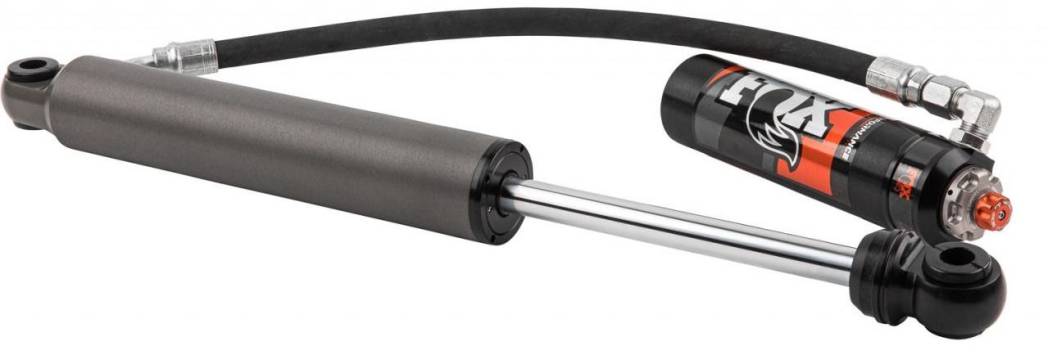

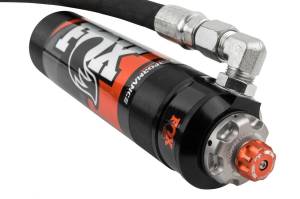

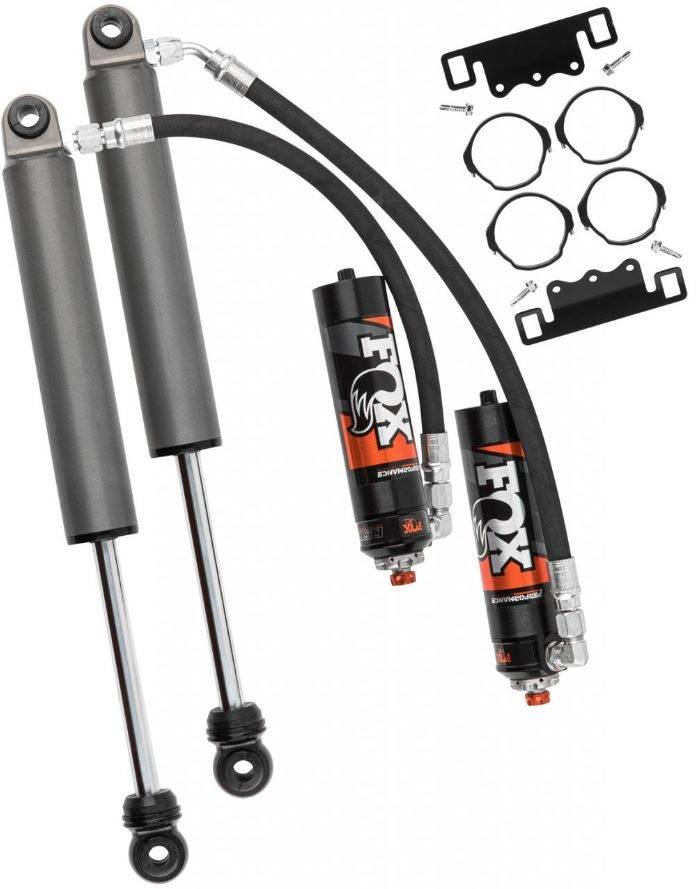

• 883-26-087 | FOX PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCKS

*PLEASE NOTE SOME COILOVER/SHOCK OPTIONS ARE SPECIAL ORDER AT THIS TIME & MAY TAKE 4-6 WEEKS BEFORE SHIPPING*

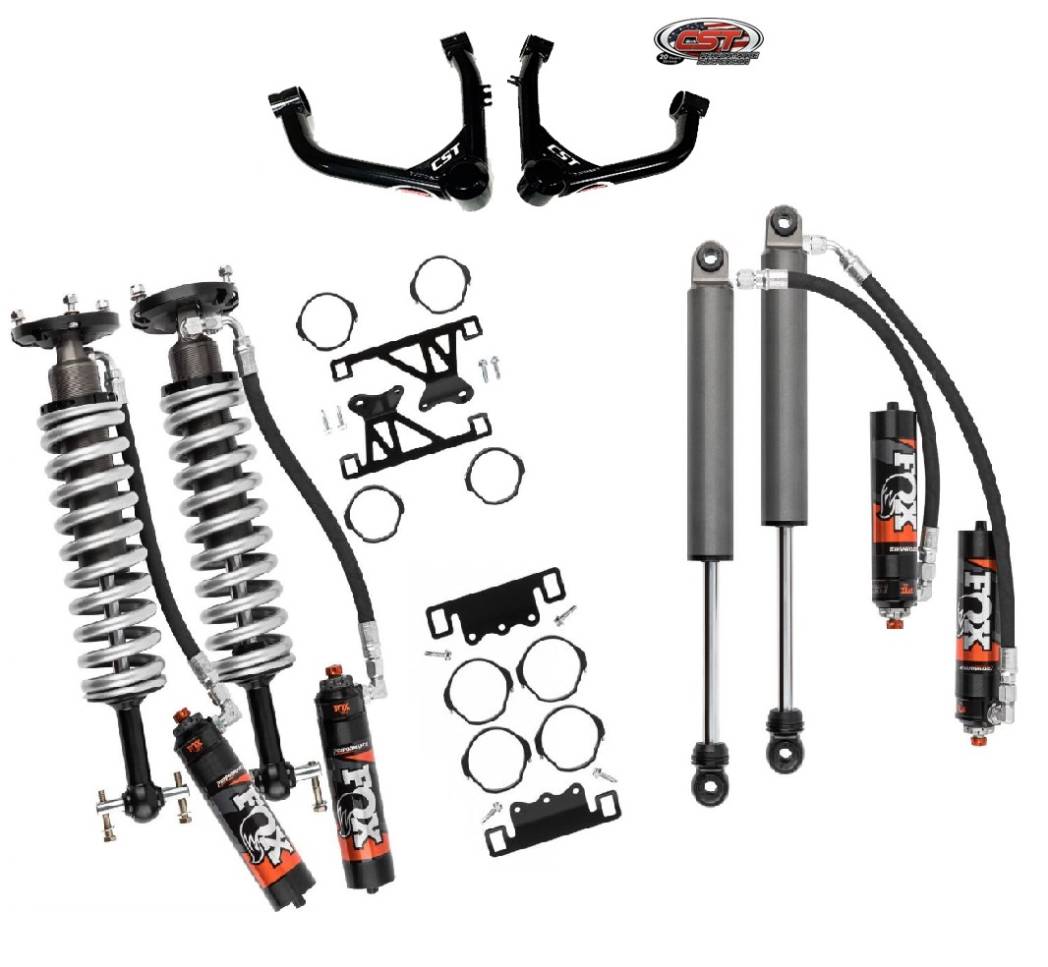

This suspension system includes CST Uniball UCA’s, FOX Performance Elite Series 2.5 DSC coilovers & 2.5 DSC rear shocks, front reservoir mounts (see install photos) plus all other necessary hardware for installation.

KIT FEATURES

• FOX 2.5 PERFORMANCE ELITE SERIES COILOVERS & SHOCKS w/ DSC ADJUSTERS
• UCA w/ CLOSED CST CUP TO REDUCE UNIBALL EXPOSURE
• REMOVABLE UNIBALL FOR SERVICE & REPLACEMENT
• GUSSETED UCA PIVOT FOR ADDITIONAL STRENGTH
• IMPROVED UPPER JOINT ANGLE/DOWN TRAVEL
• NO NEED TO CUT/MODIFY THE UCA POCKET
• SUPERIOR CONTROL ARM, CV & TIE ROD ANGLES
• INCREASED SUSPENSION TRAVEL, TIRE & GROUND CLEARANCE
• GM STAILITRAK APPROVED
• THIS KIT ALSO INCLUDES FENDER LINER BRACKETS TO HELP IMPROVE TIRE CLEARANCE
• FABRICATED PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH
• NO WELDING REQUIRED
• REDUCED INSTALL TIME WHEN COMPARED TO OTHER MANUFACTURERS KITS
• CST SUPERIOR QUALITY FIT, FUNCTION AND FINISH
• IMPROVED HANDLING
• KIT RETAINS THE O.E. LOAD RATING/TOW CAPACITY
• ABILITY TO PUT BACK TO STOCK
• LEVEL STANCE WITHOUT SACRIFICING RIDE QUALITY
• CLEARS UP TO 35″ TIRES
• PROUDLY MADE IN THE U.S.A.

WHEEL & TIRES SPECS

• 17″ WHEEL 4.75 BACKSPACING WITH 33″ TIRE NO TRIMMING
• 17″ WHEEL 5.7″ BACKSPACING WITH 35″ TIRE MINOR TRIMMING
• 17″ WHEEL 4.75 BACKSPACING WITH 35″ TIRE MINOR TRIMMING

5.7″ MAX BACK SPACING / FACTORY WHEELS & TIRES WILL WORK.
