2019-2024 1500 TrailBoss & AT4 4WD | Stage 2 Leveling Kit

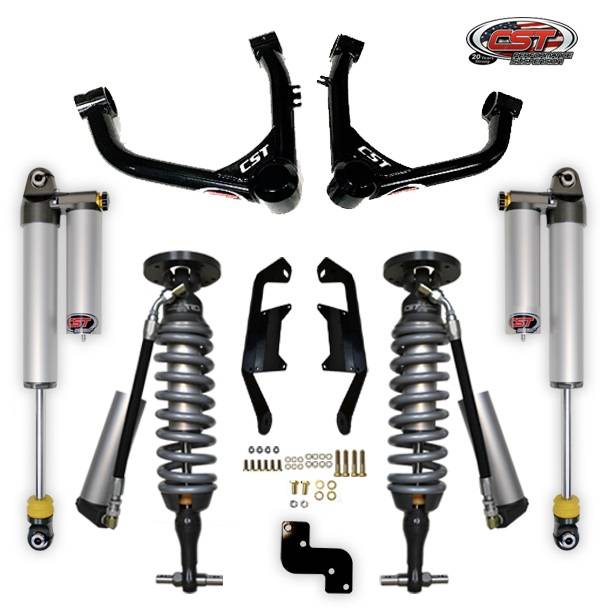

CSK-G52L-2 | 2019+ TrailBoss/AT4 | STAGE 2 LEVELING SYSTEM

• CSS-C2-18 | CST UNIBALL UCA KIT
• CSS-C17-1 | 2019+ GM/CHEVY 1500 FENDER CLEARANCE MOUNTS

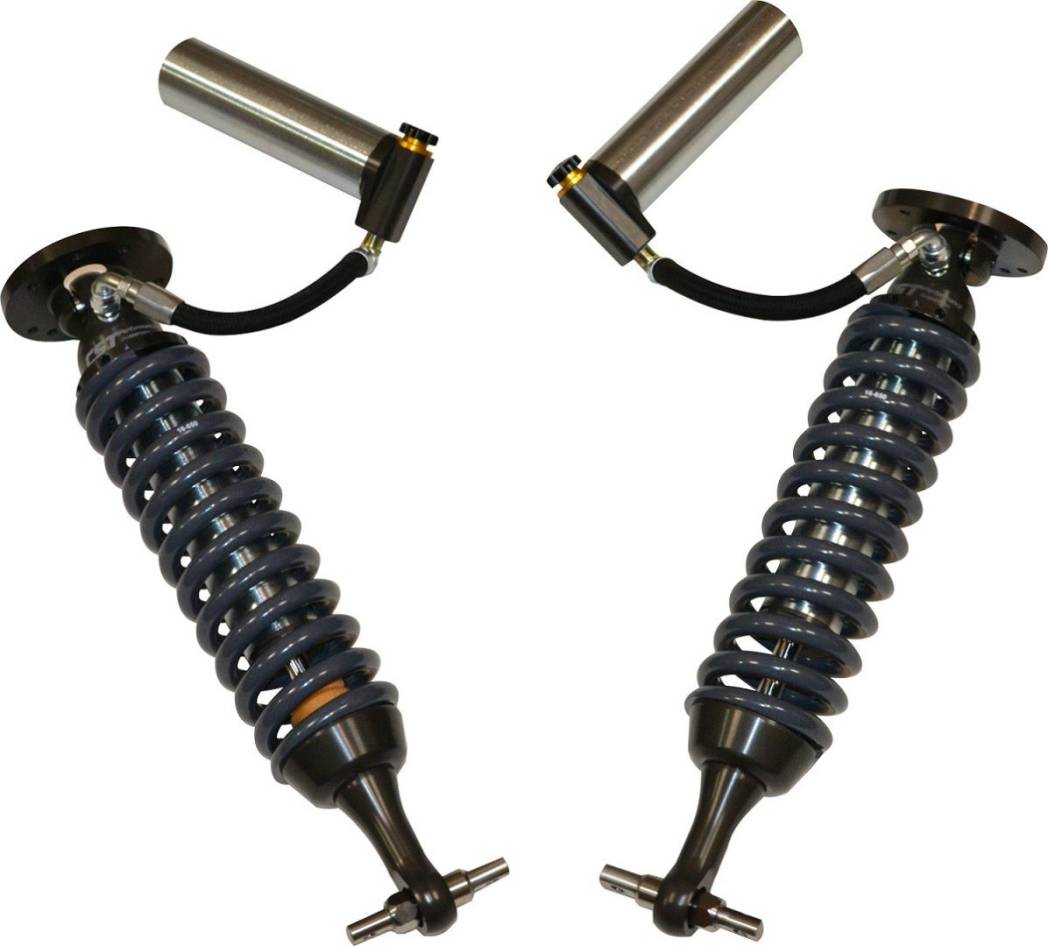

• CSA-4511 | PRO-SERIES 2.5 ADJ. COILOVERS (pair) w/ RESERVOIR MOUNTING BRACKETS

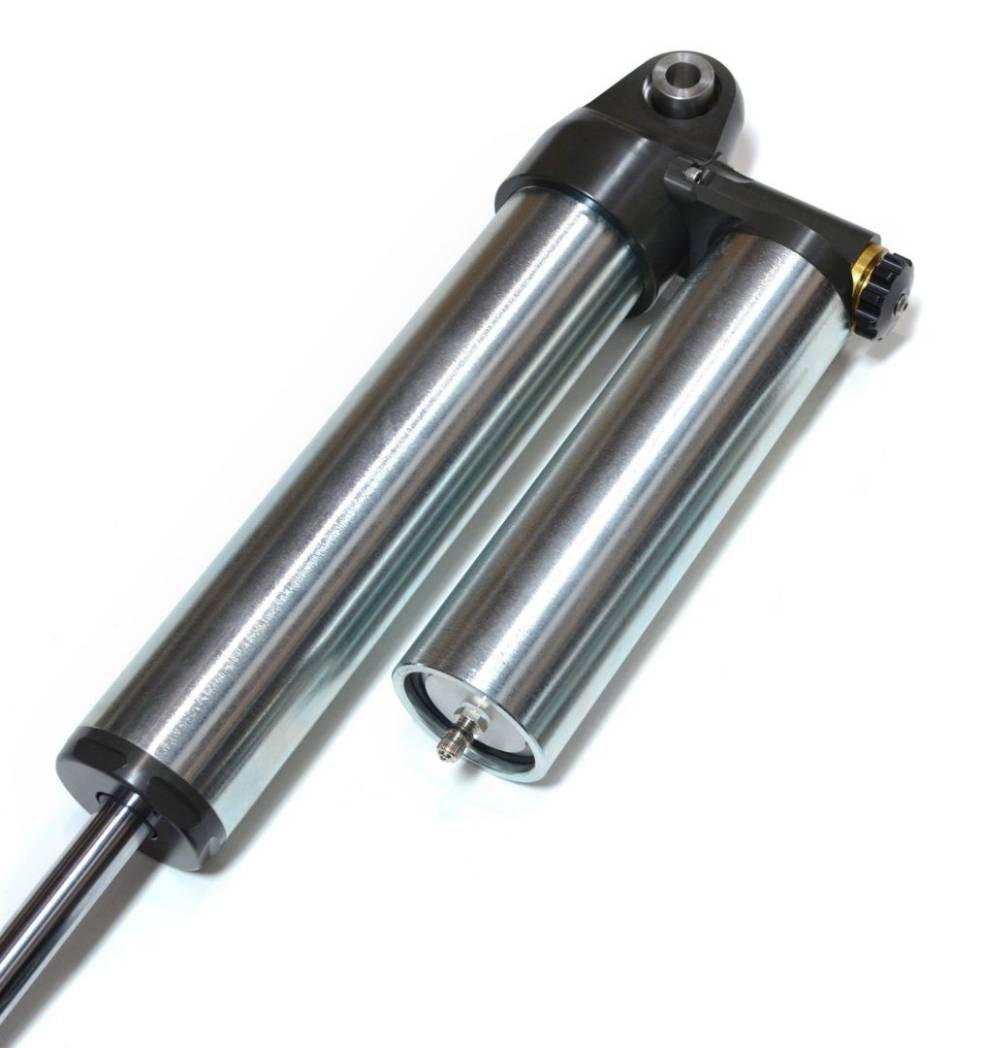

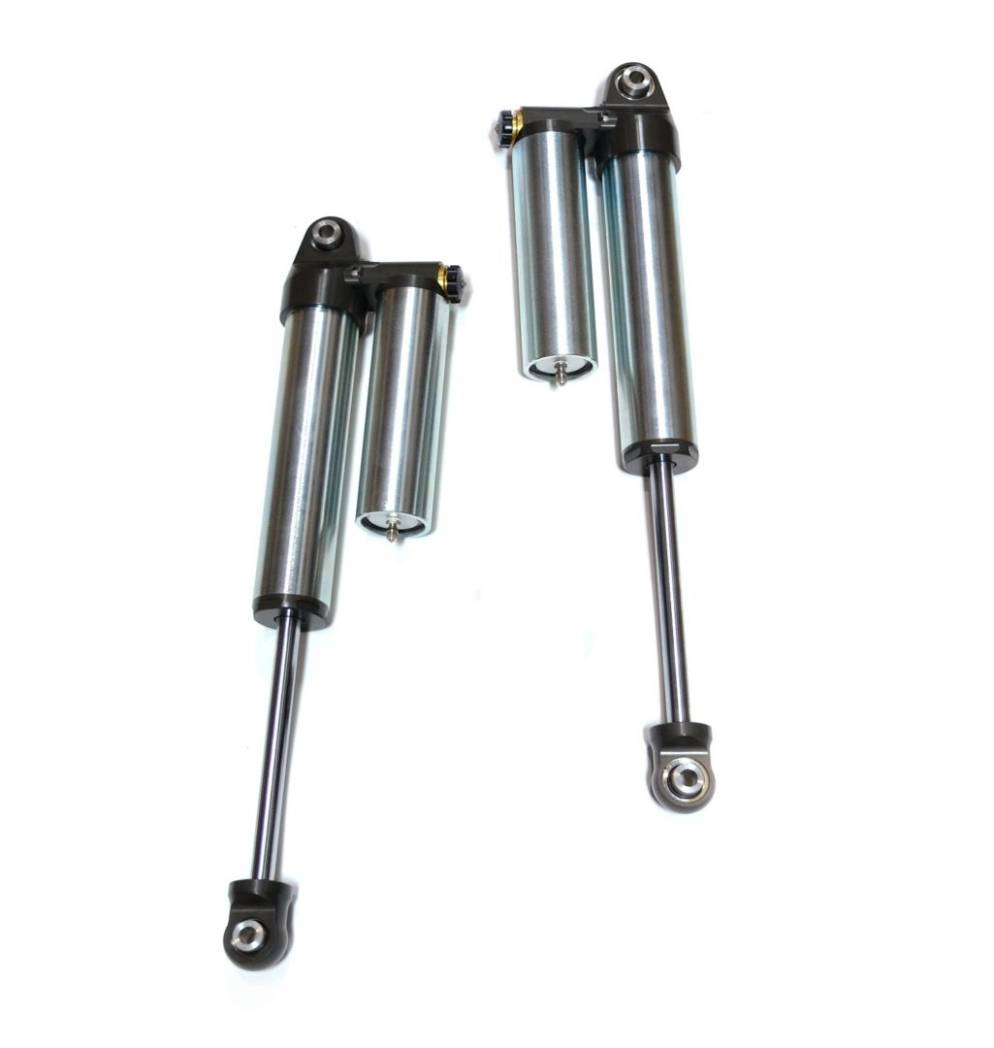

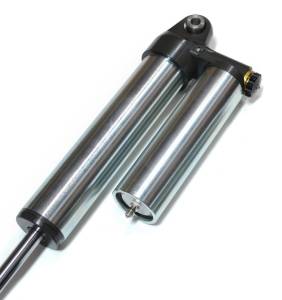

• CSA-7506 | PRO-SERIES 2.5 ADJ. PIGGYBACK SHOCKS (pair)

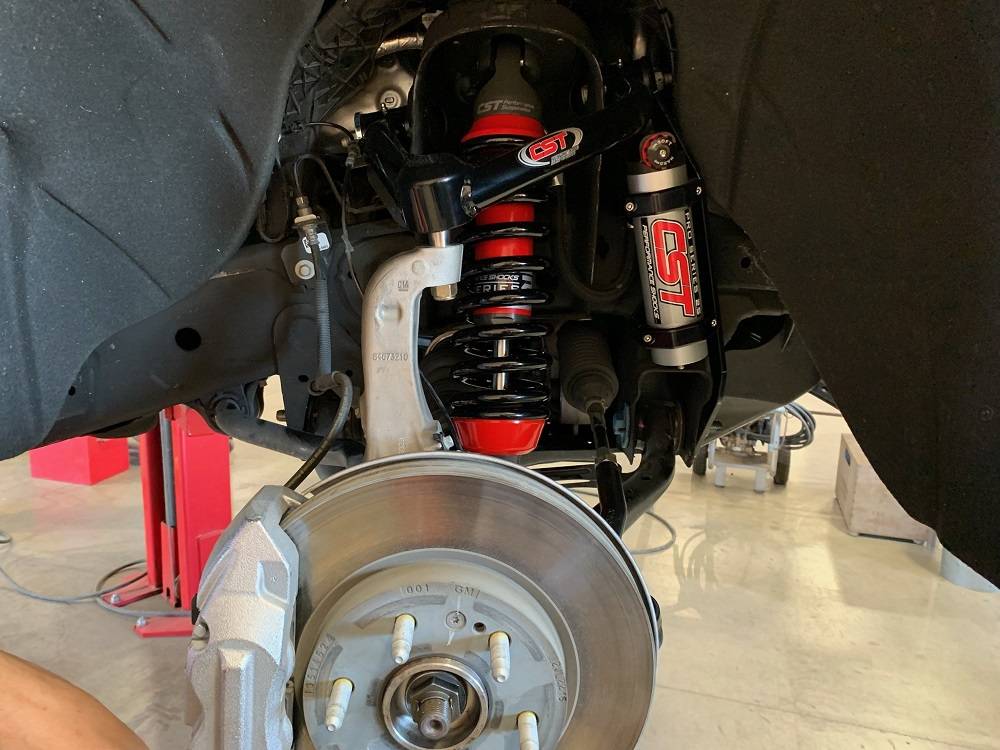

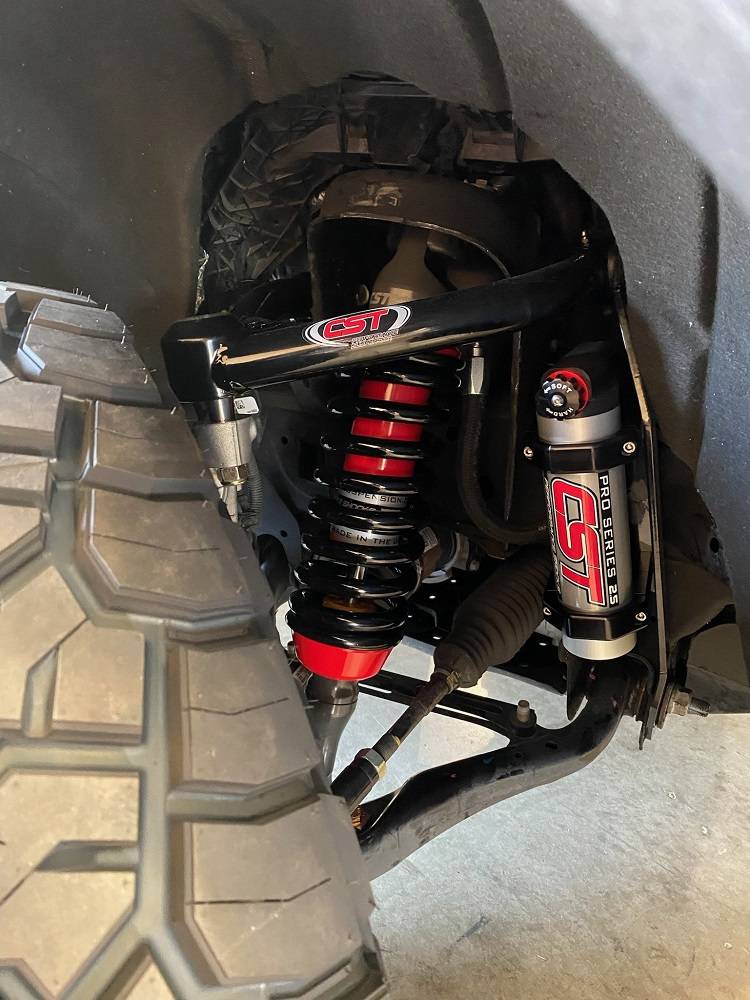

This suspension system includes CST Uniball UCA’s, Pro-Series 2.5 adjustable front coilovers & 2.5 adjustable rear shocks, front reservoir mounts (see install photos) plus all other necessary hardware for installation.

KIT FEATURES

• CST 2.5 PRO-SERIES COILOVERS w/ COMPRESSION ADJUSTERS
• 6063 ALUMINUM 2.5 ANODIZED BODIES
• 3/4″ HARDENED & CHROME PLATED SHOCK SHAFTS
• EIBACH COIL SPRINGS
• PTFE LINED FK BEARINGS
• BUILT IN HOUSE TO PROVIDE THE BEST OVER-ALL RIDE QUALITY FOR A DAILY DRIVER

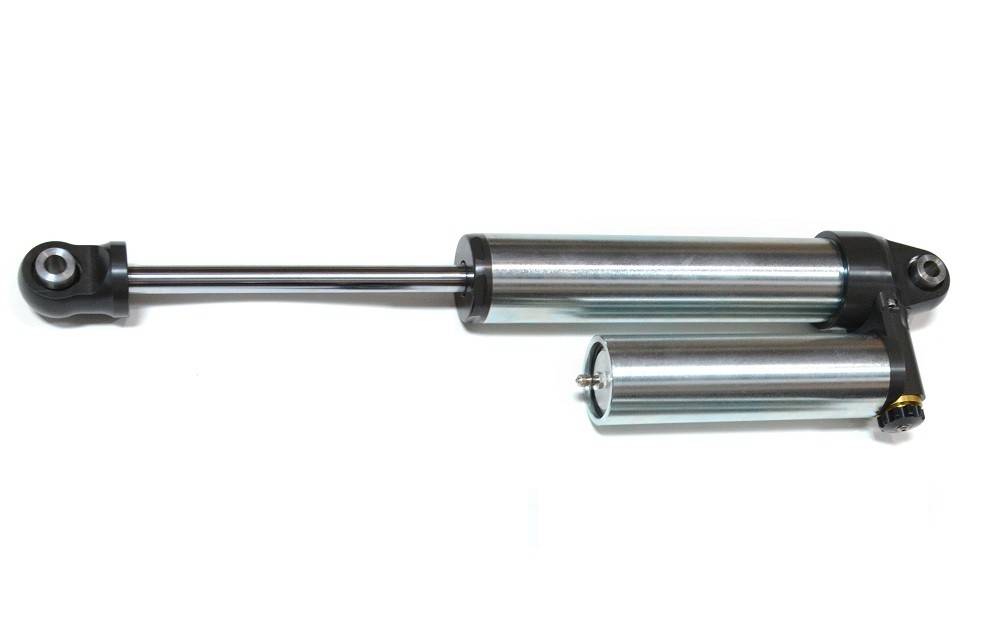

• CST 2.5 PRO-SERIES REAR PIGGY-BACK SHOCKS w/ COMPRESSION ADJUSTERS
• 6063 ALUMINUM 2.5 ANODIZED BODIES
• 3/4″ HARDENED & CHROME PLATED SHOCK SHAFTS
• HARD ANODIZED SHOCK ENDS
• ALL CST SHOCKS & COILOVERS ARE RE-BUILDABLE
• UCA w/ CLOSED CST CUP TO REDUCE UNIBALL EXPOSURE
• REMOVABLE UNIBALL FOR SERVICE & REPLACEMENT
• GUSSETED UCA PIVOT FOR ADDITIONAL STRENGTH
• IMPROVED UPPER JOINT ANGLE/DOWN TRAVEL
• NO NEED TO CUT/MODIFY THE UCA POCKET
• SUPERIOR CONTROL ARM, CV & TIE ROD ANGLES
• INCREASED SUSPENSION TRAVEL, TIRE & GROUND CLEARANCE
• GM STAILITRAK APPROVED
• THIS KIT ALSO INCLUDES FENDER LINER BRACKETS TO HELP IMPROVE TIRE CLEARANCE
• FABRICATED PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH
• NO WELDING REQUIRED
• REDUCED INSTALL TIME WHEN COMPARED TO OTHER MANUFACTURERS KITS
• CST SUPERIOR QUALITY FIT, FUNCTION AND FINISH
• IMPROVED HANDLING
• KIT RETAINS THE O.E. LOAD RATING/TOW CAPACITY
• ABILITY TO PUT BACK TO STOCK
• LEVEL STANCE WITHOUT SACRIFICING RIDE QUALITY
• CLEARS UP TO 35″ TIRES
• PROUDLY MADE IN THE U.S.A.

WHEEL & TIRES SPECS

• 17″ WHEEL 4.75 BACKSPACING WITH 33″ TIRE NO TRIMMING
• 17″ WHEEL 5.7″ BACKSPACING WITH 35″ TIRE MINOR TRIMMING
• 17″ WHEEL 4.75 BACKSPACING WITH 35″ TIRE MINOR TRIMMING

5.7″ MAX BACK SPACING / FACTORY WHEELS & TIRES WILL WORK.
