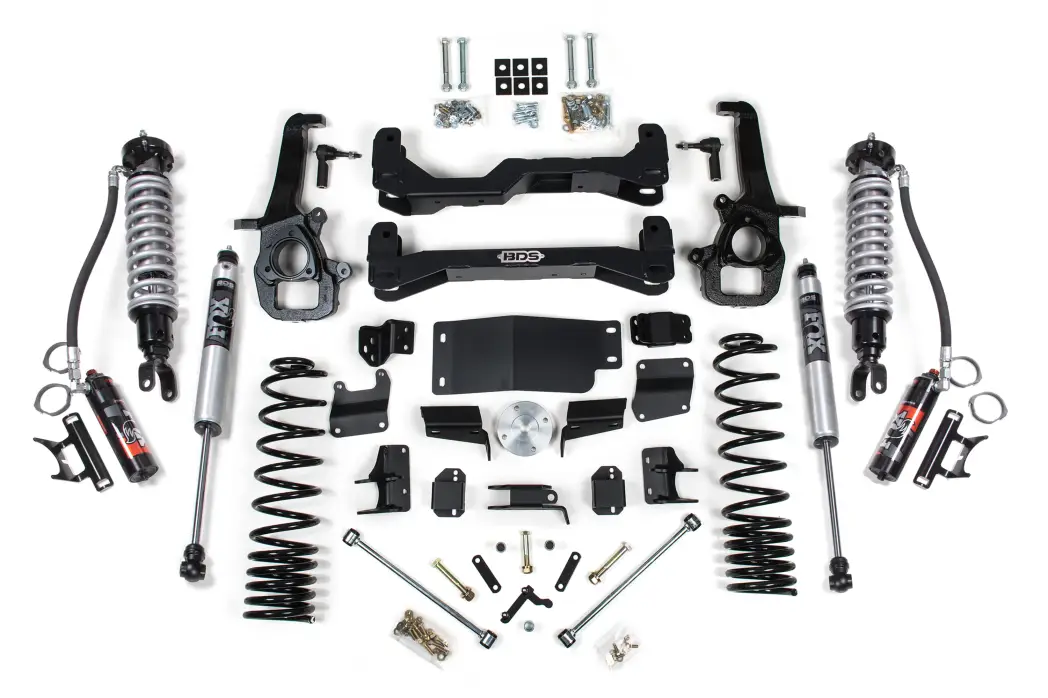

BDS1661FPE | BDS Suspension 6 Inch Lift Kit With Fox 2.5 Performance Elite Coilovers For Dodge Ram 1500 4WD (2019-2024) | OE Knuckle Standard Type, Rear Fox 2.0 Performance Series Shocks

6 Inch Lift Kit With Fox 2.5 Performance Elite Coilovers For Dodge Ram 1500 4WD (2019-2024) | OE Knuckle Standard Type, Rear Fox 2.0 Performance Series Shocks

BDS1661FPE
Pricing: $7,524.84
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Hit the trails in your 2019-2024 RAM 1500 truck after installing a 6-inch coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
  • DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

OE Knuckle Type

RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.

Important Notes

  1. Fits 4WD models only
  2. RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  3. Will NOT fit adjustable "air ride" suspension equipped models.
  4. 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" now low.
  5. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  6. Will NOT work on diesel models
  7. Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
  8. Vehicles equipped with Offroad or Rebel Package will not achieve the full 6" of lift, net ride height change will be around 5" above stock.
  9. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.

Installation

Est. Install Time :

12 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Reciprocating Saw

Specification

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram1500Big Horn4WDALLALLALL
2019Ram1500Laramie4WDALLALLALL
2019Ram1500Laramie Longhorn4WDALLALLALL
2019Ram1500Laramie Sport4WDALLALLALL
2019Ram1500Limited4WDALLALLALL
2019Ram1500Lone Star4WDALLALLALL
2019Ram1500Longhorn4WDALLALLALL
2019Ram1500SLT4WDALLALLALL
2019Ram1500ST4WDALLALLALL
2019Ram1500SXT4WDALLALLALL
2019Ram1500Sport4WDALLALLALL
2019Ram1500Tradesman4WDALLALLALL
2020Ram1500Big Horn4WDALLALLALL
2020Ram1500Hemi Sport4WDALLALLALL
2020Ram1500Laramie4WDALLALLALL
2020Ram1500Laramie Longhorn4WDALLALLALL
2020Ram1500Laramie Sport4WDALLALLALL
2020Ram1500Limited4WDALLALLALL
2020Ram1500Lone Star4WDALLALLALL
2020Ram1500Longhorn4WDALLALLALL
2020Ram1500SLT4WDALLALLALL
2020Ram1500Special Service4WDALLALLALL
2020Ram1500Sport4WDALLALLALL
2020Ram1500Tradesman4WDALLALLALL
2021Ram1500Big Horn4WDALLALLALL
2021Ram1500Hemi Sport4WDALLALLALL
2021Ram1500Laramie4WDALLALLALL
2021Ram1500Laramie Longhorn4WDALLALLALL
2021Ram1500Laramie Sport4WDALLALLALL
2021Ram1500Limited4WDALLALLALL
2021Ram1500Limited Longhorn4WDALLALLALL
2021Ram1500Lone Star4WDALLALLALL
2021Ram1500Longhorn4WDALLALLALL
2021Ram1500SLT4WDALLALLALL
2021Ram1500Special Service4WDALLALLALL
2021Ram1500Sport4WDALLALLALL
2021Ram1500Tradesman4WDALLALLALL
2022Ram1500Big Horn4WDALLALLALL
2022Ram1500HFE4WDALLALLALL
2022Ram1500Hemi Sport4WDALLALLALL
2022Ram1500Laramie4WDALLALLALL
2022Ram1500Laramie Sport4WDALLALLALL
2022Ram1500Limited4WDALLALLALL
2022Ram1500Limited Longhorn4WDALLALLALL
2022Ram1500Lone Star4WDALLALLALL
2022Ram1500Longhorn4WDALLALLALL
2022Ram1500SLT4WDALLALLALL
2022Ram1500Sport4WDALLALLALL
2022Ram1500Tradesman4WDALLALLALL
2023Ram1500Big Horn4WDALLALLALL
2023Ram1500Laramie4WDALLALLALL
2023Ram1500Limited4WDALLALLALL
2023Ram1500Limited Longhorn4WDALLALLALL
2023Ram1500Lone Star4WDALLALLALL
2023Ram1500Tradesman4WDALLALLALL
2024Ram1500Big Horn4WDALLALLALL
2024Ram1500HFE4WDALLALLALL
2024Ram1500Laramie4WDALLALLALL
2024Ram1500Limited4WDALLALLALL
2024Ram1500Limited Longhorn4WDALLALLALL
2024Ram1500Lone Star4WDALLALLALL
2024Ram1500Tradesman4WDALLALLALL

Component List

1 BDS022632 2019-2023 Ram 1500 Knuckle Box Kit - DRV
1 BDS022633 2019-2023 Ram 1500 Knuckle Box Kit - PASS
1 BDS022642 2019-2023 Ram Front Box Kit 1 of 2
1 BDS022643 2019-2023 Ram Front Box Kit 2 of 2
1 BDS022508 2019-2023 Ram 1500 Rear Box Kit
1 BDS032508 2019-2023 Ram 1500 5in Rear Coil Box Kit
1 FOX88406335 Kit: BDS 19-0N Ram 1500, Front Coilover, 2.5 Truck PES, R/R, 6” Lift, DSC
2 FOX98224751 Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
