BDS1664FPE | BDS Suspension 2 Inch Lift Kit With Fox 2.5 Performance Elite Coilovers For Dodge Ram 1500 4WD (2019-2024) | Rear Fox 2.0 Performance Series Shocks
2 Inch Lift Kit With Fox 2.5 Performance Elite Coilovers For Dodge Ram 1500 4WD (2019-2024) | Rear Fox 2.0 Performance Series Shocks
Description

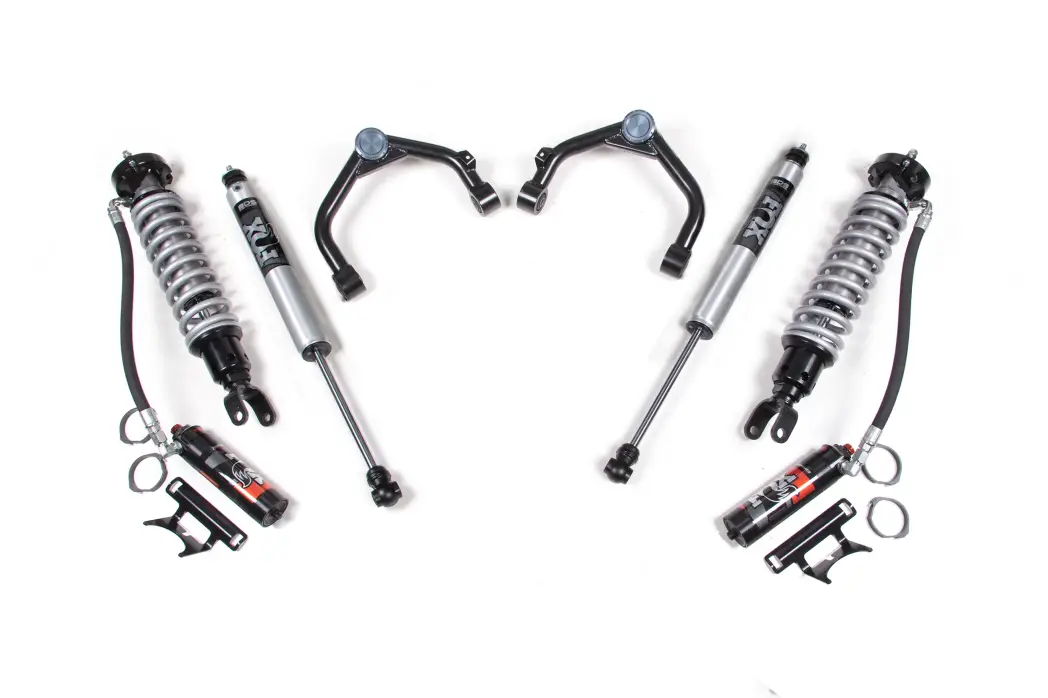

Up the ante in your 2019-2024 RAM 1500 4WD truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
Features & Benefits
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 295 / 65 with 20 x 9 and 5 in. Backspace
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Important Notes
- Fits 4WD models only
- Vehicles equipped with "Offroad or Rebel Package" will not achieve full 2" of lift, net ride height change will be around 1" above stock.
- Will not fit vehicle equipped with factory Air Ride.
- Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
Installation
Est. Install Time :
3-4 hrsDifficulty Level :
EasySpecialty Tools Needed :
N/A
Specification
- Front Lift Method : Coil-Over
- Rear Lift Method : Stock
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 0"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2019 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Laramie Sport | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Longhorn | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Hemi Sport | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Laramie Sport | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Longhorn | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Hemi Sport | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Laramie Sport | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Limited Longhorn | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Longhorn | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | HFE | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Hemi Sport | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Laramie Sport | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Limited Longhorn | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Longhorn | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2022 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Limited Longhorn | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2023 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | HFE | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Limited Longhorn | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2024 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
Component List
1 FOX88306165 Kit: 19-ON Ram 1500, Front Coilover, 2.5 Truck PES, R/R, 2" Lift, DSC
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
Tires & Wheels
33 x 12.5 with 20 x 9 and 4.5 in. Backspace
295 / 65 with 20 x 9 and 5 in. Backspace
Details
- BDS1664FPE
- BDS1664FPE
- 840416406290
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
