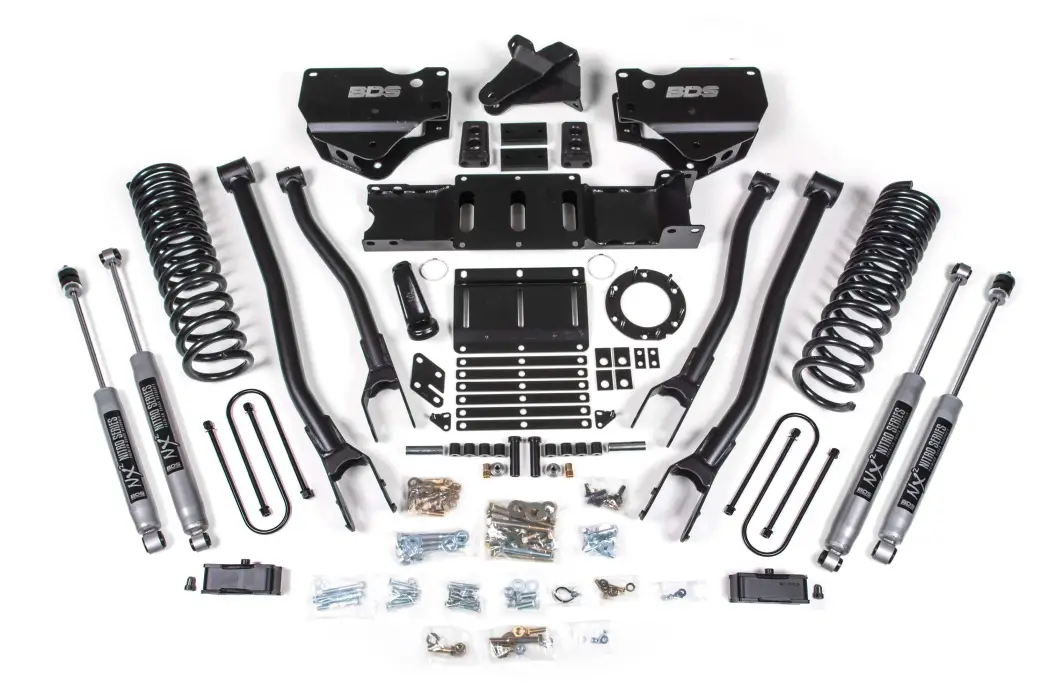

BDS1672H | BDS Suspension 4 Inch Lift Kit With 4 Link For Dodge Ram 3500 4WD (2019-2024) | Diesel | 8 Bolt Indexing Ring, NX2 Nitro Series Shocks

Indexing Ring Option

6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab’s with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
