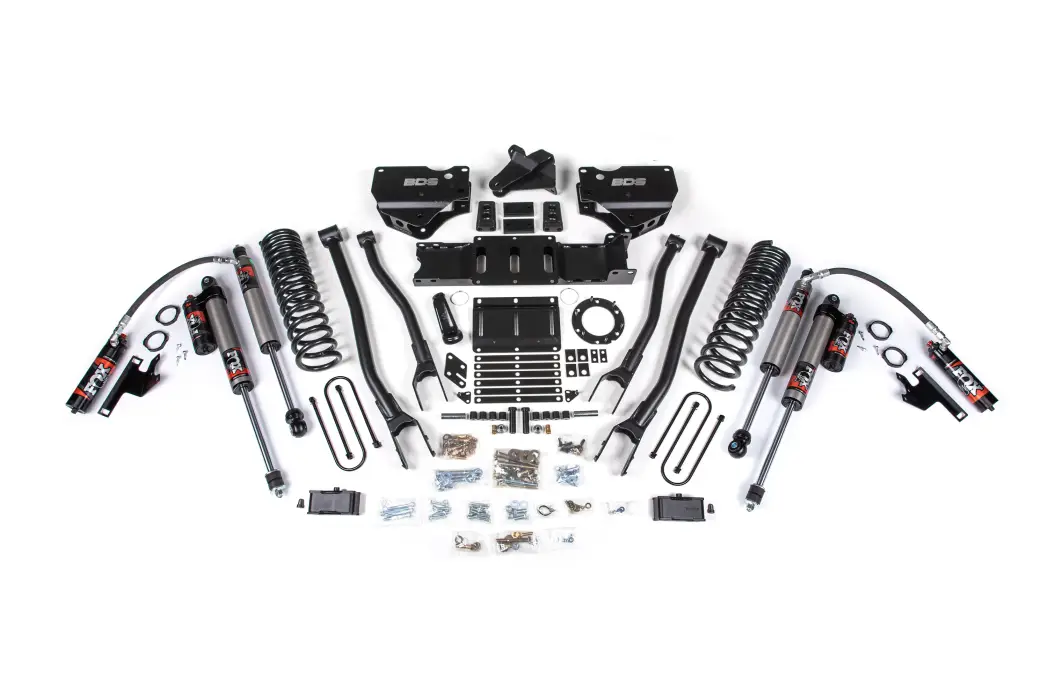

BDS1679FPE | BDS Suspension 4 Inch Lift Kit With 4 Link For Ram 3500 4WD (2019-2024) | Gas | Rear Lift With Factory Overload Leaf, Fox 2.5 Performance Elite Shocks

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Rear Lift Option

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Indexing Ring

6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
2.  Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
3. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Specification

• Front Lift Method : 4-Link
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 4"
• Rear Lift Height : 2"
