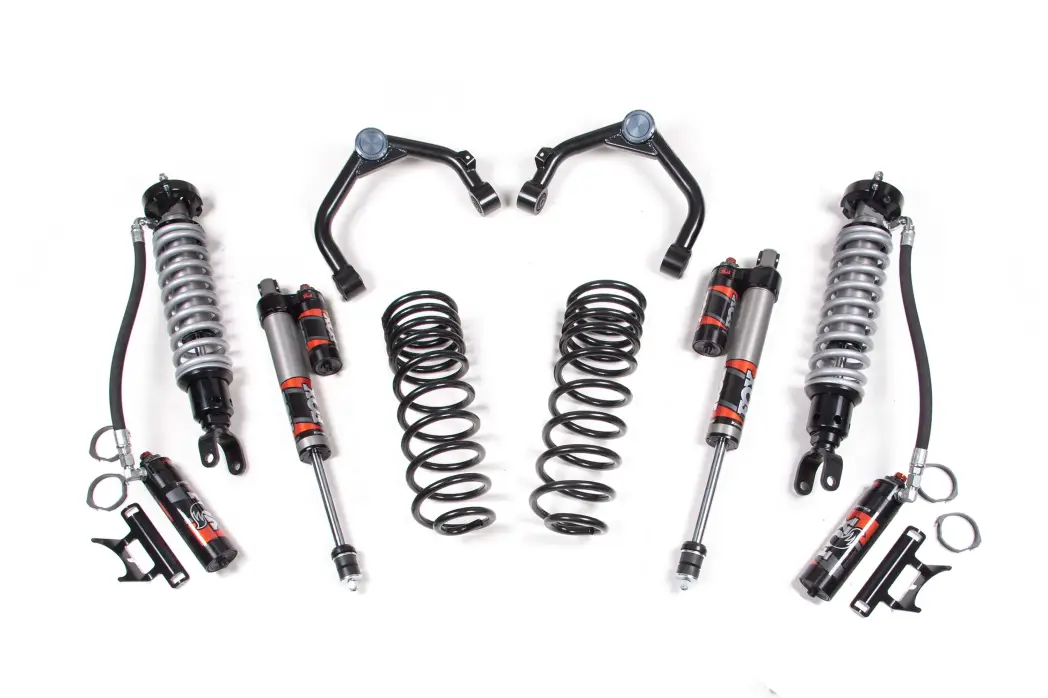

BDS1708FPE | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Coil Over For Ram 1500 4WD (2019-2024) | Rear Fox 2.5 Performance Elite Shocks

3 Inch Lift Kit With Fox 2.5 Performance Elite Coil Over For Ram 1500 4WD (2019-2024) | Rear Fox 2.5 Performance Elite Shocks

BDS1708FPE
Pricing: $6,411.27
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Up the ante in your 2019-2024 RAM 1500 4WD truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear the stance is leveled out with a pair of 1.5" dual rate coil springs designed for exceptional ride quality and additional load capacity over stock. Your choice of rear FOX 2.0 Performance Series IFP gas shocks or upgrade FOX 2.5 Performance Elite Series DSC reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail.

Features & Benefits

  • FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
  • DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5 in. Backspace

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Important Notes

  1. Will not work with stock rims with a 12.50" wide tire, the tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock-size tire ONLY!
  2. The ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. The ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise, damage may occur
  3. Vehicles equipped with Offroad or Rebel Package will not achieve the full 3" of lift, net ride height change will be around 2" above stock.

Installation

Est. Install Time :

3-4 hrs

Difficulty Level :

Easy

Specialty Tools Needed :

Torque Wrench, Ball Joint Separation Tool


Specification

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 3"
  • Rear Lift Height : 1.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram1500Big Horn4WDALLALLALL
2019Ram1500Laramie4WDALLALLALL
2019Ram1500Laramie Longhorn4WDALLALLALL
2019Ram1500Laramie Sport4WDALLALLALL
2019Ram1500Limited4WDALLALLALL
2019Ram1500Lone Star4WDALLALLALL
2019Ram1500Longhorn4WDALLALLALL
2019Ram1500SLT4WDALLALLALL
2019Ram1500ST4WDALLALLALL
2019Ram1500SXT4WDALLALLALL
2019Ram1500Sport4WDALLALLALL
2019Ram1500Tradesman4WDALLALLALL
2019Ram1500 RebelALL4WDALLALLALL
2020Ram1500Big Horn4WDALLALLALL
2020Ram1500Hemi Sport4WDALLALLALL
2020Ram1500Laramie4WDALLALLALL
2020Ram1500Laramie Longhorn4WDALLALLALL
2020Ram1500Laramie Sport4WDALLALLALL
2020Ram1500Limited4WDALLALLALL
2020Ram1500Lone Star4WDALLALLALL
2020Ram1500Longhorn4WDALLALLALL
2020Ram1500SLT4WDALLALLALL
2020Ram1500Special Service4WDALLALLALL
2020Ram1500Sport4WDALLALLALL
2020Ram1500Tradesman4WDALLALLALL
2020Ram1500 RebelALL4WDALLALLALL
2021Ram1500Big Horn4WDALLALLALL
2021Ram1500Hemi Sport4WDALLALLALL
2021Ram1500Laramie4WDALLALLALL
2021Ram1500Laramie Longhorn4WDALLALLALL
2021Ram1500Laramie Sport4WDALLALLALL
2021Ram1500Limited4WDALLALLALL
2021Ram1500Limited Longhorn4WDALLALLALL
2021Ram1500Lone Star4WDALLALLALL
2021Ram1500Longhorn4WDALLALLALL
2021Ram1500SLT4WDALLALLALL
2021Ram1500Special Service4WDALLALLALL
2021Ram1500Sport4WDALLALLALL
2021Ram1500Tradesman4WDALLALLALL
2021Ram1500 RebelALL4WDALLALLALL
2022Ram1500Big Horn4WDALLALLALL
2022Ram1500HFE4WDALLALLALL
2022Ram1500Hemi Sport4WDALLALLALL
2022Ram1500Laramie4WDALLALLALL
2022Ram1500Laramie Sport4WDALLALLALL
2022Ram1500Limited4WDALLALLALL
2022Ram1500Limited Longhorn4WDALLALLALL
2022Ram1500Lone Star4WDALLALLALL
2022Ram1500Longhorn4WDALLALLALL
2022Ram1500SLT4WDALLALLALL
2022Ram1500Sport4WDALLALLALL
2022Ram1500Tradesman4WDALLALLALL
2022Ram1500 RebelALL4WDALLALLALL
2023Ram1500Big Horn4WDALLALLALL
2023Ram1500Laramie4WDALLALLALL
2023Ram1500Limited4WDALLALLALL
2023Ram1500Limited Longhorn4WDALLALLALL
2023Ram1500Lone Star4WDALLALLALL
2023Ram1500Tradesman4WDALLALLALL
2024Ram1500Big Horn4WDALLALLALL
2024Ram1500HFE4WDALLALLALL
2024Ram1500Laramie4WDALLALLALL
2024Ram1500Limited4WDALLALLALL
2024Ram1500Limited Longhorn4WDALLALLALL
2024Ram1500Lone Star4WDALLALLALL
2024Ram1500Tradesman4WDALLALLALL
2024Ram1500 RebelALL4WDALLALLALL

Component List

1 BDS012315 2019-2023 Ram 1500 3in Performance Lift Box Kit
1 FOX88306166 Kit: 19-ON Ram 1500 w/ UCA, Front Coilover, 2.5 Truck PES, R/R, 2-3" Lift, DSC
1 FOX88326079 Kit: 19-ON Ram 1500, Rear, 2.5 Truck PES, P/B, 0-2" Lift, DSC

Tire & Wheels

(Trimming may be required)
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
