BDS1710FS | BDS Suspension 2 Inch Lift Kit For Ram 3500 4WD (2013-2024) With Rear Air Ride | Fox 2.0 Performance Series Shocks

2 Inch Lift Kit For Ram 3500 4WD (2013-2024) With Rear Air Ride | Fox 2.0 Performance Series Shocks

BDS1710FS
Pricing: $1,878.59
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level the front of your 2013-2023 RAM 3500 4WD truck by installing this 2-inch lift kit from BDS. Works on air ride equipped trucks only. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires at an affordable price. The lift kit includes steel fabricated coil spacers, extended bump stops, rear lift blocks, air bag spacer, and custom-tuned NX2 Nitro or FOX 2.0 Performance series shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Fits OE equiped air ride systems only

Installation

Est. Install Time :

3-4 hrs

Difficulty Level :

Easy

Specialty Tools Needed :

N/A

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Blocks
  • Shocks Included : Yes
  • Front Lift Height : 2"
  • Rear Lift Height : 1"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2013Ram3500ALL4WDALLALLALL
2014Ram3500ALL4WDALLALLALL
2015Ram3500ALL4WDALLALLALL
2016Ram3500ALL4WDALLALLALL
2017Ram3500ALL4WDALLALLALL
2018Ram3500ALL4WDALLALLALL
2019Ram3500ALL4WDALLALLALL
2020Ram3500ALL4WDALLALLALL
2021Ram3500ALL4WDALLALLALL
2022Ram3500ALL4WDALLALLALL
2023Ram3500ALL4WDALLALLALL
2024Ram3500Big Horn4WDDIESELALLALL
2024Ram3500Big Horn4WDDIESELALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Big Horn4WDDIESELALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Laramie4WDDIESELALLALL
2024Ram3500Laramie4WDGASALLALL
2024Ram3500Laramie4WDGASALLALL
2024Ram3500Laramie4WDDIESELALLALL
2024Ram3500Limited4WDGASALLALL
2024Ram3500Limited4WDGASALLALL
2024Ram3500Limited4WDDIESELALLALL
2024Ram3500Limited4WDDIESELALLALL
2024Ram3500Limited Longhorn4WDGASALLALL
2024Ram3500Limited Longhorn4WDDIESELALLALL
2024Ram3500Limited Longhorn4WDDIESELALLALL
2024Ram3500Limited Longhorn4WDGASALLALL
2024Ram3500Tradesman4WDGASALLALL
2024Ram3500Tradesman4WDDIESELALLALL
2024Ram3500Tradesman4WDGASALLALL
2024Ram3500Tradesman4WDDIESELALLALL

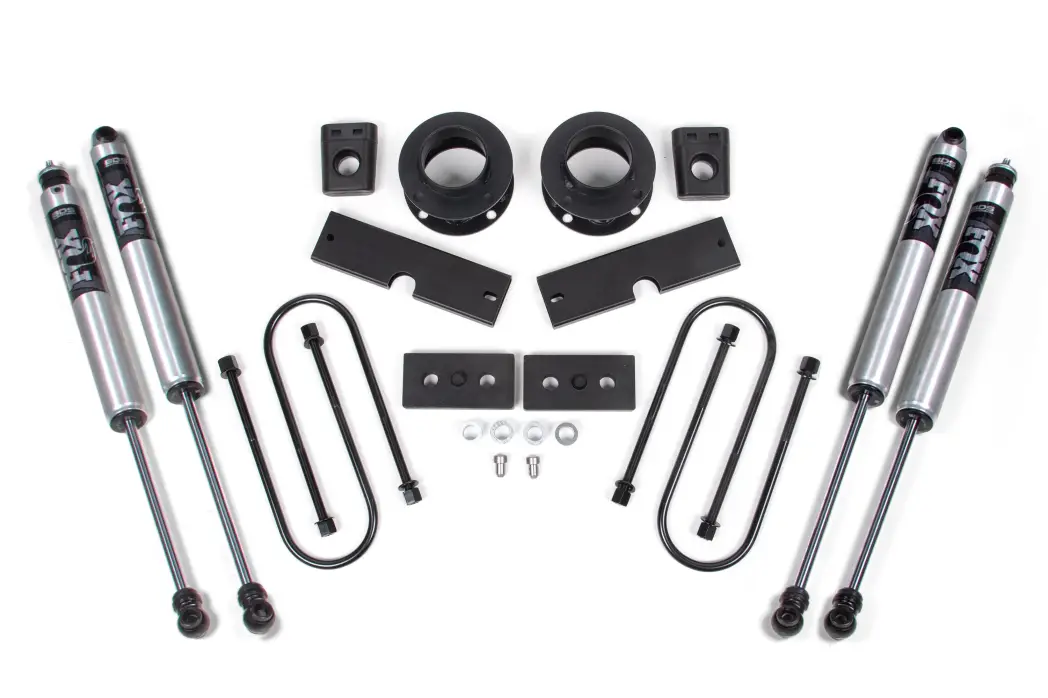

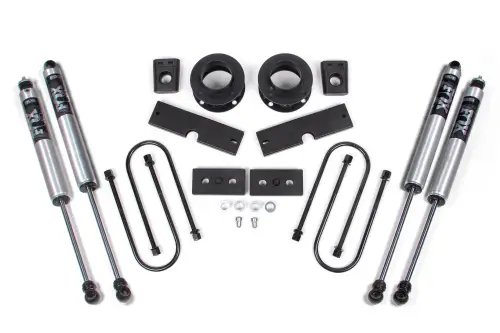

Component List

1 BDS012203 2014-2024 Ram 2500 / 2013-2024 Ram 3500 2" Leveling Kit
1 BDS012106 2013-2024 Ram 3500 Rear 1" Air Lift Kit
2 FOX98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
2 FOX98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Tire & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
