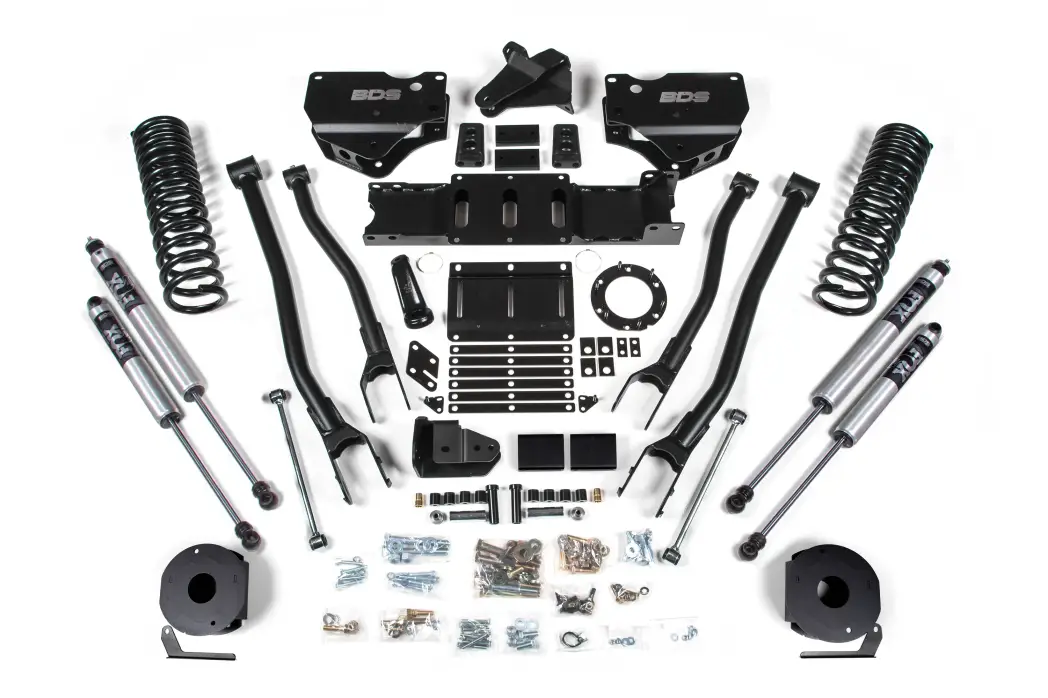

BDS1715FS | BDS Suspension 4 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) With Rear Air Ride | Diesel | Fox 2.0 Performance Series Shocks

4 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) With Rear Air Ride | Diesel | Fox 2.0 Performance Series Shocks

BDS1715FS
Pricing: $4,822.10
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty rear air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Not for use with factory rear coil spring suspensions
  2. Will not fit RAM 2500 Powerwagon models
  3. Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit # 122406
  4. Will not fit Cab and Chassis models

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Spacer
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 3.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram2500ALL4WDDIESELALLALL
2020Ram2500ALL4WDDIESELALLALL
2021Ram2500ALL4WDDIESELALLALL
2022Ram2500ALL4WDDIESELALLALL
2023Ram2500Big Horn4WDDIESELALLALL
2023Ram2500Laramie4WDDIESELALLALL
2023Ram2500Laramie Longhorn4WDDIESELALLALL
2023Ram2500Limited4WDDIESELALLALL
2023Ram2500Limited Longhorn4WDDIESELALLALL
2023Ram2500Lone Star4WDDIESELALLALL
2023Ram2500Rebel4WDDIESELALLALL
2023Ram2500Tradesman4WDDIESELALLALL
2024Ram2500Big Horn4WDDIESELALLALL
2024Ram2500Laramie4WDDIESELALLALL
2024Ram2500Laramie Longhorn4WDDIESELALLALL
2024Ram2500Limited4WDDIESELALLALL
2024Ram2500Limited Longhorn4WDDIESELALLALL
2024Ram2500Lone Star4WDDIESELALLALL
2024Ram2500Rebel4WDDIESELALLALL
2024Ram2500Tradesman4WDDIESELALLALL

Component List

1 BDS012358 2019-2024 Ram 2500 3.5" Rear Air Ride Box Kit
1 BDS012433 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2
1 BDS012434 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2
2 BDS032403 2019-2024 Ram 2500/3500 Coil 4" Diesel - 5.5" Gas
1 BDS122624 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel
2 FOX98224714 Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
2 FOX98224706 Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1

Tire & Wheels

(Trimming may be required)
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
