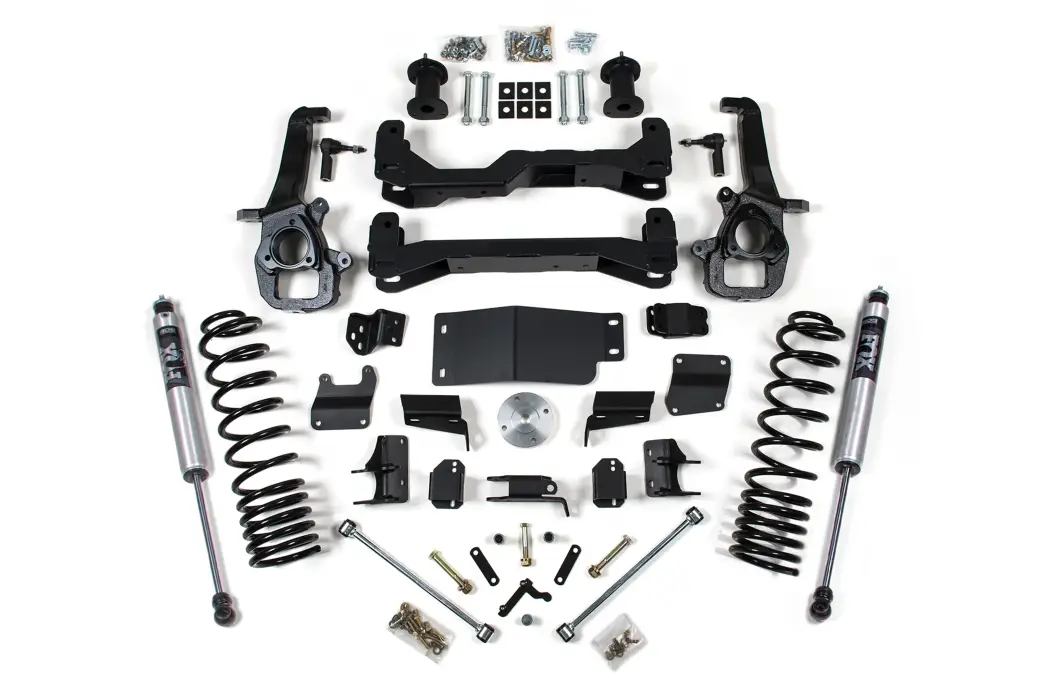

BDS1735FS | BDS Suspension 4 Inch Lift Kit For Ram 1500 Rebel 4WD (2019-2024) | Fox 2.0 Performance Series Shocks

4 Inch Lift Kit For Ram 1500 Rebel 4WD (2019-2024) | Fox 2.0 Performance Series Shocks

BDS1735FS
Pricing: $4,020.75
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the ride and style of your 2019-2024 RAM 1500 Rebel truck with a 4-inch suspension lift kit by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Fits 4WD models only
  2. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  3. Will NOT fit adjustable "air ride" suspension equipped models.
  4. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  5. Will NOT work on diesel models
  6. Will NOT fit 2019-2022 RAM 1500/Rebel Classic models, Refer to the 2018 kit listings.
  7. Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the 'Optional Equipment' section there will be a line item that reads 'Off-Road Group' if your truck is equipped.
  8. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
  9. IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE

Installation

Est. Install Time :

10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Reciprocating Saw

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram1500 RebelALL4WDALLALLALL
2020Ram1500 RebelALL4WDALLALLALL
2021Ram1500 RebelALL4WDALLALLALL
2022Ram1500 RebelALL4WDALLALLALL
2023Ram1500 RebelALL4WDALLALLALL
2024Ram1500 RebelALL4WDALLALLALL

Component List

1 BDS022632 2019-2023 Ram 1500 Knuckle Box Kit - DRV
1 BDS022633 2019-2023 Ram 1500 Knuckle Box Kit - PASS
1 BDS022642 2019-2023 Ram Front Box Kit 1 of 2
1 BDS022643 2019-2023 Ram Front Box Kit 2 of 2
1 BDS022404 2019-2023 Ram 1500 4in Strut Spacer Box Kit
1 BDS022508 2019-2023 Ram 1500 Rear Box Kit
1 BDS032508 2019-2023 Ram 1500 5in Rear Coil Box Kit
2 FOX98224751 Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
