BDS1738FS | BDS Suspension 6 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) With Rear Air Ride | Diesel | Fox 2.0 Performance Series Shocks
6 Inch Lift Kit With 4 Link For Ram 2500 4WD (2019-2024) With Rear Air Ride | Gas | Fox 2.0 Performance Series Shocks
Description
Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck that will surely impress. Works on trucks with factory rear air ride option. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Heavy duty 4-link arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 13.5 with 20 x 9 and 5.625 in. Backspace
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Fits OE equiped Air Ride systems only
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
N/A
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Spacer
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2019 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Laramie Limited | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2019 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Laramie Limited | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2020 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2021 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2022 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Rebel | 4WD | DIESEL | ALL | ALL |
2023 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Big Horn | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Laramie | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Limited | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Lone Star | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Rebel | 4WD | DIESEL | ALL | ALL |
2024 | Ram | 2500 | Tradesman | 4WD | DIESEL | ALL | ALL |

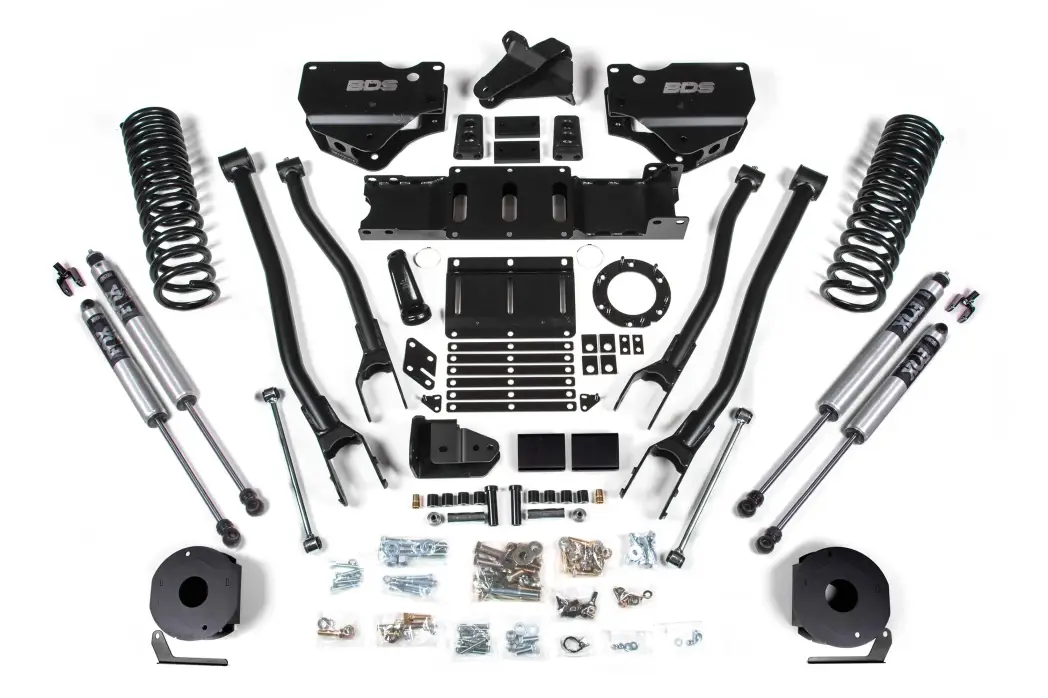

Component List
1 BDS012433 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2
1 BDS012434 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2
1 BDS032602 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6" Coils - Diesel
1 BDS122624 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel
2 FOX98224714 Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
2 FOX98224753 Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
Tires & Wheels
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 13.5 with 20 x 9 and 5.625 in. Backspace
Details
- BDS1738FS
- BDS1738FS
- 840416408195
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
