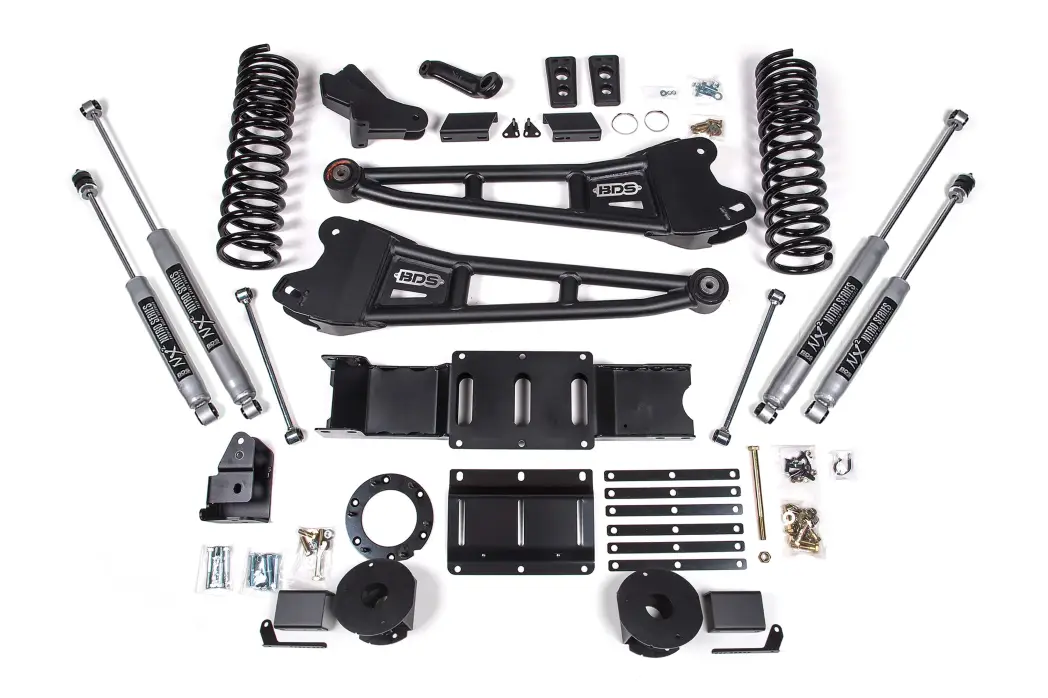

BDS1737H | BDS Suspension 5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD (2019-2024) With Rear Air Ride | Gas | NX2 Nitro Series Shocks

5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD (2019-2024) With Rear Air Ride | Gas | NX2 Nitro Series Shocks

BDS1737H
Pricing: $3,157.62
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your rear air ride equipped RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop
  2. Fits OE equiped Air Ride systems only

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Spacer
  • Shocks Included : Yes
  • Front Lift Height : 5.5"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram2500Big HornALLGASALLALL
2019Ram2500HD LimitedALLGASALLALL
2019Ram2500LaramieALLGASALLALL
2019Ram2500Laramie LimitedALLGASALLALL
2019Ram2500Laramie LonghornALLGASALLALL
2019Ram2500LimitedALLGASALLALL
2019Ram2500Lone StarALLGASALLALL
2019Ram2500R/TALLGASALLALL
2019Ram2500SLTALLGASALLALL
2019Ram2500SLT HDALLGASALLALL
2019Ram2500SportALLGASALLALL
2019Ram2500TradesmanALLGASALLALL
2020Ram2500Big HornALLGASALLALL
2020Ram2500HD LimitedALLGASALLALL
2020Ram2500HD Limited RamboxALLGASALLALL
2020Ram2500LaramieALLGASALLALL
2020Ram2500Laramie LimitedALLGASALLALL
2020Ram2500Laramie LonghornALLGASALLALL
2020Ram2500LimitedALLGASALLALL
2020Ram2500Lone StarALLGASALLALL
2020Ram2500SLT HDALLGASALLALL
2020Ram2500TradesmanALLGASALLALL
2021Ram2500Big HornALLGASALLALL
2021Ram2500HD LimitedALLGASALLALL
2021Ram2500LaramieALLGASALLALL
2021Ram2500Laramie LonghornALLGASALLALL
2021Ram2500LimitedALLGASALLALL
2021Ram2500Limited LonghornALLGASALLALL
2021Ram2500Lone StarALLGASALLALL
2021Ram2500SLT HDALLGASALLALL
2021Ram2500TradesmanALLGASALLALL
2022Ram2500Big HornALLGASALLALL
2022Ram2500HD LimitedALLGASALLALL
2022Ram2500LaramieALLGASALLALL
2022Ram2500LimitedALLGASALLALL
2022Ram2500Limited LonghornALLGASALLALL
2022Ram2500Lone StarALLGASALLALL
2022Ram2500SLT HDALLGASALLALL
2022Ram2500TradesmanALLGASALLALL
2023Ram2500Laramie4WDGASALLALL
2023Ram2500Laramie Longhorn4WDGASALLALL
2023Ram2500Limited4WDGASALLALL
2023Ram2500Limited Longhorn4WDGASALLALL
2023Ram2500Lone Star4WDGASALLALL
2023Ram2500Rebel4WDGASALLALL
2023Ram2500Tradesman4WDGASALLALL
2024Ram2500Big Horn4WDGASALLALL
2024Ram2500Laramie4WDGASALLALL
2024Ram2500Laramie Longhorn4WDGASALLALL
2024Ram2500Limited4WDGASALLALL
2024Ram2500Limited Longhorn4WDGASALLALL
2024Ram2500Lone Star4WDGASALLALL
2024Ram2500Rebel4WDGASALLALL
2024Ram2500Tradesman4WDGASALLALL

Component List

1 BDS012528 2019-2024 Ram 2500 5" Rear Air Ride Box Kit
1 BDS012614 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6" Radius Arm Front Box Kit
2 BDS032403 2019-2024 Ram 2500/3500 Coil 4" Diesel - 5.5" Gas
1 BDS122626 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas
2 BDS85752 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
2 BDS85757 Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1
1 BDS122321 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
