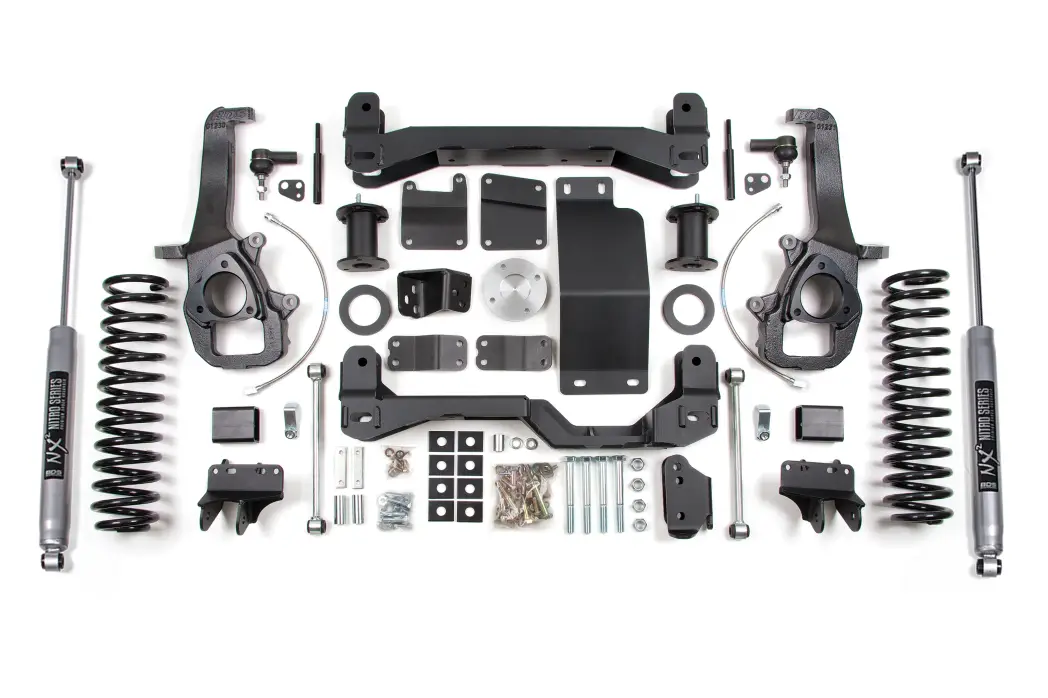

BDS1753H | BDS Suspension 6 Inch Lift Kit For Ram 1500 4WD (2012-2012) | Rear Lift 5 Inch Coil Spacers, Rear Shocks NX2 Nitro Series

6 Inch Lift Kit For Ram 1500 4WD (2012-2012) | Rear Lift 5 Inch Coil Spacers, Rear Shocks NX2 Nitro Series

BDS1753H
Pricing: $3,453.66
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS steps up the performance and capability of the 2012 RAM 1500 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 13.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 18 x 9 and 5 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.

  • 3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory.
  • 5 Inch Coil Springs - USe if your vehicle is level to 1" of tail high from the factory.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. These trucks vary from 1"-3" tail high from the factory. Be sure to measure your vehicle before ordering. The 022209, 022309, and 022509 can all be substituted to achieve the desired stance.
  2. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  3. Not recommended for AWD models.
  4. Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
  5. TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for 5" of lift or replace the TRX struts with standard struts for use with this system.
  6. Will not fit adjustable air suspension equipped models.
  7. THIS KIT DOES NOT FIT 2013 MODELS.
  8. This kit is FMVSS No.126 Compliant

Installation

Est. Install Time :

10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Grinder/Sanding Disc, Reciprocating Saw

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2012Ram1500Big Horn4WDALLALLALL
2012Ram1500Express4WDALLALLALL
2012Ram1500Laramie4WDALLALLALL
2012Ram1500Laramie Longhorn4WDALLALLALL
2012Ram1500Outdoorsman4WDALLALLALL
2012Ram1500SLT4WDALLALLALL
2012Ram1500ST4WDALLALLALL
2012Ram1500Sport4WDALLALLALL
2012Ram1500Tradesman4WDALLALLALL

Component List

1 BDS022509 09-10 Dodge 1500 5in Rear Box Kit
1 BDS022620 06-10 Dodge 1500 6in Front Box Kt (1of4)
1 BDS022621 06-10 Dodge 1500 6in Front Box Kt (2of4)
1 BDS022624 2012 Dodge 1500 6in Frnt Box Kit 3 of 4
1 BDS022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
2 BDS85759 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
37 x 13.5 with 17 x 9 and 4.5 in. Backspace
37 x 13.5 with 18 x 9 and 5 in. Backspace
37 x 13.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
