BDS1772FS | BDS Suspension 4 Inch Lift Kit Long Arm For Ram 2500 Power Wagon 4WD Gas (2009-2013) | Rear Lift Leaf Springs, Rear Axle 4 Inch, Fox 2.0 Performance Series Shocks
4 Inch Lift Kit Long Arm For Ram 2500 Power Wagon 4WD Gas (2009-2013) | Rear Lift Leaf Springs, Rear Axle 4 Inch, Fox 2.0 Performance Series Shocks
Description
Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

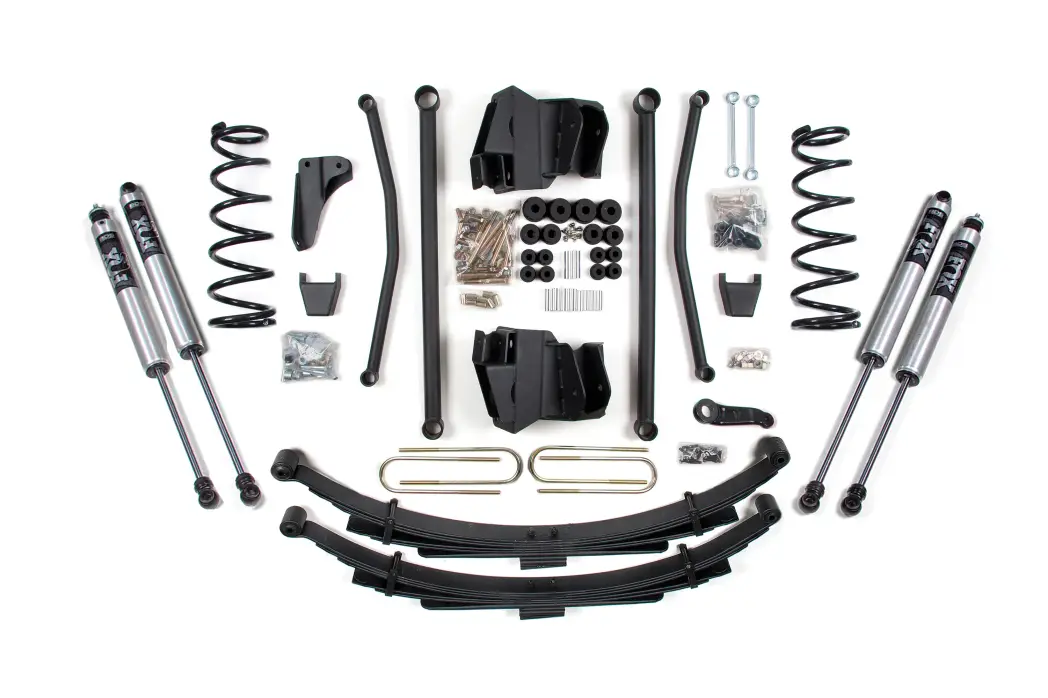

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Tubular short arms improve strength, handling and caster control
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 36 x 12.5 with 17 x 9 and 5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Axle Diameter
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
- 102009 rear brake line will not fit 2012 or newer models.
- Depending on the factory transmission mount, some 4" kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.
Installation
Est. Install Time :
6-8 hrsDifficulty Level :
Specialty Tools Needed :
Cut Off Wheel or Equiv., Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Leaf Spring
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 4"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2009 | Dodge | Ram 2500 Power Wagon | ALL | ALL | ALL | ALL | ALL |
2010 | Dodge | Ram 2500 Power Wagon | ALL | ALL | ALL | ALL | ALL |
2011 | Ram | 2500 | Power Wagon | ALL | ALL | ALL | ALL |
2012 | Ram | 2500 | Power Wagon | ALL | ALL | ALL | ALL |
2013 | Ram | 2500 | Power Wagon | ALL | ALL | ALL | ALL |
Component List
Tires & Wheels
36 x 12.5 with 17 x 9 and 5 in. Backspace
Details
- BDS1772FS
- BDS1772FS
- 840416408904
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
