BDS1780FPE | BDS Suspension 5.5 Inch Lift Kit With 4 Link For Ram 3500 4WD Gas (2013-2018) | Rear Lift 4 Inch Block Kit, Fox 2.5 Performance Elite Shocks
5.5 Inch Lift Kit With 4 Link For Ram 3500 4WD Gas (2013-2018) | Rear Lift 4 Inch Block Kit, Fox 2.5 Performance Elite Shocks
Description
Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

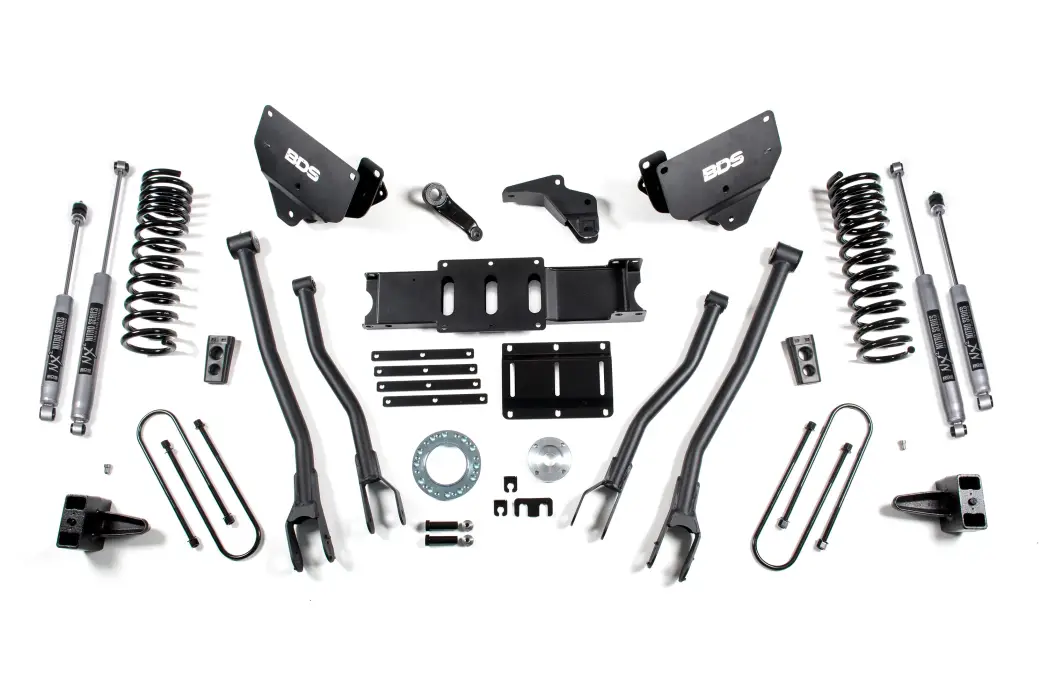

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Heavy duty 4-link improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 13.5 with 17 x 9 and 5.625 in. Backspace
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- 5 Inch Block: Level to tail high appearance
- 4 Inch Block: Tail low to level stance
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Level stance front to rear.
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Important Notes
- 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
- The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
- Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
- DRW models fit inner wheel clearance to the upper u-bolt plate on 5.5-6" kits
Installation
Est. Install Time :
7-9 hrsDifficulty Level :
Specialty Tools Needed :
Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 5.5"
- Rear Lift Height : 4"
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2013 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
| 2014 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
| 2015 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
| 2016 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
| 2017 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
| 2018 | Ram | 3500 | ALL | 4WD | GAS | ALL | ALL |
Component List
1 BDS012405 03-up Dodge 3/4ton 4in Rear
1 BDS012604 2013-2018 Ram 3500 6" 4-Link Box Kit (1of2)
1 BDS032401 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4" Diesel - 5.5" Gas
1 BDS122616 Ram T-Case Index - Gas - 6 Bolt
1 FOX88326064 Kit: 2014-2024 Ram 2500, Front, 2.5 Truck PES, R/R, 6" Lift, DSC
Tires & Wheels
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 13.5 with 17 x 9 and 5.625 in. Backspace
Details
- BDS1780FPE
- BDS1780FPE
- 840416409093
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
