BDS2101H | BDS Suspension 5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD Gas (2014-2018) | NX2 Nitro Series Shocks
5.5 Inch Lift Kit With Radius Arm For Ram 2500 4WD Gas (2014-2018) | NX2 Nitro Series Shocks
Description
Take your 2014-2018 RAM 2500 gas powered truck to the next level with a 5.5-inch lift kit with radius arm by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

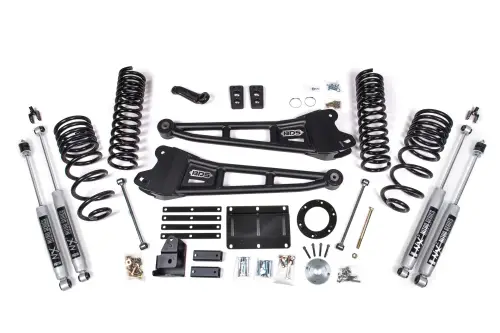

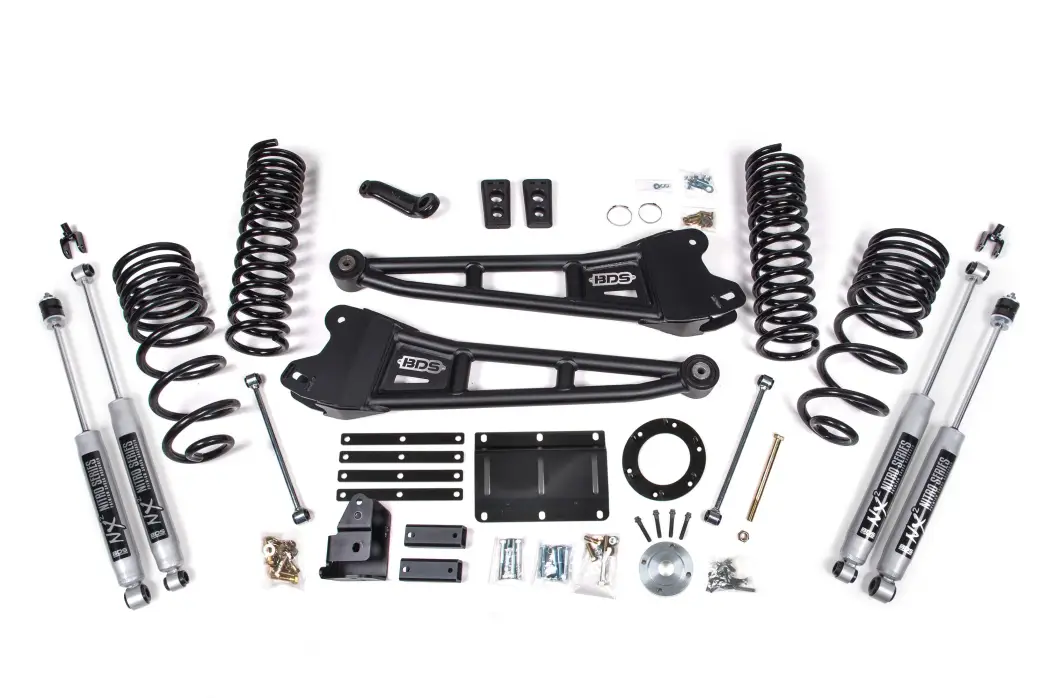

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Heavy duty tubular radius arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 8 and 5.625 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Important Notes
- 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
Installation
Est. Install Time :
3 hrsDifficulty Level :
Specialty Tools Needed :
Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Coil Spring
- Shocks Included : Yes
- Front Lift Height : 5.5"
- Rear Lift Height : 4"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2014 | Ram | 2500 | Big Horn | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Laramie | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Laramie Limited | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Laramie Longhorn | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Lone Star | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Outdoorsman | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Power Wagon | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | R/T | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | SLT | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | ST | 4WD | GAS | ALL | ALL |
2014 | Ram | 2500 | Tradesman | 4WD | GAS | ALL | ALL |
2015 | Ram | 2500 | ALL | 4WD | GAS | ALL | ALL |
2016 | Ram | 2500 | ALL | 4WD | GAS | ALL | ALL |
2017 | Ram | 2500 | ALL | 4WD | GAS | ALL | ALL |
2018 | Ram | 2500 | ALL | 4WD | GAS | ALL | ALL |
Component List
1 BDS122321 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit
1 BDS012615 2013-2018 Ram 2500/3500 4wd 6" Radius Arm Front Box Kit
1 BDS032401 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4" Diesel - 5.5" Gas
1 BDS122616 Ram T-Case Index - Gas - 6 Bolt
2 BDS85752 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
2 BDS85756 Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1
Tires & Wheels
37 x 12.5 with 17 x 8 and 5.625 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
Details
- BDS2101H
- BDS2101H
- 840416413168
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
