BDS226FS | BDS Suspension 6 Inch Lift Kit For Dodge Ram 1500 Mega Cab 4WD (2006-2007) | Rear Lift 4 Inch Block Kit, Rear Axle 3.5 Inch, Fox 2.0 Performance Series Shocks

BDS Suspension 6 Inch Lift Kit For Dodge Ram 1500 Mega Cab 4WD (2006-2007) | Rear Lift 4 Inch Block Kit, Rear Axle 3.5 Inch, Fox 2.0 Performance Series Shocks

BDS226FS
Pricing: $3,206.78
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the ride and style of your 2006-2007 Dodge RAM 1500 Mega Cab 4WD truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires. BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Tubular long arms reduce caster change and create more controlled feeling on and off road
  • Heavy duty control arm brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 36 x 12.5 with 17 x 9 and 5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

Block Kit

  • Includes a rear block and u-bolt kit to achieve a 4" rear lift.
  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

Leaf Springs

  • BDS leaf springs provide a 5" rear lift and come with u-bolts.
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Axle Diameter

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4066.
  2. Rear lift options will not fit dually applications.
  3. Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit.
  4. Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 4"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2003DodgeRam 2500ALL4WDGASALLALL
2003DodgeRam 3500ALL4WDGASALLALL
2004DodgeRam 2500ALL4WDGASALLALL
2004DodgeRam 3500ALL4WDGASALLALL
2005DodgeRam 2500Laramie4WDGASALLALL
2005DodgeRam 2500SLT4WDGASALLALL
2005DodgeRam 2500ST4WDGASALLALL
2005DodgeRam 3500ALL4WDGASALLALL
2006DodgeRam 1500Laramie4WDGASALLALL
2006DodgeRam 1500SLT4WDGASALLALL
2006DodgeRam 2500Laramie4WDGASALLALL
2006DodgeRam 2500SLT4WDGASALLALL
2006DodgeRam 2500SLT Sport4WDGASALLALL
2006DodgeRam 2500ST4WDGASALLALL
2006DodgeRam 2500Sport4WDGASALLALL
2006DodgeRam 2500TRX44WDGASALLALL
2006DodgeRam 2500 Power WagonALL4WDGASALLALL
2006DodgeRam 3500ALL4WDGASALLALL
2007DodgeRam 1500Laramie4WDGASALLALL
2007DodgeRam 1500SLT4WDGASALLALL
2007DodgeRam 2500ALL4WDGASALLALL
2007DodgeRam 3500Laramie4WDGASALLALL
2007DodgeRam 3500SLT4WDGASALLALL
2007DodgeRam 3500ST4WDGASALLALL
2007DodgeRam 3500Sport4WDGASALLALL

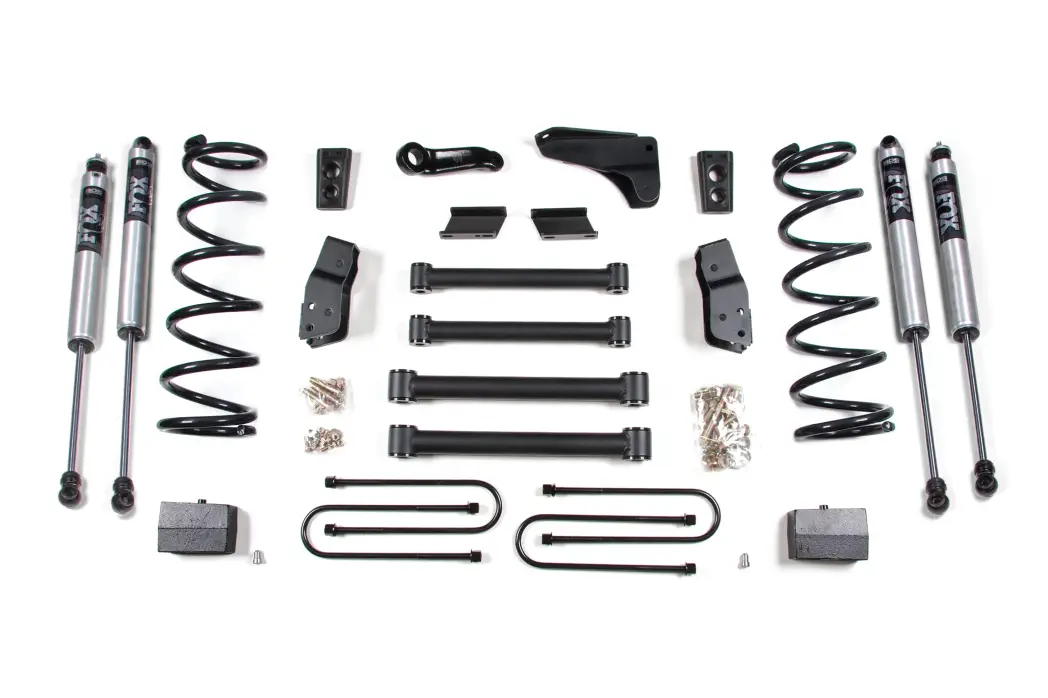

Component List

1 BDS012408 03-up Dodge 3/4ton 4in Rear w/3-1/2 axle
1 BDS012611 03-07 Dodge 3/4-1 ton Box Kit
1 BDS032601 03-12 Dodge Ram 2500(gas) 6in Coil Kit
2 FOX98224750 Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2 FOX98224761 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
36 x 12.5 with 17 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
