BDS665H | BDS Suspension 4 Inch Lift Kit Long Arm For Dodge Ram 2500 Power Wagon 4WD (2009-2013) | Gas | Rear Lift Block Kit, Rear Axle 4 Inch, NX2 Nitro Series Shocks

BDS Suspension 4 Inch Lift Kit Long Arm For Dodge Ram 2500 Power Wagon 4WD (2009-2013) | Gas | Rear Lift Block Kit, Rear Axle 4 Inch, NX2 Nitro Series Shocks

BDS665H
Pricing: $3,006.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

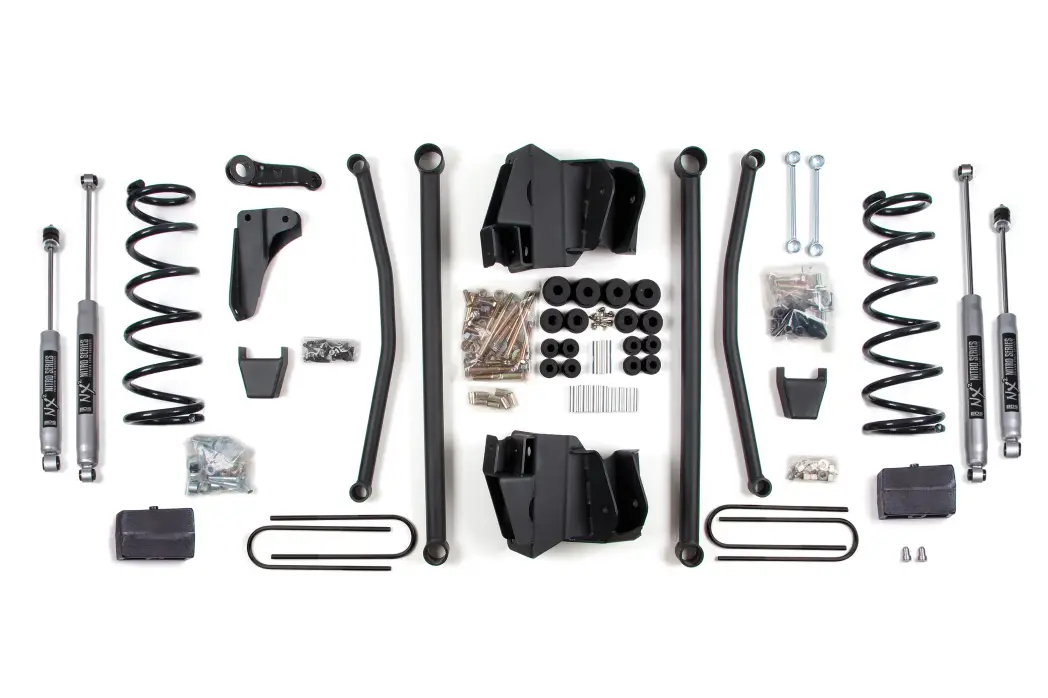

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Tubular long arms reduce caster change and create more controlled feeling on and off road
  • Heavy duty control arm brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 36 x 12.5 with 17 x 9 and 5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

Block Kit

  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Axle Diameter

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
  2. 102009 rear brake line will not fit 2012 or newer models.
  3. Depending on the factory transmission mount, some 4" kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut Off Wheel or Equiv., Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 4"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2009DodgeRam 2500ALL4WDGASALLALL
2009DodgeRam 3500ALL4WDGASALLALL
2010DodgeRam 2500ALL4WDGASALLALL
2011Ram2500ALL4WDGASALLALL
2011Ram3500Laramie4WDGASALLALL
2011Ram3500SLT4WDGASALLALL
2011Ram3500ST4WDGASALLALL
2011Ram3500SXT4WDGASALLALL
2012Ram2500Laramie4WDGASALLALL
2012Ram2500Laramie Longhorn4WDGASALLALL
2012Ram2500Outdoorsman4WDGASALLALL
2012Ram2500Power Wagon4WDGASALLALL
2012Ram2500R/T4WDGASALLALL
2012Ram2500SLT4WDGASALLALL
2012Ram2500ST4WDGASALLALL
2012Ram3500Laramie4WDGASALLALL
2012Ram3500SLT4WDGASALLALL
2012Ram3500ST4WDGASALLALL
2013Ram2500Big Horn4WDGASALLALL
2013Ram2500Laramie4WDGASALLALL
2013Ram2500Laramie Longhorn4WDGASALLALL
2013Ram2500Lone Star4WDGASALLALL
2013Ram2500Outdoorsman4WDGASALLALL
2013Ram2500Power Wagon4WDGASALLALL
2013Ram2500R/T4WDGASALLALL
2013Ram2500SLT4WDGASALLALL
2013Ram2500ST4WDGASALLALL
2013Ram2500SXT4WDGASALLALL
2013Ram2500Tradesman4WDGASALLALL

Component List

Information Unavailable

Tires & Wheels

(Trimming may be required)
36 x 12.5 with 17 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
