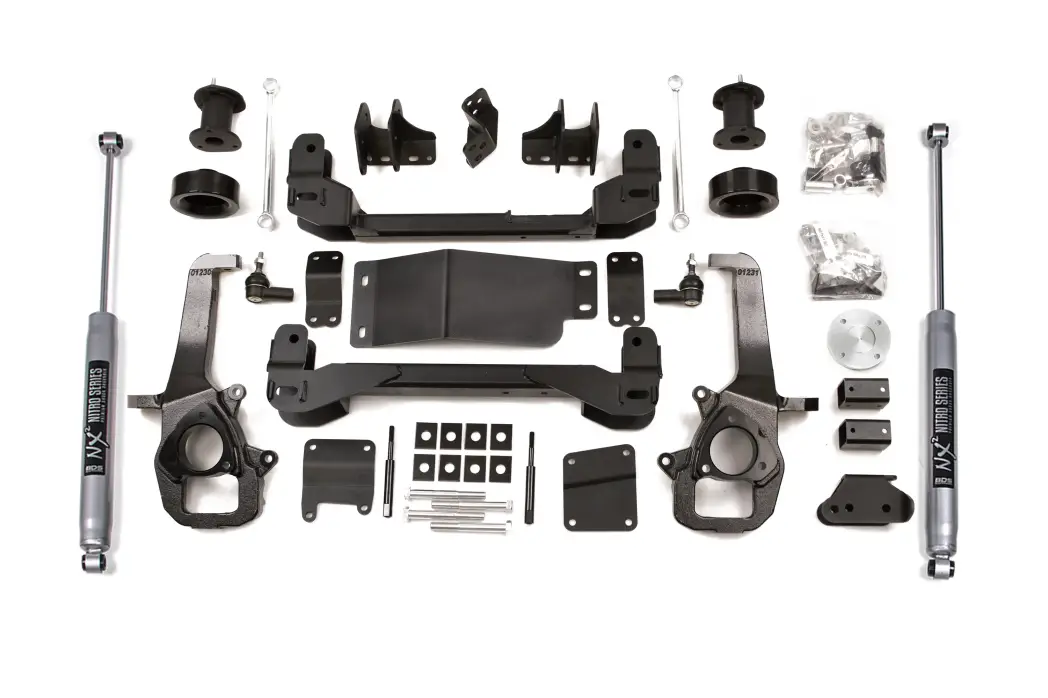

BDS670H | BDS Suspension 4 Inch Lift Kit For Dodge Ram 1500 4WD (2013-2018) | Rear Lift 2 Inch Coil Springs, NX2 Nitro Series Shocks

4 Inch Lift Kit For Dodge Ram 1500 4WD (2013-2018) | Rear Lift 2 Inch Coil Springs, NX2 Nitro Series Shocks

BDS670H
Pricing: $3,075.54
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes a 2" coil spacer, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers. Measure your vehicle and order the appropriate rear lift height to get your desired stance.

Coil Spacers

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powdercoat finish for long-lasting durability

Coil Springs

  • Full replacement rear coil springs
  • Coils are progressive rate and provide a great ride loaded or not
  • Built to handle heavy loads without sagging
  • A polyester-based powder coat is applied to ensure flexibility and durability
  • Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  2. Not recommended for AWD models.
  3. Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
  4. Will not fit adjustable air suspension equipped models.
  5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
  6. This kit is FMVSS No.126 Compliant.

Installation

Est. Install Time :

10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut Off Wheel or Equiv., Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 2"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2013Ram1500Big Horn4WDALLALLALL
2013Ram1500Express4WDALLALLALL
2013Ram1500Laramie4WDALLALLALL
2013Ram1500Laramie Longhorn4WDALLALLALL
2013Ram1500Outdoorsman4WDALLALLALL
2013Ram1500SLT4WDALLALLALL
2013Ram1500ST4WDALLALLALL
2013Ram1500SXT4WDALLALLALL
2013Ram1500Sport4WDALLALLALL
2013Ram1500Tradesman4WDALLALLALL
2014Ram1500Big Horn4WDALLALLALL
2014Ram1500Express4WDALLALLALL
2014Ram1500Laramie4WDALLALLALL
2014Ram1500Laramie Limited4WDALLALLALL
2014Ram1500Laramie Longhorn4WDALLALLALL
2014Ram1500Lone Star4WDALLALLALL
2014Ram1500Outdoorsman4WDALLALLALL
2014Ram1500SLT4WDALLALLALL
2014Ram1500ST4WDALLALLALL
2014Ram1500SXT4WDALLALLALL
2014Ram1500Special Service4WDALLALLALL
2014Ram1500Sport4WDALLALLALL
2014Ram1500Tradesman4WDALLALLALL
2015Ram1500Big Horn4WDALLALLALL
2015Ram1500Express4WDALLALLALL
2015Ram1500Laramie4WDALLALLALL
2015Ram1500Laramie Limited4WDALLALLALL
2015Ram1500Laramie Longhorn4WDALLALLALL
2015Ram1500Limited4WDALLALLALL
2015Ram1500Lone Star4WDALLALLALL
2015Ram1500Outdoorsman4WDALLALLALL
2015Ram1500SLT4WDALLALLALL
2015Ram1500ST4WDALLALLALL
2015Ram1500SXT4WDALLALLALL
2015Ram1500Special Service4WDALLALLALL
2015Ram1500Sport4WDALLALLALL
2015Ram1500Tradesman4WDALLALLALL
2015Ram1500 RebelALL4WDALLALLALL
2016Ram1500Big Horn4WDALLALLALL
2016Ram1500Express4WDALLALLALL
2016Ram1500Laramie4WDALLALLALL
2016Ram1500Laramie Limited4WDALLALLALL
2016Ram1500Laramie Longhorn4WDALLALLALL
2016Ram1500Limited4WDALLALLALL
2016Ram1500Lone Star4WDALLALLALL
2016Ram1500Outdoorsman4WDALLALLALL
2016Ram1500SLT4WDALLALLALL
2016Ram1500ST4WDALLALLALL
2016Ram1500SXT4WDALLALLALL
2016Ram1500Special Service4WDALLALLALL
2016Ram1500Sport4WDALLALLALL
2016Ram1500Tradesman4WDALLALLALL
2016Ram1500 RebelALL4WDALLALLALL
2017Ram1500Big Horn4WDALLALLALL
2017Ram1500Express4WDALLALLALL
2017Ram1500Laramie4WDALLALLALL
2017Ram1500Laramie Limited4WDALLALLALL
2017Ram1500Laramie Longhorn4WDALLALLALL
2017Ram1500Limited4WDALLALLALL
2017Ram1500Lone Star4WDALLALLALL
2017Ram1500Outdoorsman4WDALLALLALL
2017Ram1500SLT4WDALLALLALL
2017Ram1500ST4WDALLALLALL
2017Ram1500SXT4WDALLALLALL
2017Ram1500Special Service4WDALLALLALL
2017Ram1500Sport4WDALLALLALL
2017Ram1500Tradesman4WDALLALLALL
2017Ram1500 RebelALL4WDALLALLALL
2018Ram1500Big Horn4WDALLALLALL
2018Ram1500Express4WDALLALLALL
2018Ram1500Laramie4WDALLALLALL
2018Ram1500Laramie Limited4WDALLALLALL
2018Ram1500Laramie Longhorn4WDALLALLALL
2018Ram1500Limited4WDALLALLALL
2018Ram1500Lone Star4WDALLALLALL
2018Ram1500Outdoorsman4WDALLALLALL
2018Ram1500SLT4WDALLALLALL
2018Ram1500ST4WDALLALLALL
2018Ram1500SXT4WDALLALLALL
2018Ram1500Special Service4WDALLALLALL
2018Ram1500Sport4WDALLALLALL
2018Ram1500Tradesman4WDALLALLALL
2018Ram1500 RebelALL4WDALLALLALL
2019Ram1500 ClassicALL4WDALLALLALL
2020Ram1500 ClassicALL4WDALLALLALL
2021Ram1500 ClassicALL4WDALLALLALL
2022Ram1500 ClassicALL4WDALLALLALL
2023Ram1500 ClassicALL4WDALLALLALL

Component List

1 BDS022209 09-12 Dodge 1500 2in Rear Spacer Kit
1 BDS022402 2012 Dodge 1500 4in Frnt Box Kit 3of4
1 BDS022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
1 BDS022630 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4)
1 BDS022631 2013 DODGE 4WD FRONTBOXKIT (2 OF 4)
2 BDS85758 Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
