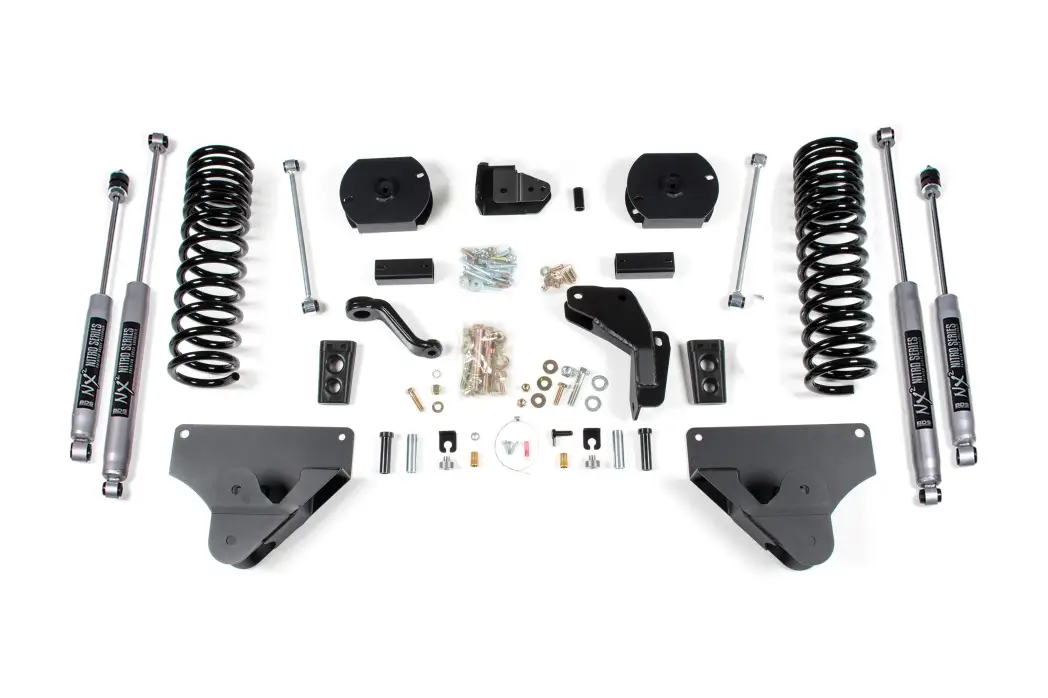

BDS698H | BDS Suspension 4 Inch Lift Kit For Ram 2500 4WD (2014-2018) | Diesel | Rear Lift Coil Springs, NX2 Nitro Series Shocks

4 Inch Lift Kit For Ram 2500 4WD (2014-2018) | Diesel | Rear Lift Coil Springs, NX2 Nitro Series Shocks

BDS698H
Pricing: $2,001.90
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the ride and style of your 2014-2018 RAM 2500 diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

Coil Spacers

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powdercoat finish for long-lasting durability

Coil Springs

  • Full replacement rear coil springs
  • Coils are progressive rate and provide a great ride loaded or not
  • Built to handle heavy loads without sagging
  • A polyester-based powder coat is applied to ensure flexibility and durability
  • Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Coil Springs
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 2.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014Ram2500Big Horn4WDDIESELALLALL
2014Ram2500Laramie4WDDIESELALLALL
2014Ram2500Laramie Limited4WDDIESELALLALL
2014Ram2500Laramie Longhorn4WDDIESELALLALL
2014Ram2500Lone Star4WDDIESELALLALL
2014Ram2500Outdoorsman4WDDIESELALLALL
2014Ram2500SLT4WDDIESELALLALL
2014Ram2500ST4WDDIESELALLALL
2014Ram2500Tradesman4WDDIESELALLALL
2015Ram2500Big Horn4WDDIESELALLALL
2015Ram2500Laramie4WDDIESELALLALL
2015Ram2500Laramie Limited4WDDIESELALLALL
2015Ram2500Laramie Longhorn4WDDIESELALLALL
2015Ram2500Lone Star4WDDIESELALLALL
2015Ram2500Outdoorsman4WDDIESELALLALL
2015Ram2500SLT4WDDIESELALLALL
2015Ram2500ST4WDDIESELALLALL
2015Ram2500Tradesman4WDDIESELALLALL
2016Ram2500Big Horn4WDDIESELALLALL
2016Ram2500Laramie4WDDIESELALLALL
2016Ram2500Laramie Limited4WDDIESELALLALL
2016Ram2500Laramie Longhorn4WDDIESELALLALL
2016Ram2500Limited4WDDIESELALLALL
2016Ram2500Outdoorsman4WDDIESELALLALL
2016Ram2500SLT4WDDIESELALLALL
2016Ram2500ST4WDDIESELALLALL
2016Ram2500Tradesman4WDDIESELALLALL
2017Ram2500Big Horn4WDDIESELALLALL
2017Ram2500Laramie4WDDIESELALLALL
2017Ram2500Laramie Limited4WDDIESELALLALL
2017Ram2500Laramie Longhorn4WDDIESELALLALL
2017Ram2500Limited4WDDIESELALLALL
2017Ram2500Outdoorsman4WDDIESELALLALL
2017Ram2500SLT4WDDIESELALLALL
2017Ram2500ST4WDDIESELALLALL
2017Ram2500Tradesman4WDDIESELALLALL
2018Ram2500Big Horn4WDDIESELALLALL
2018Ram2500Laramie4WDDIESELALLALL
2018Ram2500Laramie Limited4WDDIESELALLALL
2018Ram2500Laramie Longhorn4WDDIESELALLALL
2018Ram2500Limited4WDDIESELALLALL
2018Ram2500Outdoorsman4WDDIESELALLALL
2018Ram2500SLT4WDDIESELALLALL
2018Ram2500ST4WDDIESELALLALL
2018Ram2500Tradesman4WDDIESELALLALL

Component List

1 BDS012259 2014-18 Ram 2500 2.5" Rear Coil Spring Spacer Box Kit
1 BDS012401 2013-18 Ram 2500/300 4" Front Box Kit
1 BDS032401 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4" Diesel - 5.5" Gas
2 BDS85752 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
2 BDS85757 Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 9 and 5.625 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
