FTS24299 | Fabtech Front Differential Cover Skid Plate - M210 Axle (2018-2023 Wrangler JL 4WD | 2020-2023 Gladiator JT 4WD)

2018-2023 Jeep Wrangler JL 4WD | 2018-2023 Jeep Wrangler JL Unlimited 4WD | 2020-2023 Jeep Gladiator JT 4WD

FTS24299
Pricing: $291.44
Qty:
Free Ground Shipping | Exclusions Apply*

Description

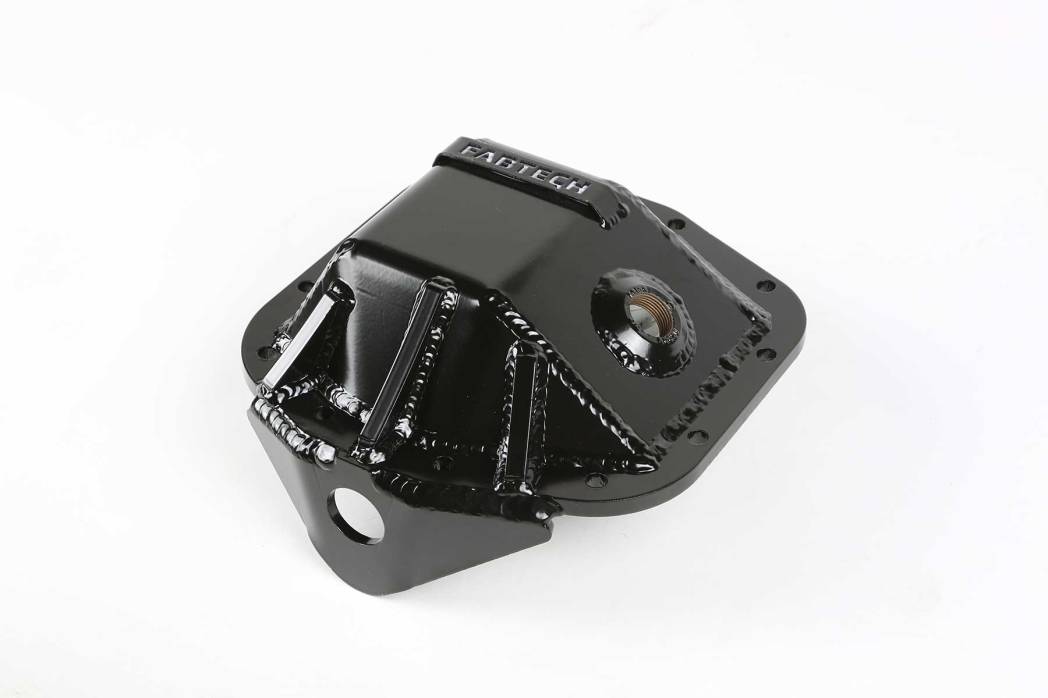

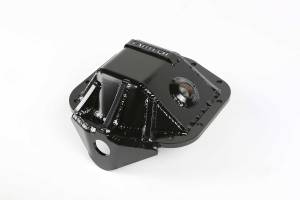

FRONT DIFFERENTIAL COVER SKID PLATE [M210 AXLE] – FTS24299

  • 2018-23 JEEP JL RUBICON ONLY 4WD
  • 2020-23 JEEP GLADIATOR 4WD

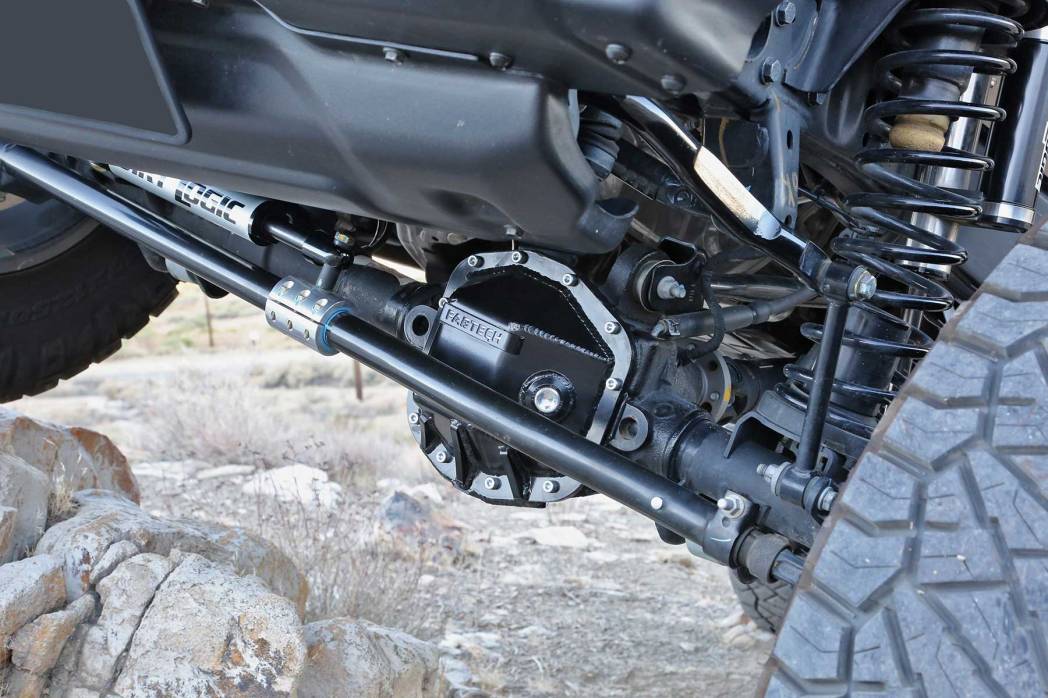

This heavy duty product functions as protective differential gear inspection cover and skid plate as one unit. It offers protection to the differential gears with 1/4" thick steel construction to ward off frontal impacts of rocks while a contoured skid plate provides protection to the bottom of the diff housing.

Jeep front axles have the differential gear drain plug at the bottom most part of the housing. This position lends itself to becoming impacted by rocks and obstacles when offroad. When the drain plug is impacted, it can become deformed and/or pulled out of the housing. This causes leakage of the differential fluid and can lead to gear failure within 50 miles. A known problem. Often the axle housing must be repaired by welding and rethreading or replacing all it together once the damage occurs.

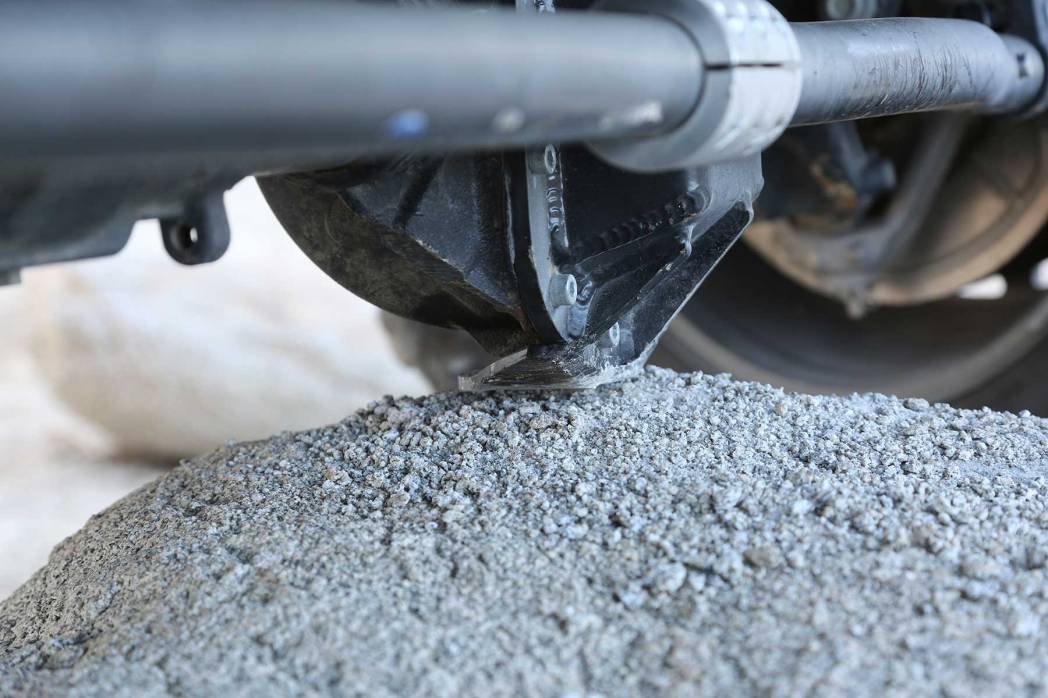

Fabtech’s design solves this problem with the form fitting skid plate that protects the drain plug while featuring an access hole to the drain plug when service is required.

The contouring design of this unit is vastly superior to an add on skid plate that takes away ground clearance that is vital when offroading.

FEATURES

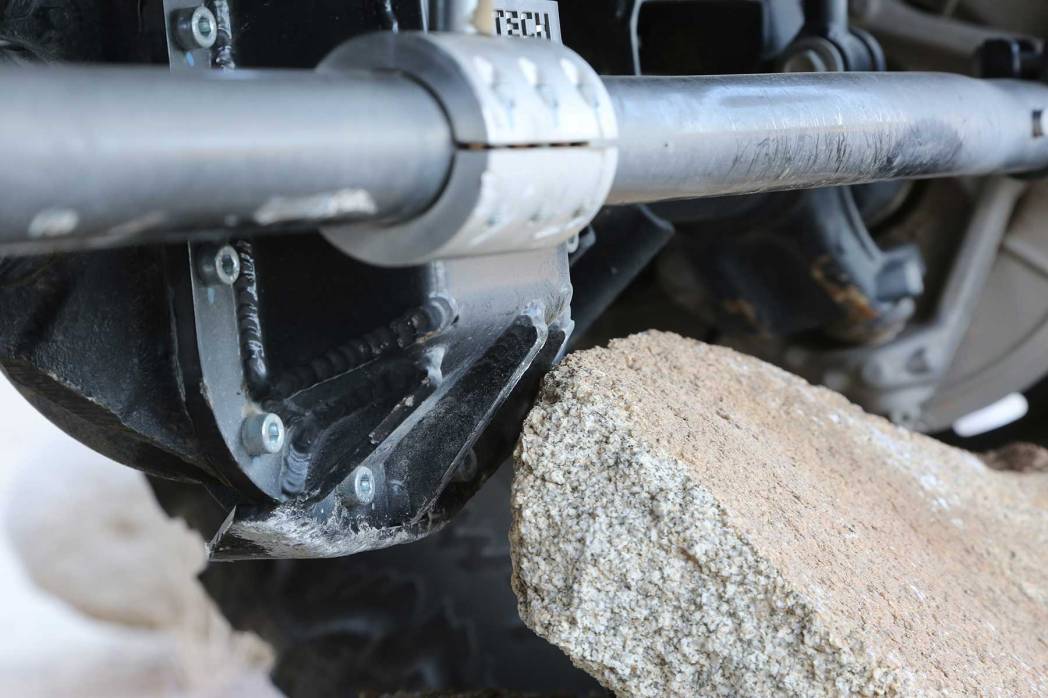

  • Protects front diff housing drain plug against damage
  • Class leading skid plate ground clearance
  • Double the frontal crush strength over stock
  • Center section constructed of 1/4" thick steel
  • Increased fluid capacity for optimum gear lubrication
  • 3/8" Thick steel ring eliminates lip bending
  • Triple 3/8" thick steel gussets protect mounting bolts
  • Most affordable heavy duty differential cover and skid plate on the market
  • Patent Pending

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS24299 COMPONENT BOX


Application List

2018-2023 Jeep Wrangler JL 4WD
2018-2023 Jeep Wrangler JL Unlimited 4WD
2020-2023 Jeep Gladiator JT 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.0 lbs.
  • W15.0000” x H6.0000” x L15.0000”
  • Free Ground Shipping | Exclusions Apply*
