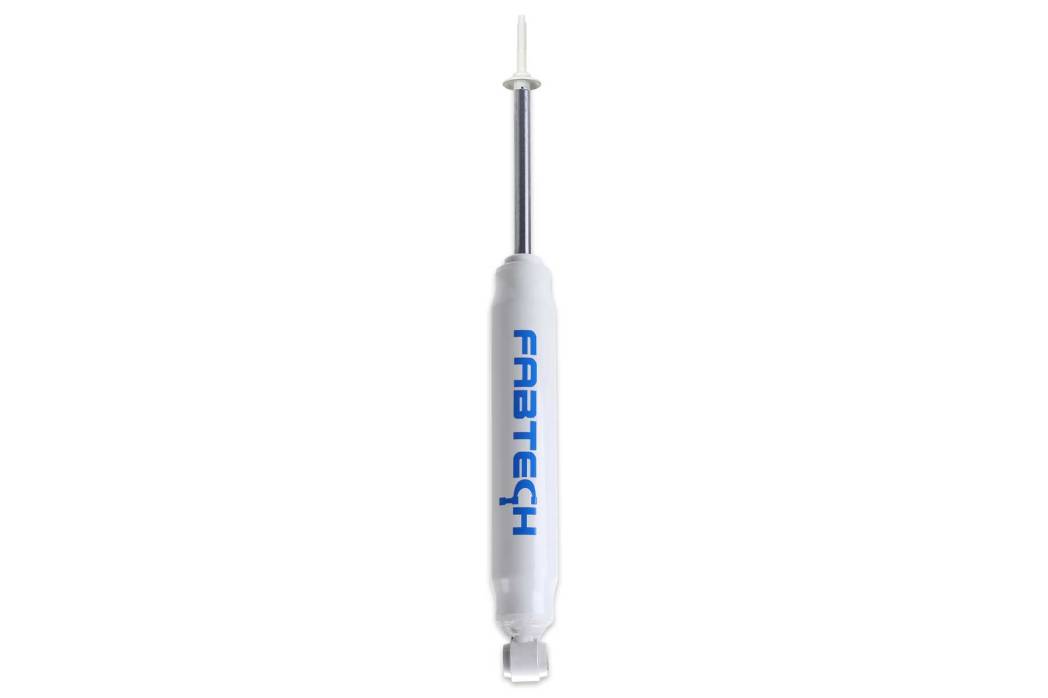

FTS7338 | Fabtech Performance Shock (K1046, K1051, K1121, K1123, K1200, K1202)

Performance Twin Tube Shock | Extended 20.56 Inches | Collapsed 12.75 Inches | Top Mount S38 | Bottom Mount EB1

FTS7338
Pricing: $81.51
Qty:

Description

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

FEATURES

  • Twin Tube Hydraulic Construction
  • 9/16″ Hardened Chrome Piston Rod
  • 1 3/8" OD Piston
  • Closed Cell Foam insert
  • High Flow 9 Stage Valving
  • Extended Length – E20.56
  • Collasped Length – C12.75
  • Stroke Length – S7.81
  • Top Mount – S38
  • Bottom Mount – EB1

Application List

2020-24 CHEVY 2500HD | GMC 2500HD 4WD 4″ LIFT KIT – PERFORMANCE SHOCKS – K1200
2020-24 CHEVY 3500HD | GMC 3500HD 4WD 4″ LIFT KIT – PERFORMANCE SHOCKS – K1202

2011-19 CHEVY 2500HD | GMC 2500HD 2WD/4WD 6″ RTS® SYSTEM W/ PERFORMANCE SHOCKS – K1046
2011-19 CHEVY 3500HD | GMC 3500HD 2WD/4WD 6″ RTS® SYSTEM W/ PERFORMANCE SHOCKS – K1051
2011-19 CHEVY 2500HD | GMC 2500HD 2WD/4WD 4″ PERFORMANCE SYSTEM W/ PERFORMANCE SHOCKS – K1121
2011-19 CHEVY 3500HD | GMC 3500HD 2WD/4WD 4″ PERFORMANCE SYSTEM W/ PERFORMANCE SHOCKS – K1123

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W3.0000” x H3.0000” x L24.0000”
