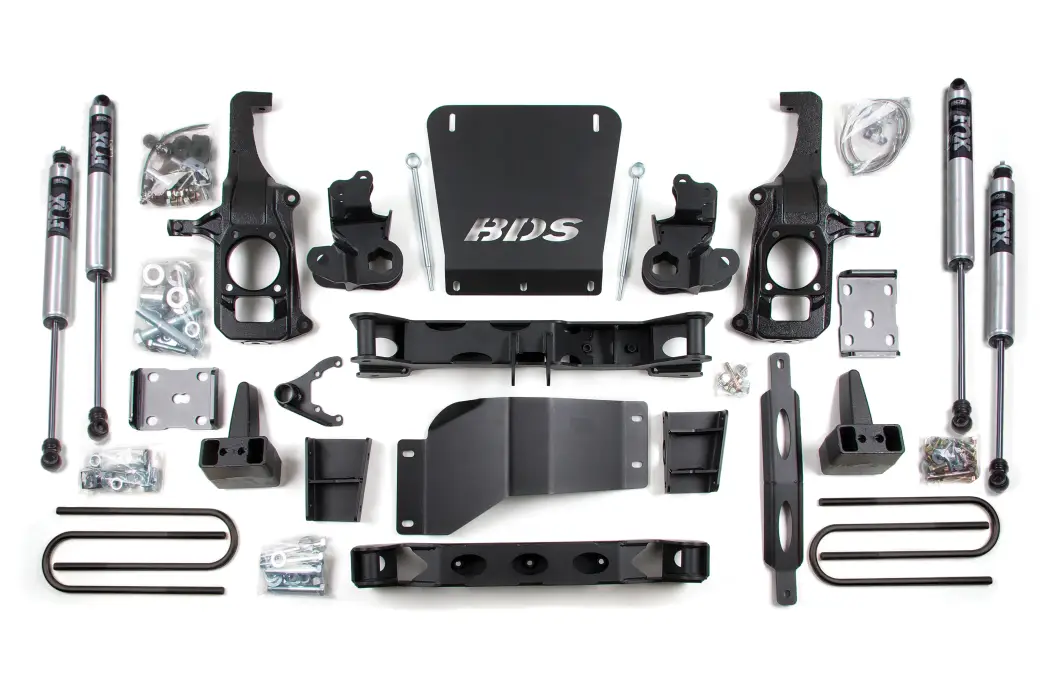

BDS196FS | BDS Suspension 6.5 Inch Lift Kit Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 2/4WD (2011-2019) | Rear Lift 5 Inch Block Lift Without Overload, Fox 2.0 Performance Series Shocks

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance

• 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
• 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
• 37 x 12.5 with 20 x 9 and 6 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

• 3" block - Will result in a slightly tail-low stance.
• 4" block - Most common for level front/rear stance.
• 5" block - Will result in a level to slightly tail high stance, integrates a u-bolt flip kit with new spring plate.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Torsion Bar Tool required to load/unload the torsion bars.
2. 3" rear block kit recommended for dually applications, 5" rear block kit will not fit dually applications.
3. Stock 17" & 18" wheels cannot be reinstalled.
4. Stock 20" x 8.5" wheels with 6.18" backspaing MAY fit with a max tire size of 37x12.50 on certain tire sidewall profiles due to clearance to the steering knuckle and sway bar. A minimum 1/4" wheel spacer may be required due to tire side wall profile variations. A wider tire will cause clearance issues with the steering knuckle.
5. Factory dually wheels cannot be reinstalled.
6. Models with two piece rear driveshaft may require #121612.
7. If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
