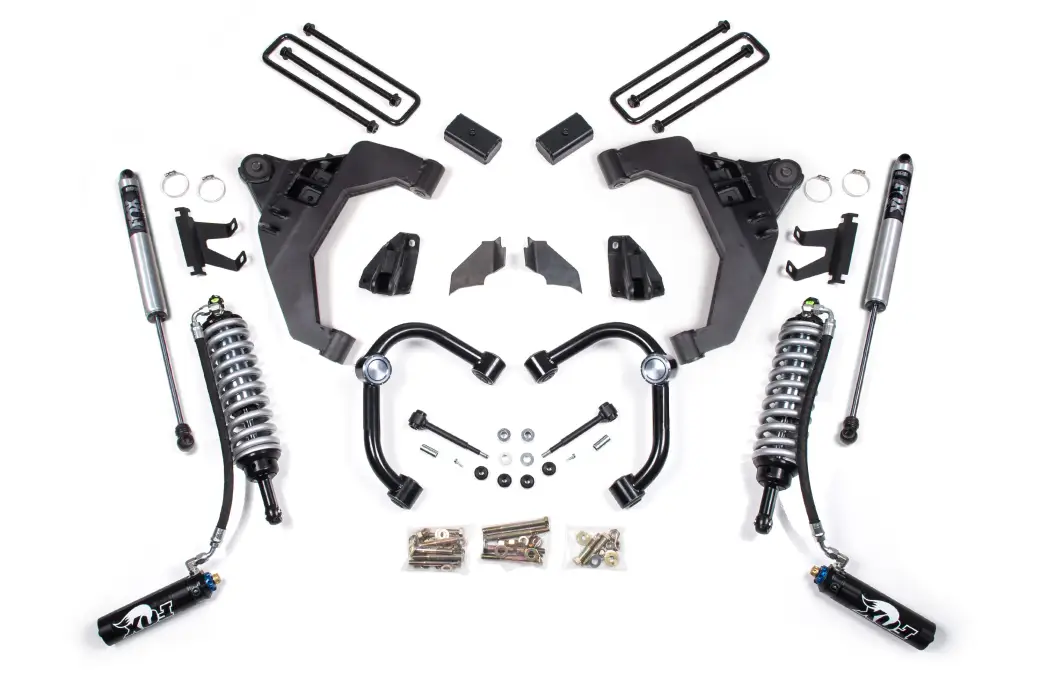

BDS723FDSC | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Coil Over Conversion Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD Diesel (2011-2019) | Rear Lift Block Kit With Factory Overload, Fox 2.0 Performance Series Shocks

• FOX 2.5 coil-overs offer improved damper performance over stock
• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• Factory Protection Plus drivetrain warranty included

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain

HD Control Arms

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Important Notes

1. Minor metal trimming may be required with 35x12.50R20 on 20x9 w/5-5.5" BS
2. Requires minor welding
3. Coilovers are preset for DIESEL engine models. The use of the coilovers on GAS engine models is not recommended due to providing too much lift. Available preload adjustment is typically not enough to achieve desired ride height.
4. Factory 17", 18" and 20" wheels cannot be reinstalled. See instructions for detailed wheel/tire fitment notes.
5. Dually Models will require aftermarket 20" wheels with a max tire size of 285/60/20.
6. Coilover are preset to a 2" minimum lift height
