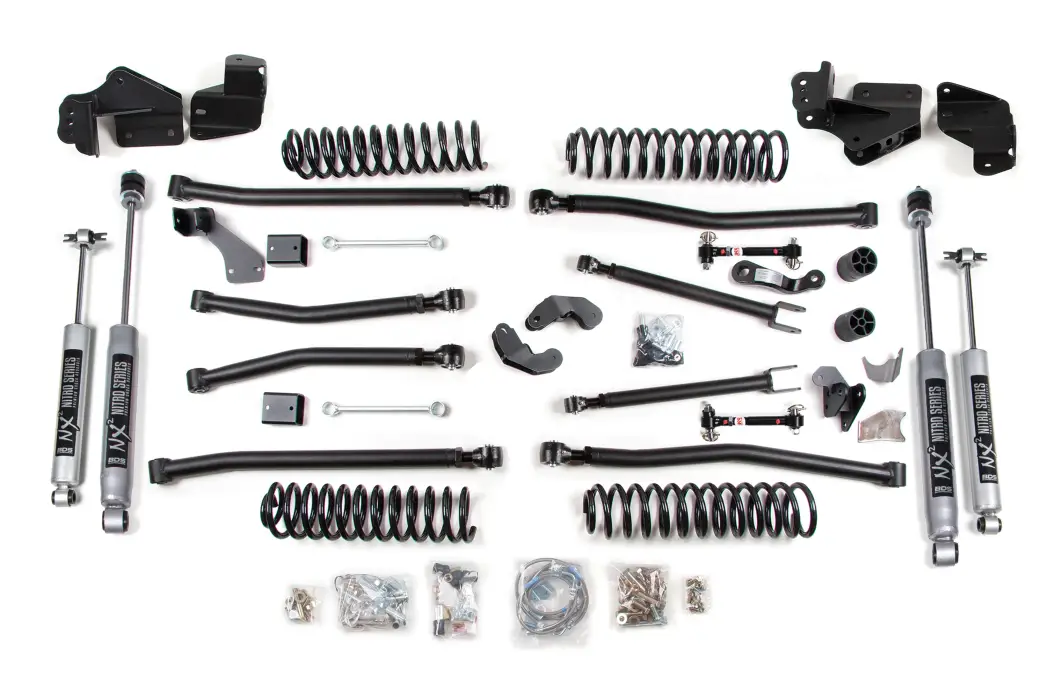

BDS1419H | BDS Suspension 4 Inch Long Arm Lift Kit For Jeep Wrangler JK 2 Door (2007-2018) | Sway Bar Link Disconnects, NX2 Nitro Series Shocks

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 37" tires

• 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Sway Bar Link Option

Disconnects

• Gain 30 percent more axle articulationl by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

Fixed Links

• Required for use on Rubicon models with electronic disconnect.
• Improves handling with proper sway bar operating angle
• Heavy-duty steel construction with zinc finish
• Polyurethane hourglass bushings for long life and quiet operation

Important Notes

1. Will not fit 2wd models.
2. The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
3. Exhaust modification may be required.
