BDS1402FS | BDS Suspension 2 Inch Lift Kit With Coil Spring For Jeep Wrangler JK 4 Door (2007-2011) | Fox 2.0 Performance Series Shocks
BDS Suspension 2 Inch Lift Kit With Coil Spring For Jeep Wrangler JK 4 Door (2007-2011) | Fox 2.0 Performance Series Shocks
Description
Improve the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires at an affordable price.

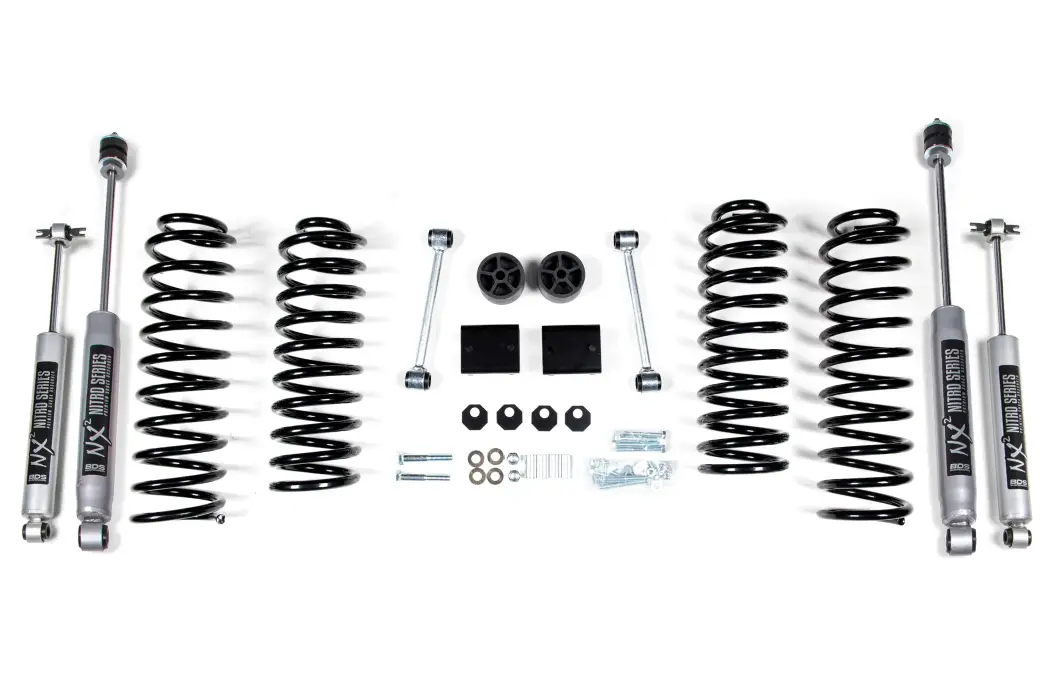

The lift kit includes front and rear BDS Pro-Ride Coil Springs, bump stop extensions, front lower control arm cam bolts and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Features & Benefits
- ProRide coil springs offer improved ride quality and more articulation
- Extended sway bar links for improved offroad flex
- Lower cam locks to correct caster for alignment
- Bump stop spacers to prevent harsh bottom outs
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 33" tires
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Installation
Est. Install Time :
4 hrsDifficulty Level :
ModeratelyEasySpecialty Tools Needed :
Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Coil Springs
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 2"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2007 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Mountain | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Sport | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited 70th Anniversary | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Rubicon | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Sahara | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Sport | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited X | ALL | ALL | ALL | ALL |
Component List
1 BDS034209 2007-2018 Jeep Wrangler (JK) 2dr/3in 4dr/2in Rear Coil Springs
1 BDS124320 2007-2018 Jeep Wrangler (JK) 2-4.5in Front Sway Bar Links Solid
2 FOX98224921 Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
2 FOX98224951 Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1
Details
- BDS1402FS
- BDS1402FS
- 840416400977
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
