BDS Suspension 6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 (2007-2013) | Rear Lift Leaf Springs, Fox 2.0 Performance Series Shocks
Description

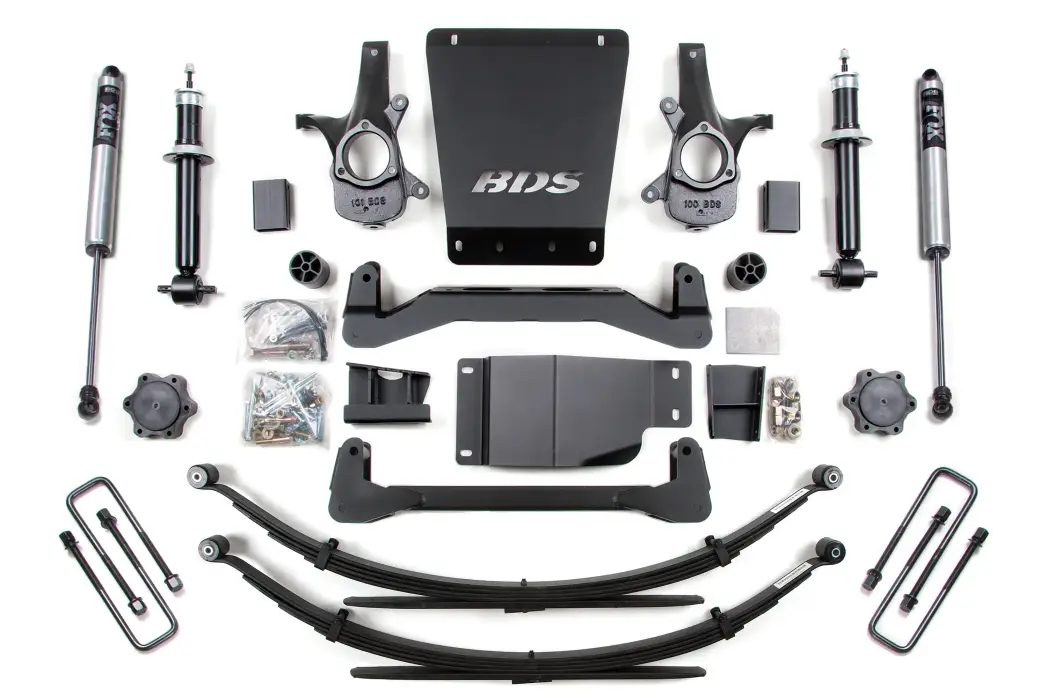

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Lift Option
5 Inch Block Kit with Add-A-Leaf
- Designed to give 4.5" of lift.
- Help freshen up old worn-out factory leaf springs.
- Includes new center pins.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Strut compressor required for installation
- This system will not fit 2007 classic models
- Installation of rear leaf springs requires removal of the fuel tank
- Requires frame bracket modification
- 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Traction bars will not fit regular cab short box models.
- Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
- Will not fit two-mode hybrid models with electronic power steering.
- Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.
Installation
Est. Install Time :
8 hrsDifficulty Level :
Specialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment
Specification
- Front Lift Method : Cross-Member
- Rear Lift Method : Leaf Spring
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 5.5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2007 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2007 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2007 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2007 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2007 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2008 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2008 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2008 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2008 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Silverado 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2009 | GMC | Sierra 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2009 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2009 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2009 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2009 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Silverado 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2010 | GMC | Sierra 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2010 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2010 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2010 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2010 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2011 | GMC | Sierra 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2011 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2011 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2011 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2011 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2012 | GMC | Sierra 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2012 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2012 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2012 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2012 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2013 | GMC | Sierra 1500 | Hybrid | 4WD | ALL | ALL | ALL |
2013 | GMC | Sierra 1500 | SL | 4WD | ALL | ALL | ALL |
2013 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2013 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2013 | GMC | Sierra 1500 | WT | 4WD | ALL | ALL | ALL |
Component List
1 BDS011558 99-03 GM 1/2 ton 5in Rear Box Kit
1 BDS021640 07-13 GM 1500/SUV 4-6in Front Box (1of2)
1 BDS021644 2007-2013 GM 1500/SUV 4-6in Front Box (2of2)
1 BDS121613 07-13 GM Front Skid Plate
1 BDS98161 07-13 GM 1500 6" Strut
2 FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Tires & Wheels
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Details
- BDS177FS
- BDS177FS
- 840416409079
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
