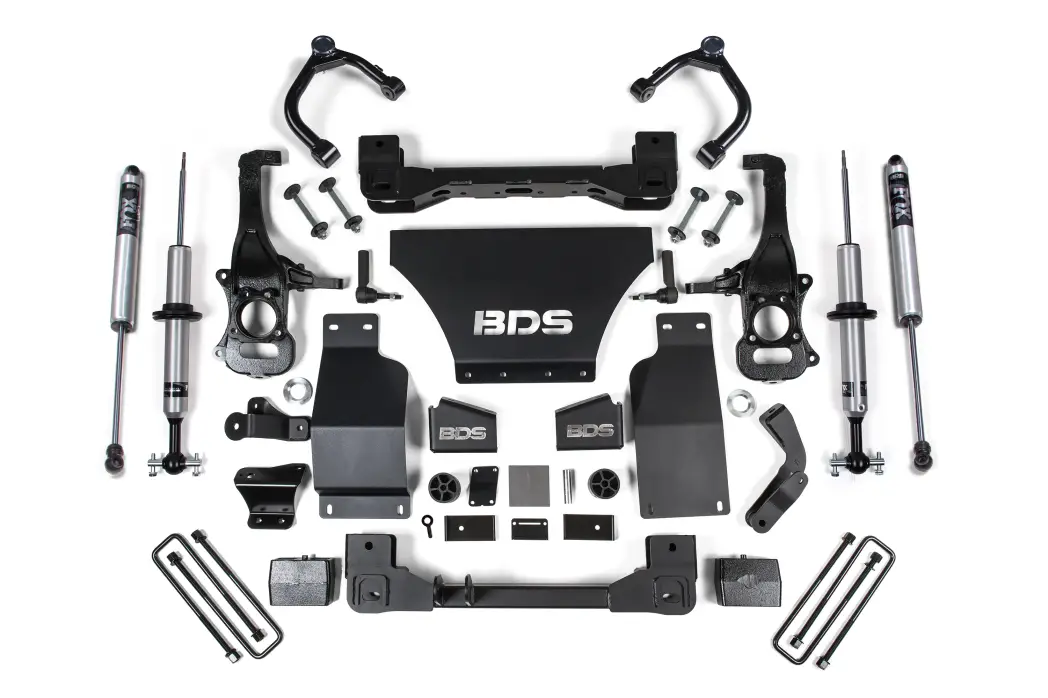

BDS1800FSR | BDS Suspension 4 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD Gas (2019-2024) | Front And Rear Fox 2.0 Performance Series Shock

4 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD Gas (2019-2024) | Front And Rear Fox 2.0 Performance Series Shock

BDS1800FSR
Pricing: $4,576.63
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 6.25 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6.25 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Front Shock Option

Strut Spacer

  • Made from heavy-duty steel that guarantees its durability
  • Maintains factory like ride quality
  • Fast and Easy to install

FOX 2.0 Performance Series

  • Custom-molded spring seat so you can reuse the stock spring and mounting hardware
  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Requires frame bracket modification
  2. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
  3. 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
  4. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
  5. 2.7L Turbo models use Diesel kit for proper skid plate fitment..
  6. If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).
  7. Will not fit models equipped with ARC

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

36mm Socket, Cut Off Wheel or Equiv., Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 2"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019ChevroletSilverado 1500Custom4WDFLEXALLALL
2019ChevroletSilverado 1500Custom4WDGASALLALL
2019ChevroletSilverado 1500High Country4WDGASALLALL
2019ChevroletSilverado 1500LT4WDGASALLALL
2019ChevroletSilverado 1500LTZ4WDGASALLALL
2019ChevroletSilverado 1500RST4WDGASALLALL
2019ChevroletSilverado 1500SSV4WDFLEXALLALL
2019ChevroletSilverado 1500SSV4WDGASALLALL
2019ChevroletSilverado 1500WT4WDGASALLALL
2019ChevroletSilverado 1500WT4WDFLEXALLALL
2019ChevroletSilverado 1500WT Cab Regular4WDALLALLALL
2019ChevroletSilverado 1500WT Doble Cabina4WDALLALLALL
2019GMCSierra 1500Base4WDFLEXALLALL
2019GMCSierra 1500Base4WDGASALLALL
2019GMCSierra 1500Elevation4WDGASALLALL
2019GMCSierra 1500SLE4WDGASALLALL
2019GMCSierra 1500SLT4WDGASALLALL
2020ChevroletSilverado 1500Custom4WDGASALLALL
2020ChevroletSilverado 1500Custom4WDFLEXALLALL
2020ChevroletSilverado 1500High Country4WDGASALLALL
2020ChevroletSilverado 1500High Country4WDFLEXALLALL
2020ChevroletSilverado 1500LT4WDFLEXALLALL
2020ChevroletSilverado 1500LT4WDGASALLALL
2020ChevroletSilverado 1500LTZ4WDGASALLALL
2020ChevroletSilverado 1500LTZ4WDFLEXALLALL
2020ChevroletSilverado 1500RST4WDGASALLALL
2020ChevroletSilverado 1500RST4WDFLEXALLALL
2020ChevroletSilverado 1500SSV4WDGASALLALL
2020ChevroletSilverado 1500SSV4WDFLEXALLALL
2020ChevroletSilverado 1500WT4WDGASALLALL
2020ChevroletSilverado 1500WT4WDFLEXALLALL
2020ChevroletSilverado 1500WT Cab Regular4WDFLEXALLALL
2020ChevroletSilverado 1500WT Cab Regular4WDGASALLALL
2020ChevroletSilverado 1500WT Doble Cabina4WDGASALLALL
2020ChevroletSilverado 1500WT Doble Cabina4WDFLEXALLALL
2020GMCSierra 1500Base4WDGASALLALL
2020GMCSierra 1500Base4WDFLEXALLALL
2020GMCSierra 1500Elevation4WDFLEXALLALL
2020GMCSierra 1500Elevation4WDGASALLALL
2020GMCSierra 1500SLE4WDFLEXALLALL
2020GMCSierra 1500SLE4WDGASALLALL
2020GMCSierra 1500SLT4WDFLEXALLALL
2020GMCSierra 1500SLT4WDGASALLALL
2021ChevroletSilverado 1500Custom4WDGASALLALL
2021ChevroletSilverado 1500Custom4WDFLEXALLALL
2021ChevroletSilverado 1500High Country4WDFLEXALLALL
2021ChevroletSilverado 1500High Country4WDGASALLALL
2021ChevroletSilverado 1500LT4WDFLEXALLALL
2021ChevroletSilverado 1500LT4WDGASALLALL
2021ChevroletSilverado 1500LTZ4WDFLEXALLALL
2021ChevroletSilverado 1500LTZ4WDGASALLALL
2021ChevroletSilverado 1500RST4WDGASALLALL
2021ChevroletSilverado 1500RST4WDFLEXALLALL
2021ChevroletSilverado 1500SSV4WDFLEXALLALL
2021ChevroletSilverado 1500SSV4WDGASALLALL
2021ChevroletSilverado 1500WT4WDGASALLALL
2021ChevroletSilverado 1500WT4WDFLEXALLALL
2021GMCSierra 1500Base4WDGASALLALL
2021GMCSierra 1500Base4WDFLEXALLALL
2021GMCSierra 1500Elevation4WDFLEXALLALL
2021GMCSierra 1500Elevation4WDGASALLALL
2021GMCSierra 1500SLE4WDGASALLALL
2021GMCSierra 1500SLE4WDFLEXALLALL
2021GMCSierra 1500SLT4WDGASALLALL
2021GMCSierra 1500SLT4WDFLEXALLALL
2022ChevroletSilverado 1500Custom4WDGASALLALL
2022ChevroletSilverado 1500High Country4WDGASALLALL
2022ChevroletSilverado 1500LT4WDGASALLALL
2022ChevroletSilverado 1500LTZ4WDGASALLALL
2022ChevroletSilverado 1500RST4WDGASALLALL
2022ChevroletSilverado 1500WT4WDGASALLALL
2022GMCSierra 1500Elevation4WDGASALLALL
2022GMCSierra 1500Pro4WDGASALLALL
2022GMCSierra 1500SLE4WDGASALLALL
2022GMCSierra 1500SLT4WDGASALLALL
2023ChevroletSilverado 1500Base4WDFLEXALLALL
2023ChevroletSilverado 1500Base4WDGASALLALL
2023ChevroletSilverado 1500Custom4WDGASALLALL
2023ChevroletSilverado 1500Custom4WDFLEXALLALL
2023ChevroletSilverado 1500High Country4WDGASALLALL
2023ChevroletSilverado 1500High Country4WDFLEXALLALL
2023ChevroletSilverado 1500LT4WDGASALLALL
2023ChevroletSilverado 1500LT4WDFLEXALLALL
2023ChevroletSilverado 1500LTZ4WDGASALLALL
2023ChevroletSilverado 1500LTZ4WDFLEXALLALL
2023ChevroletSilverado 1500PPV4WDFLEXALLALL
2023ChevroletSilverado 1500PPV4WDGASALLALL
2023ChevroletSilverado 1500RST4WDFLEXALLALL
2023ChevroletSilverado 1500RST4WDGASALLALL
2023ChevroletSilverado 1500WT4WDGASALLALL
2023ChevroletSilverado 1500WT4WDFLEXALLALL
2023GMCSierra 1500Elevation4WDGASALLALL
2023GMCSierra 1500Elevation4WDFLEXALLALL
2023GMCSierra 1500Pro4WDGASALLALL
2023GMCSierra 1500Pro4WDFLEXALLALL
2023GMCSierra 1500SLE4WDGASALLALL
2023GMCSierra 1500SLE4WDFLEXALLALL
2023GMCSierra 1500SLT4WDGASALLALL
2024ChevroletSilverado 1500Custom4WDGASALLALL
2024ChevroletSilverado 1500LT4WDGASALLALL
2024ChevroletSilverado 1500LTZ4WDGASALLALL
2024ChevroletSilverado 1500PPV4WDGASALLALL
2024ChevroletSilverado 1500RST4WDGASALLALL
2024ChevroletSilverado 1500WT4WDGASALLALL
2024GMCSierra 1500Elevation4WDGASALLALL
2024GMCSierra 1500Pro4WDGASALLALL
2024GMCSierra 1500SLE4WDGASALLALL
2024GMCSierra 1500SLT4WDGASALLALL

Component List

1 BDS021664 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4" and 6" Compatible)
1 BDS021665 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4" and 6" Compatible
1 BDS021682 2019-2024 Chevy/GMC 1500 6" Front Box Kit 1of2
1 BDS021683 2019-2024 Chevy/GMC 1500 6" Front Box Kit 2of2
1 BDS011316 2019-2024 Chevy/GMC 1500 4" Rear Box Kit
2 FOX98662000 Kit: BDS, 2019-2024 Chevy 1500, Front C/O, Snap Ring, PS, 2.0, IFP, 5.8", 4.5 & 6.5" Lift
2 FOX98224758 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 20 x 9 and 6.25 in. Backspace
35 x 12.5 with 20 x 9 and 6.25 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
