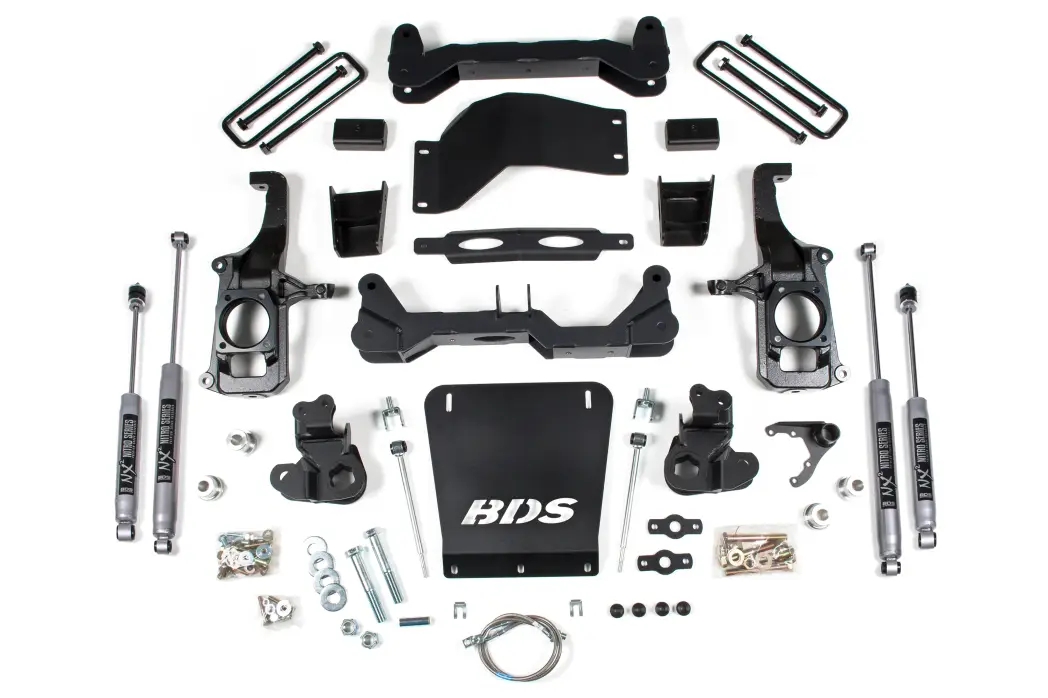

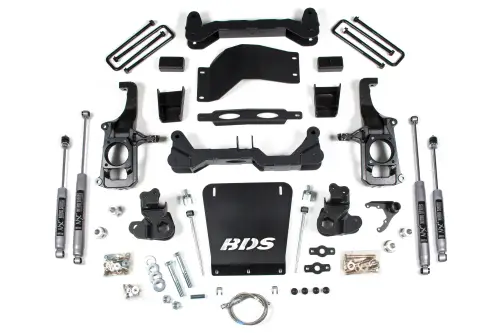

BDS1819H | BDS Suspension 4.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD (2011-2019) | Rear Lift 3 Inch Block Kit Lift Without Overload, NX2 Nitro Series Shocks

4.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD (2011-2019) | Rear Lift 3 Inch Block Kit Lift Without Overload, NX2 Nitro Series Shocks

BDS1819H
Pricing: $3,381.62
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Torsion Bar Tool required to load/unload the torsion bars.
  2. Stock 17" & 18" wheels cannot be reinstalled.
  3. Stock 20" wheels cannot be reinstalled on 2015-2019 models
  4. Factory dually wheels cannot be reinstalled.
  5. Models with two-piece rear driveshaft may require #121612.
  6. Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
  7. Depending on the specific wheel and tire combination trimming may be required for 35x12.50s

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut Off Wheel or Equiv., Reciprocating Saw, Torsion Bar Unloading Tool

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4.5"
  • Rear Lift Height : 3"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2011ChevroletSilverado 2500 HDALLALLALLALLALL
2011ChevroletSilverado 3500 HDALLALLALLALLALL
2011GMCSierra 2500 HDALLALLALLALLALL
2011GMCSierra 3500 HDALLALLALLALLALL
2012ChevroletSilverado 2500 HDALLALLALLALLALL
2012ChevroletSilverado 3500 HDALLALLALLALLALL
2012GMCSierra 2500 HDALLALLALLALLALL
2012GMCSierra 3500 HDALLALLALLALLALL
2013ChevroletSilverado 2500 HDALLALLALLALLALL
2013ChevroletSilverado 3500 HDALLALLALLALLALL
2013GMCSierra 2500 HDALLALLALLALLALL
2013GMCSierra 3500 HDALLALLALLALLALL
2014ChevroletSilverado 2500 HDALLALLALLALLALL
2014ChevroletSilverado 3500 HDALLALLALLALLALL
2014GMCSierra 2500 HDALLALLALLALLALL
2014GMCSierra 3500 HDALLALLALLALLALL
2015ChevroletSilverado 2500 HDALLALLALLALLALL
2015ChevroletSilverado 3500 HDALLALLALLALLALL
2015GMCSierra 2500 HDALLALLALLALLALL
2015GMCSierra 3500 HDALLALLALLALLALL
2016ChevroletSilverado 2500 HDALLALLALLALLALL
2016ChevroletSilverado 3500 HDALLALLALLALLALL
2016GMCSierra 2500 HDALLALLALLALLALL
2016GMCSierra 3500 HDALLALLALLALLALL
2017ChevroletSilverado 2500 HDALLALLALLALLALL
2017ChevroletSilverado 3500 HDALLALLALLALLALL
2017GMCSierra 2500 HDALLALLALLALLALL
2017GMCSierra 3500 HDALLALLALLALLALL
2018ChevroletSilverado 2500 HDALLALLALLALLALL
2018ChevroletSilverado 3500 HDALLALLALLALLALL
2018GMCSierra 2500 HDALLALLALLALLALL
2018GMCSierra 3500 HDALLALLALLALLALL
2019ChevroletSilverado 2500 HDALLALLALLALLALL
2019ChevroletSilverado 3500 HDALLALLALLALLALL
2019GMCSierra 2500 HDALLALLALLALLALL
2019GMCSierra 3500 HDALLALLALLALLALL

Component List

1 BDS021454 11-15 GM HD 4.5in Torsion Bar System
1 BDS021650 11 GM HD 4.5-6.5in System (1of4)
1 BDS021651 11 GM HD 4.5-6.5in System (2of4)
1 BDS021652 11 GM HD 4.5-6.5in System (3of4)
1 BDS021653 11 GM HD 4.5-6.5in System (4of4)
1 BDS121650 2001-2019 GM HD Front Skid Plate Box Kit
2 BDS85613 Shock- 22.20 x 13.35 x 2 - S50/EB1
1 BDS011318 11 HD 3in Rear w/o Top Overload
2 BDS85769 Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 8 and 4.625 in. Backspace
35 x 12.5 with 18 x 9 and 4.625 in. Backspace
35 x 12.5 with 20 x 9 and 6 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
