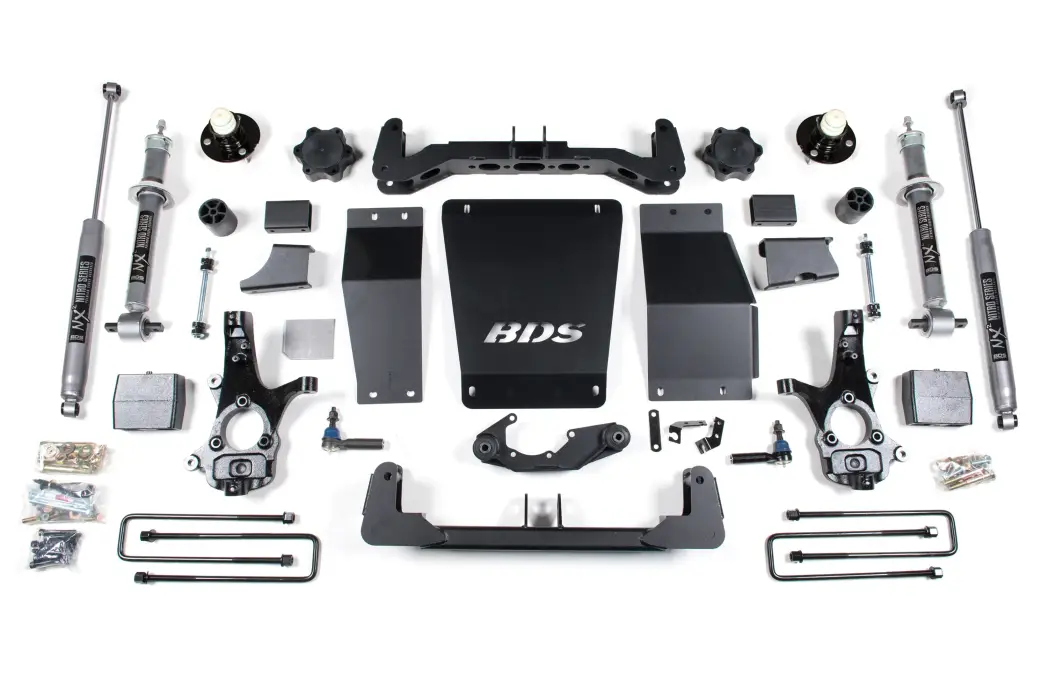

BDS711H | BDS Suspension 6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD (2014-2018) | Factory Control Arm Is Aluminum/Stamped Steel, Rear Block Kit Lift, Rear NX2 Nitro Series Shock

6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD (2014-2018) | Factory Control Arm Is Aluminum/Stamped Steel, Rear Block Kit Lift, Rear NX2 Nitro Series Shock

BDS711H
Pricing: $2,894.76
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The BDS 6-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 34 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Shock Option

5 Inch Block Kit

  • The 5" rear block replaces the factory 1-1/4" block
  • Nets 4" of rear lift to level the vehicle.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.

  1. Strut compressor required
  2. Requires frame bracket modification
  3. Requires differential modification to clear electric power steering
  4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
  5. If choosing the 5" rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
  6. All wheel drive models require drive line modification.

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014ChevroletSilverado 1500High Country4WDALLALLALL
2014ChevroletSilverado 1500LT4WDALLALLALL
2014ChevroletSilverado 1500LTZ4WDALLALLALL
2014ChevroletSilverado 1500WT4WDALLALLALL
2014GMCSierra 1500ALL4WDALLALLALL
2015ChevroletSilverado 1500ALL4WDALLALLALL
2015GMCSierra 1500ALL4WDALLALLALL
2016ChevroletSilverado 1500Custom4WDALLALLALL
2016ChevroletSilverado 1500High Country4WDALLALLALL
2016ChevroletSilverado 1500LS4WDALLALLALL
2016ChevroletSilverado 1500LT4WDALLALLALL
2016ChevroletSilverado 1500LTZ4WDALLALLALL
2016ChevroletSilverado 1500SSV4WDALLALLALL
2016ChevroletSilverado 1500WT4WDALLALLALL
2016GMCSierra 1500ALL4WDALLALLALL
2017ChevroletSilverado 1500ALL4WDALLALLALL
2017GMCSierra 1500ALL4WDALLALLALL
2018ChevroletSilverado 1500ALL4WDALLALLALL
2018GMCSierra 1500ALL4WDALLALLALL

Component List

1 BDS011505 2014 Chevy 1500 5" Rear Block Kit
1 BDS021661 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped
1 BDS021662 14-18 GM 1500 - 15-19 GM SUV 1500 6" Frt Box Kit (1of2)
1 BDS021663 14-18 GM 1500 15-19 GM SUV 6" Frt Box Kit (2of2)
2 BDS85759 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
1 BDS98166 2014-2018 Chevy 1500 6" NX2 Strut Box Kit

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 8 and 4.5 in. Backspace
34 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
