BDS713H | BDS Suspension 4 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD (2014-2018) | Factory Control Arm Is Aluminum/Stamped Steel, Rear Block Kit Lift, Rear NX2 Nitro Series Shocks
4 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD (2014-2018) | Factory Control Arm Is Aluminum/Stamped Steel, Rear Block Kit Lift, Rear NX2 Nitro Series Shocks
Description
The BDS 4-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Factory Control Arm Type
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.
Rear Lift Option
5 Inch Block Kit
- The 5" rear block replaces the factory 1-1/4" block
- Nets 4" of rear lift to level the vehicle.
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Coil-Over Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
- Strut compressor required
- Requires frame bracket modification
- Requires differential modification to clear electric power steering
- Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
- All wheel drive models require drive line modification.
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment
Specification
- Front Lift Method : Cross-Member
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2014 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2014 | GMC | Sierra 1500 | ALL | 4WD | ALL | ALL | ALL |
2015 | Chevrolet | Silverado 1500 | ALL | 4WD | ALL | ALL | ALL |
2015 | GMC | Sierra 1500 | ALL | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | LS | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | SSV | 4WD | ALL | ALL | ALL |
2016 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2016 | GMC | Sierra 1500 | ALL | 4WD | ALL | ALL | ALL |
2017 | Chevrolet | Silverado 1500 | ALL | 4WD | ALL | ALL | ALL |
2017 | GMC | Sierra 1500 | ALL | 4WD | ALL | ALL | ALL |
2018 | Chevrolet | Silverado 1500 | ALL | 4WD | ALL | ALL | ALL |
2018 | GMC | Sierra 1500 | ALL | 4WD | ALL | ALL | ALL |

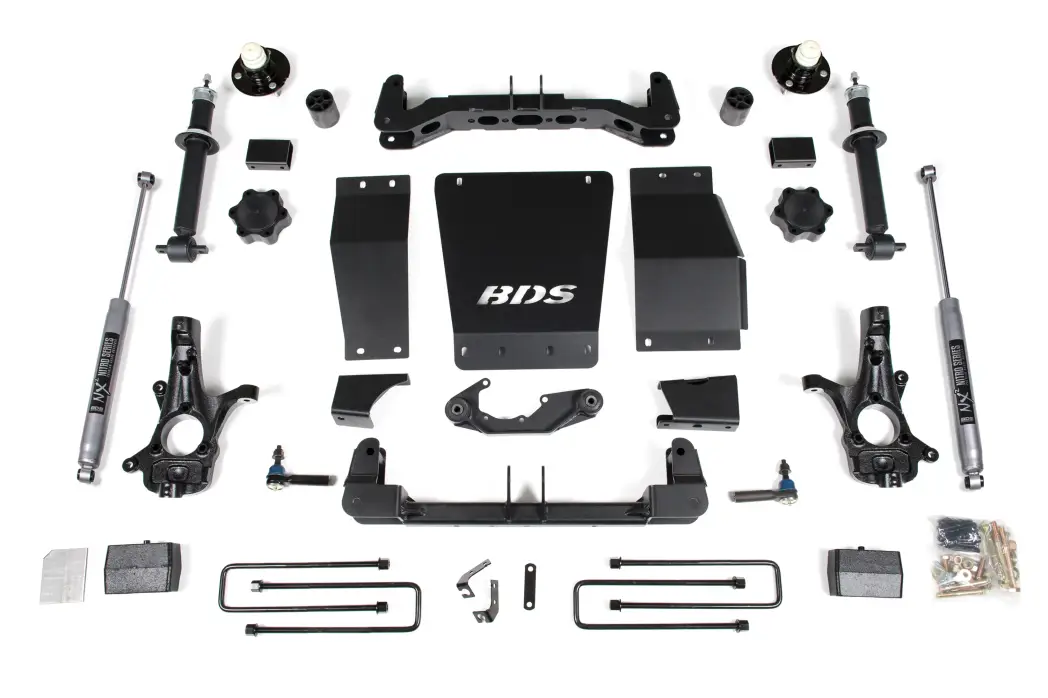

Component List
1 BDS021462 2014 Chevy 1500 4" Frt Box Kit (1of2)
1 BDS021661 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped
1 BDS021663 14-18 GM 1500 15-19 GM SUV 6" Frt Box Kit (2of2)
2 BDS85759 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
1 BDS98144 2014 Chevy 1500 4" Strut Kit
Tires & Wheels
33 x 12.5 with 17 x 9 and 5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Details
- BDS713H
- BDS713H
- 840416420234
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
