74240RED | Rough Country 3.5 Inch Lift Kit With Upper Control Arms For Toyota Tacoma 4WD (2005-2023) | Red Finish, Front M1 Struts, Rear M1 Shocks
3.5 Inch Lift Kit With Upper Control Arms For Toyota Tacoma 4WD (2005-2023) | Aluminum Finish, Front M1 Struts, Rear M1 Shocks
Description
Rough Country's 3.5in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 05-21 Toyota Tacoma.
This kit features a set of high-quality, lightweight forged aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball joint, with less stress, wear and tear.
Rough Country’s 3.5-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride quality both on and off-road. Also included are a set of loaded N3 struts and fabricated rear blocks to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for larger tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring an easy installation process that requires minor cutting and drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
Features
- Easy installation.
- Increased ground clearance.
- Maintains factory ride quality.
- Levels the front with the rear of the vehicle.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil.
- Maintains smooth, factory-like ride.
- Increased ground clearance.
- Engineered for lifted applications.
- Infinitely variable damping.
- Leak-proof piston seal.
- Massive 1 3/8in bore.
- Silver powder coat finish.
- 3-year Manufacturer's Warranty.
Optional M1 Loaded Struts
- 2-inch seamless extruded tube.
- 46mm digressive piston.
- Nitrogen-charged
- Digressive valving.
- Fast heat dissipation
- Monotube design
- Natural rubber bushings.
- Zinc plated aluminum body.
- 3-year Manufacturer's Warranty.
Optional Vertex
- 8-Stage Adjustable Damping.
- Monotube Design.
- Nitrogen-charged.
- Massive 2.5in Piston.
- 22mm Chrome-Hardened Piston Rod.
- 3-Stage Seal System.
- Heat-Treated, Alloy Bearing.
- Honed Steel Body.
- 3-year Manufacturer's Warranty.
Fitment Notes
- Requires minor cutting.
- Does NOT fit models with 5 lug wheels.
- Does NOT fit T/X Baja models.
- Does NOT fit XSP-X models.
- A carrier-bearing drop bracket is advised for trucks equipped with a 2-piece rear driveshaft. SKU: 1776BOX1.
SPECS
Application List
Fitment Notes
Requires minor cutting.
Does NOT fit models with 5 lug wheels.
Does NOT fit T/X Baja models.
Does NOT fit XSP-X models.
A carrier-bearing drop bracket is advised for trucks equipped with a 2-piece rear driveshaft. SKU: 1776BOX1.

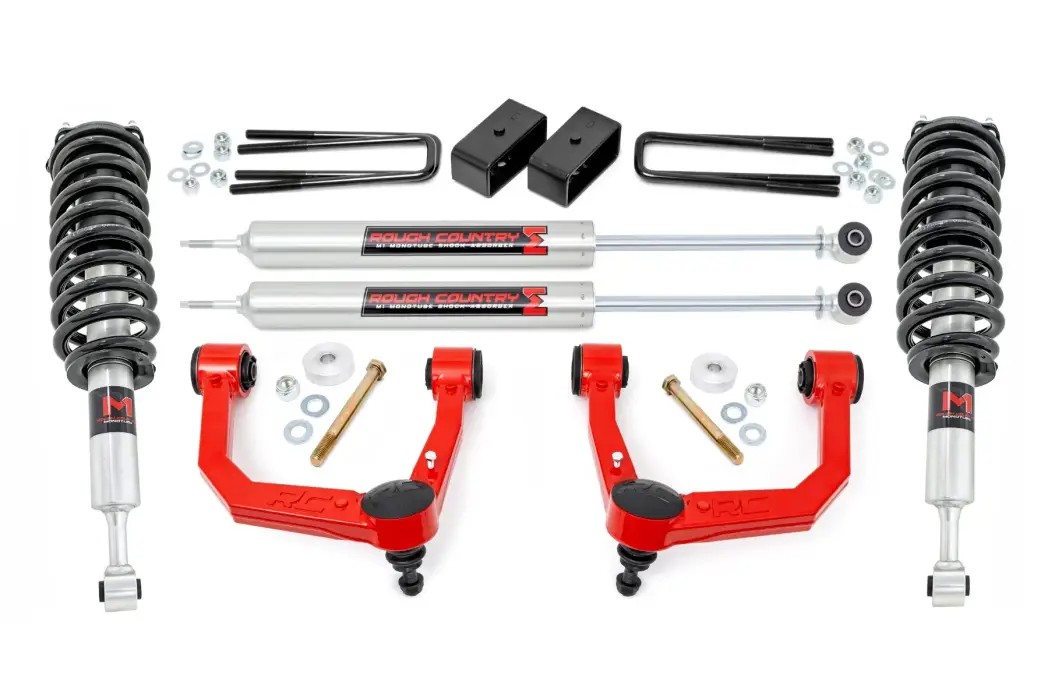

Components
(2) Upper Control Arms
(2) N3 Loaded Struts
(2) Differential Spacers
Hardware
Rear:
2in Lift Blocks
U-Bolts
Hardware
Shocks:
(2) Shocks
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
285/75R16 | Factory 16 | 6x5.5 | - | 0.25 Spacer |
285/70R17 | Factory 17 | 6x5.5 | - | 0.25 Spacer |
285/75R16 | 16x8 | 6x5.5 | +0 | Minor Trimming |
285/75R16 | 16x8 | 6x5.5 | +1 | Minor Trimming |
285/70R17 | 17x8.5 | 6x5.5 | +0 | Minor Trimming |
265/70R17 | 17x8.5 | 6x5.5 | +0 | - |
285/70R17 | 17x8.5 | 6x5.5 | +1 | Minor Trimming |
265/70R17 | 17x8.5 | 6x5.5 | +1 | - |
285/70R17 | 17x9 | 6x5.5 | -12 | Minor Trimming |
265/70R17 | 17x9 | 6x5.5 | -12 | - |
285/70R17 | 17x9 | 6x5.5 | +0 | Minor Trimming |
265/70R17 | 17x9 | 6x5.5 | +0 | - |
285/70R17 | 17x9 | 6x5.5 | +1 | Minor Trimming |
265/70R17 | 17x9 | 6x5.5 | +1 | - |
285/70R17 | 17x9 | 6x5.5 | +18 | Minor Trimming |
285/70R17 | 17x9 | 6x5.5 | +20 | Minor Trimming |
285/75R18 | 18x8.5 | 6x5.5 | +0 | - |
285/65R18 | 18x8.5 | 6x5.5 | +0 | Minor Trimming |
275/65R18 | 18x8.5 | 6x5.5 | +0 | - |
265/65R18 | 18x8.5 | 6x5.5 | +0 | - |
285/75R18 | 18x8.5 | 6x5.5 | +1 | - |
285/65R18 | 18x8.5 | 6x5.5 | +1 | Minor Trimming |
275/65R18 | 18x8.5 | 6x5.5 | +1 | - |
265/65R18 | 18x8.5 | 6x5.5 | +1 | - |
285/65R18 | 18x9 | 6x5.5 | -12 | Minor Trimming |
275/65R18 | 18x9 | 6x5.5 | -12 | Minor Trimming |
265/65R18 | 18x9 | 6x5.5 | -12 | - |
285/65R18 | 18x9 | 6x5.5 | +0 | Minor Trimming |
275/65R18 | 18x9 | 6x5.5 | +0 | - |
265/65R18 | 18x9 | 6x5.5 | +0 | - |
285/65R18 | 18x9 | 6x5.5 | +1 | Minor Trimming |
275/65R18 | 18x9 | 6x5.5 | +1 | - |
265/65R18 | 18x9 | 6x5.5 | +1 | - |
285/65R18 | 18x9 | 6x5.5 | +18 | Minor Trimming |
275/65R18 | 18x9 | 6x5.5 | +18 | - |
265/65R18 | 18x9 | 6x5.5 | +18 | - |
285/65R18 | 18x9 | 6x5.5 | +19 | Minor Trimming |
265/65R18 | 18x9 | 6x5.5 | +19 | - |
285/65R18 | 18x9 | 6x5.5 | +20 | Minor Trimming |
275/65R18 | 18x9 | 6x5.5 | +20 | - |
265/65R18 | 18x9 | 6x5.5 | +20 | - |
285/65R18 | 18x10 | 6x5.5 | -24 | Trimming Required |
275/65R18 | 18x10 | 6x5.5 | -24 | Trimming Required |
285/55R20 | 20x9 | 6x5.5 | -12 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +18 | Minor Trimming |
285/55R20 | 20x9 | 6x5.5 | +20 | Minor Trimming |
285/55R20 | 20x10 | 6x5.5 | -25 | Trimming Required |
285/55R20 | 20x10 | 6x5.5 | -24 | Trimming Required |
285/55R20 | 20x10 | 6x5.5 | -19 | Trimming Required |
285/55R20 | 20x10 | 6x5.5 | -18 | Trimming Required |
285/55R22 | 22x10 | 6x5.5 | -25 | Trimming Required |
285/55R22 | 22x10 | 6x5.5 | -24 | Trimming Required |
285/55R22 | 22x10 | 6x5.5 | -19 | Trimming Required |
285/55R22 | 22x10 | 6x5.5 | -18 | Trimming Required |
Details
- 74240RED
- 74240RED
- 840269940675
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W14.0000” x H6.0000” x L25.0000”
- Free Ground Shipping | Exclusions Apply*
