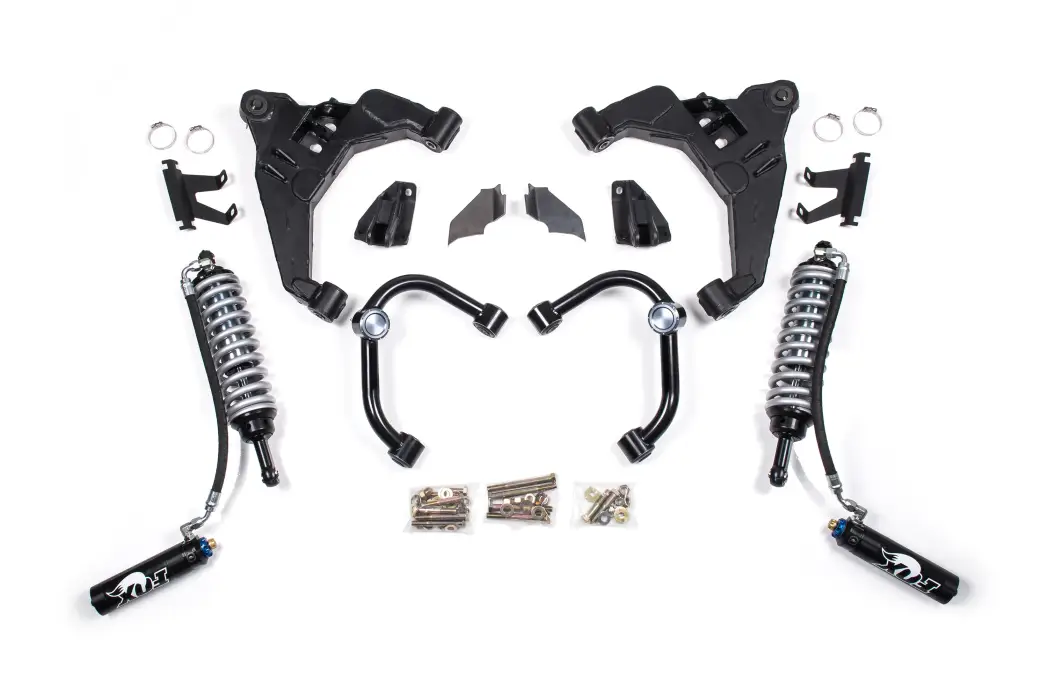

BDS735FDSC | BDS Suspension 6.5 Inch Lift Kit With Fox 2.5 Coil Over Conversion Upgrade Factory Series For Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 4WD (2011-2019) | Diesel

• FOX 2.5 Coilovers w/ Remote DSC Adjustment
• Heavy duty tubular UCAs to improve travel
• Fully Boxed and Gusseted LCAs
• Next Level Performance On & Offroad
• Compatible with existing 4.5" and 6.5" BDS Lifts
• Easy Installation (Only minor welding for gusset)

FOX 2.5 Coil-Overs

FOX 2.5 Factory DSC shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. For use with 6.5" high clearance lift kits only.
2. Not approved for use with other brand lift kits or as a stand-alone upgrade.
3. The system cannot be set lower than 6.5" as it will cause alignment issues.
